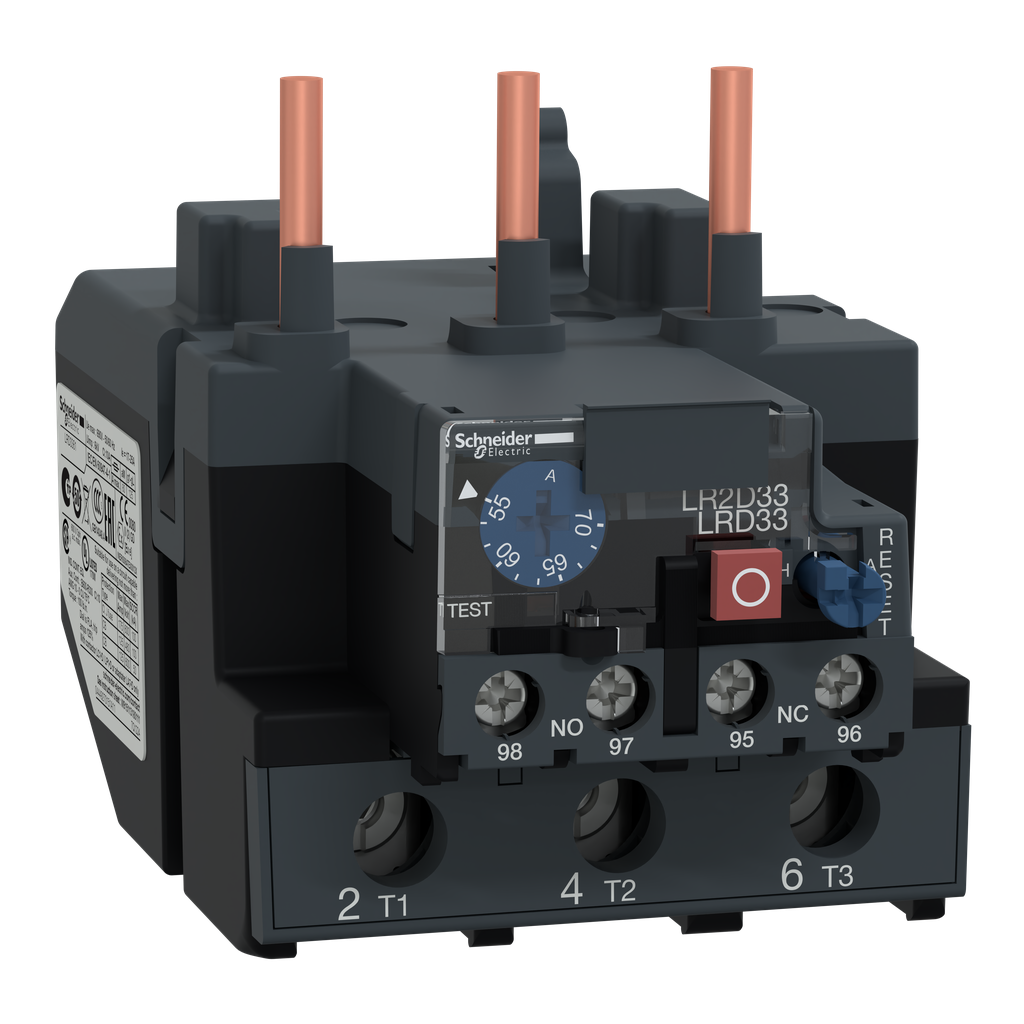

Schneider Electric LRD3361 Overload Relay 55 to 70 Amp 3-Pole

SKU: LRD3361
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$157.39
$157.39
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Schneider Electric LRD3361 Overload Relay is a critical component for motor protection in industrial settings. This relay is designed to work with TeSys D contactors, protecting motors by detecting and disconnecting power during overcurrent conditions.

  • Adjustable trip current rating from 55 to 70 amperes
  • Complies with multiple standards (IEC, UL, CSA, etc.)
  • Green Premium Compliant (RoHs/Reach)

Product Highlights

This overload relay features a differential thermal mechanism that offers reliable motor protection by minimizing damage to motor windings through efficient power disconnection during an overcurrent. It’s compatible with LC1D65 to LC1D80 contactors for seamless integration into motor control systems.

Product Information

Standard Information

  • Catalog Number: LRD3361
  • Brand: Schneider Electric
  • Country of Origin: France
  • Warranty Length: 18 months

Technical Specifications

  • Current Range: 55 to 70A
  • Number of Poles: 3
  • Trip Class: 10
  • Control Type: Red push-button stop, Blue push-button reset
  • Voltage: 1000 Volt
  • Mounting Support: Plate, Rail, Under Contactor
  • Standards: IEC, UL, CSA, ATEX, etc.
  • Dimensions: Depth 4.76 in, Width 2.95 in, Height 4.84 in
  • Weight: 1.12 lbs
Schneider Electric LRD3361 Overload Relay 55 to 70 Amp 3-Pole

Vendor: SCHNEIDER ELECTRIC

Schneider Electric LRD3361 Overload Relay 55 to 70 Amp 3-Pole

$157.39

Vendor: SCHNEIDER ELECTRIC

Schneider Electric LRD3361 Overload Relay 55 to 70 Amp 3-Pole

$157.39
