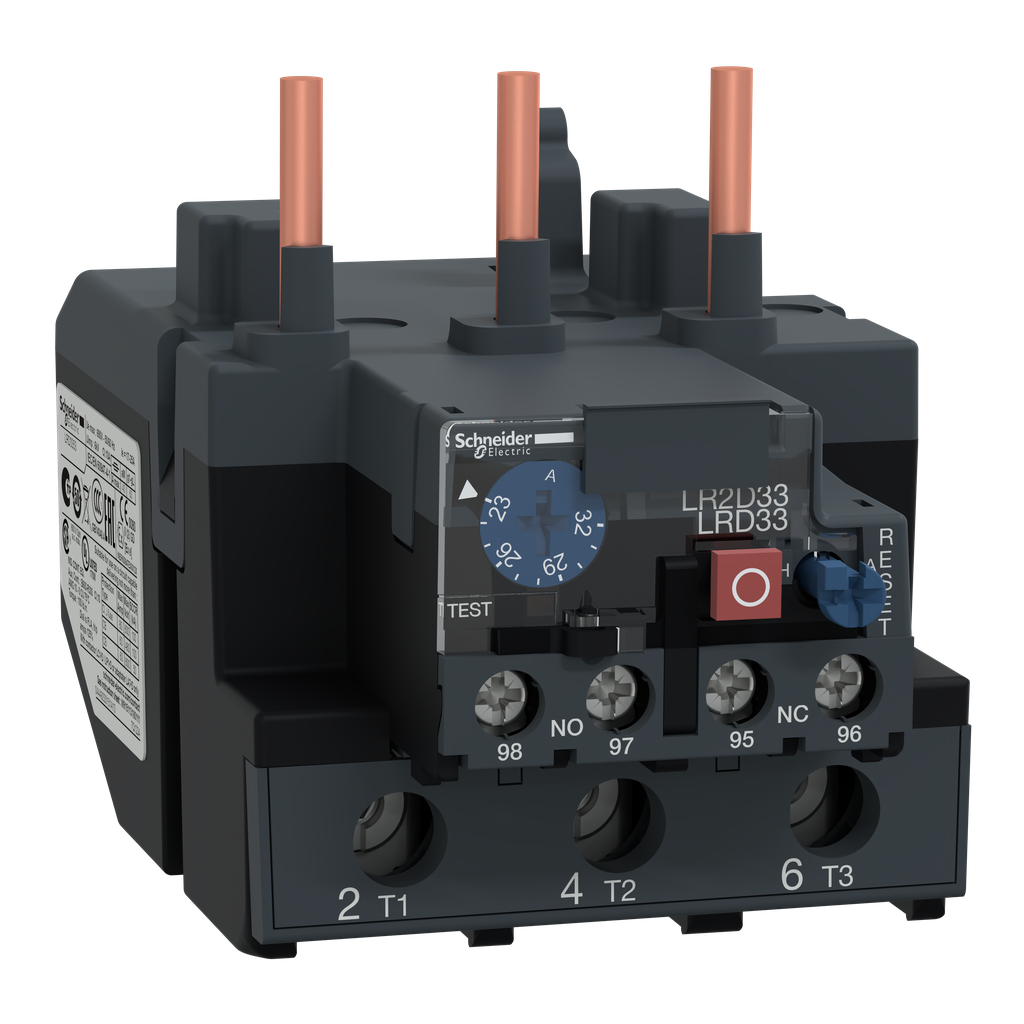

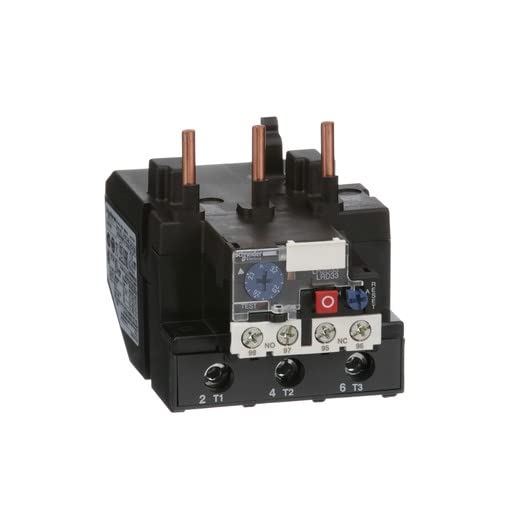

Schneider Electric LRD3353 Thermal Overload Relay 23-32A 690VAC

Product Description

Integrate reliable motor protection with the Schneider Electric LRD3353 Thermal Overload Relay, designed for a current range of 23 to 32 amps and compatible with a voltage up to 690 volts. Ideal for safeguarding motors in industrial environments, this relay operates on a three-pole system and includes a manual or automatic reset option.

• Thermal and magnetic protection ensures immediate response to current overload.
• Robust and compact design facilitates easy installation in confined spaces.
• Compliant with multiple international standards, including CSA, IEC, and UL, ensuring global usability.

Product Highlights

The Schneider Electric LRD3353 is engineered to protect electric motors from overcurrents that can cause costly damages. It features a differential mechanism highly sensitive to phase loss conditions, enhancing motor safety.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD3353

Technical Specifications

• Voltage Rating: 690 Volts
• Current Rating: 23 to 32 Amps
• Mounting Type: Din rail
• Number of Poles: 3
• Reset Type: Manual or Auto
• Certifications: CSA, IEC, UL
