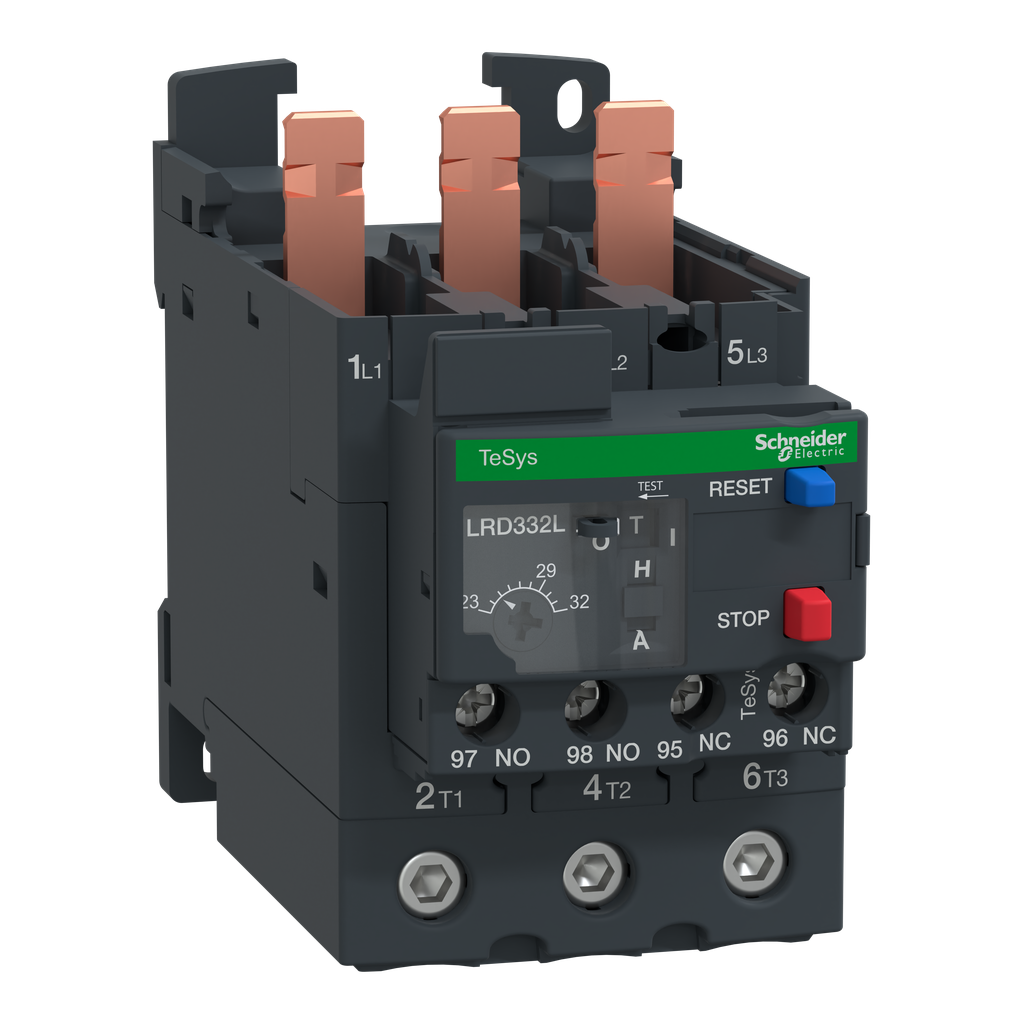

Schneider Electric LRD332L Square D 600 Volt 23 to 32 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD332L is a thermal overload relay for three-phase motors. It operates at 600 volts and has a thermal setting range of twenty-three to thirty-two amps. This relay protects motors up to fifteen kilowatts at four hundred volts. Features include a thermal adjustment dial, a reset selector, and auxiliary contacts for fault signaling.

• Thermal overload protection for three-phase motors
• Adjustable settings range from twenty-three to thirty-two amps
• Compatible with contactors LC1D40A-D80A

Product Highlights

The LRD332L relay provides reliable motor protection with phase failure detection and is suitable for various applications. It is mounted on a DIN rail or can be screw-fixed separately from the contactor, enhancing installation flexibility.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: LRD332L
• Voltage: 690 Volt
• Current Rating: 32 Amps
• Number of Poles: 3 Pole
• Weight: 0.83 lb
• Height: 123 mm
• Width: 55 mm
• Depth: 123 mm
