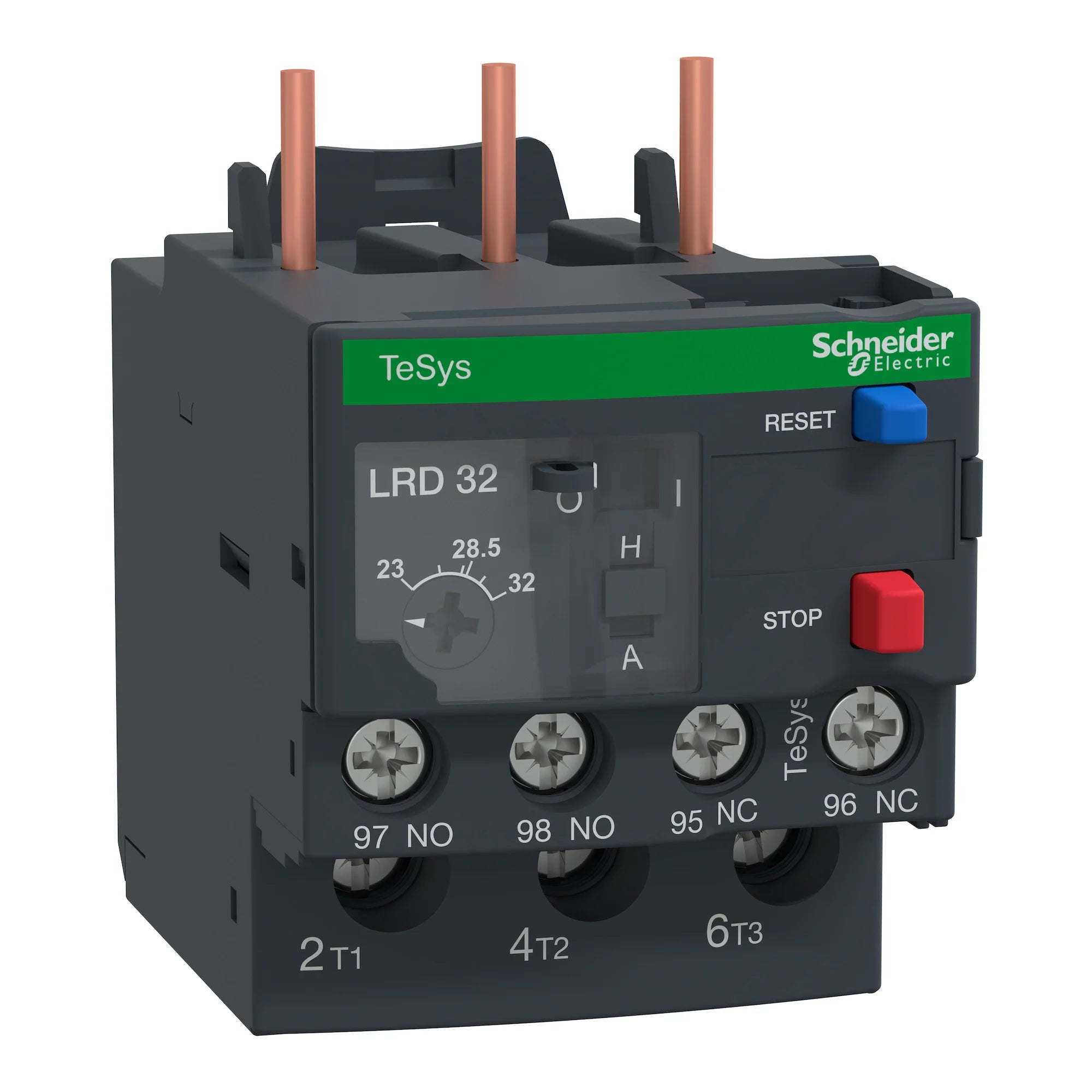

Schneider Electric LRD32L6 TeSys Deca Thermal Overload Relays - 23...32 A - Class 20

Product Description

Schneider Electric LRD32L6 is a thermal overload relay for motor protection. It is rated for thirty-two amperes at six hundred ninety volts. The relay features a thermal setting range from twenty-three to thirty-two amperes and has a tripping class of 20, designed specifically for three-phase motors with a power rating of fifteen kilowatts at four hundred volts.

• Designed for three-phase motor protection.
• Thermal adjustment dial and reset options.
• Compatible with three-pole contactors LC1D25-D38.

Product Highlights

The LRD32L6 includes features such as load unbalance detection and phase failure protection. It has a manual and automatic reset selector, along with a test selector for simulation of tripping. The design is certified by various standards, ensuring compliance across multiple applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD32L6

Technical Specifications

• Catalog Number: LRD32L6
• Manufacturer: Schneider Electric
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: United States
• Made in USA: Yes
• RoHS URL: RoHS Compliance
• GTIN: 03606480609879
