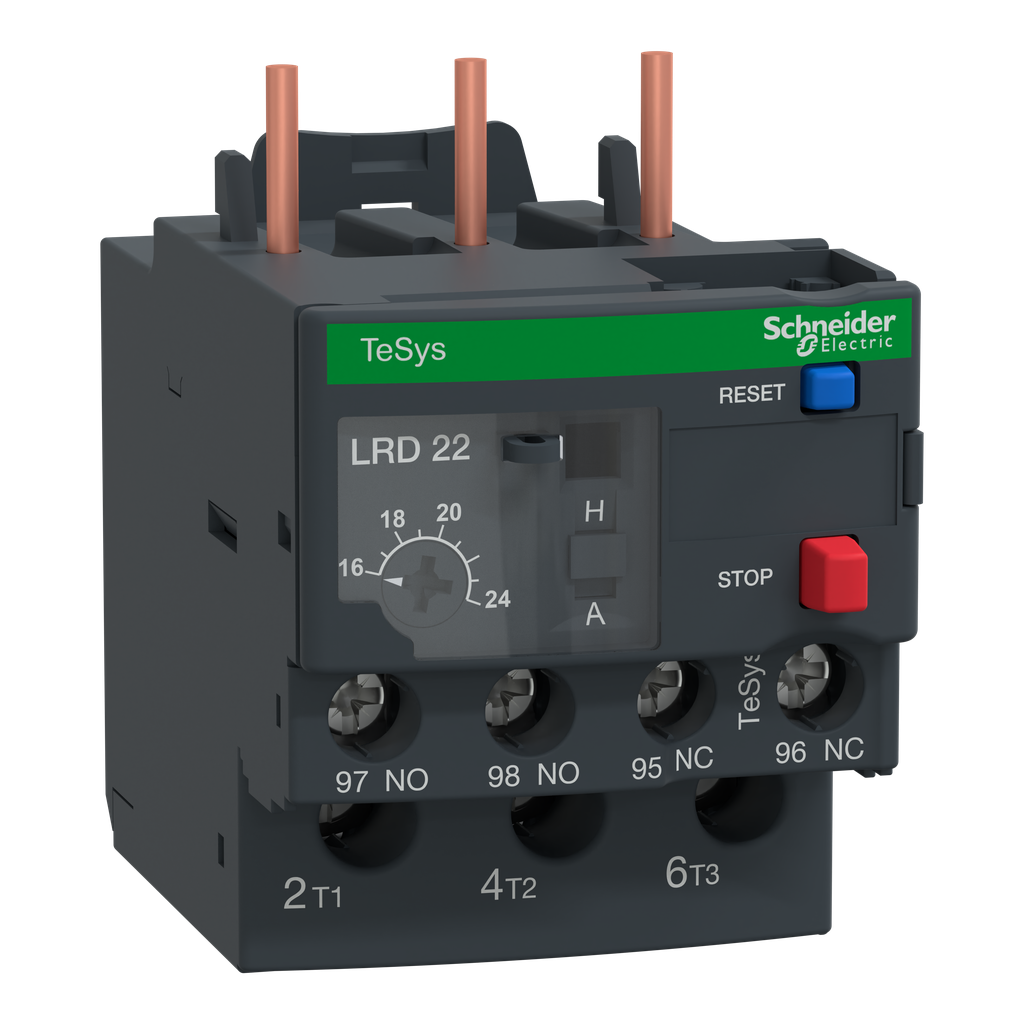

Schneider Electric LRD22L Thermal Overload Relay 17-24 AMP

Product Description

The Schneider Electric LRD22L is a thermal overload relay designed to protect motors in the range of seventeen to twenty-four amperes. It is suitable for use with TeSys D contactors, providing reliable motor protection from overload scenarios and phase unbalance events. The LRD22L can handle motors rated up to eleven kilowatts at four hundred volts, ensuring safe operation across various applications. Features include a manual test and reset buttons, automatic reset function, and an auxiliary trip contact with a flag indicator for clear status visibility. This relay is compact, measuring forty-five millimeters in width, and is optimized for direct mounting on TeSys D contactors.

• Protects motors rated up to eleven kilowatts
• Direct mounting on TeSys D contactors
• Manual and automatic reset options available

Product Highlights

Ideal for various industrial applications, the Schneider Electric LRD22L enhances motor control and safety.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LRD22L
• Voltage: 690 Volt
• Current Range: 17 to 24 A
• Trip Class: 20
• Size: 45 mm width
• Weight: 0.32 lb
• Height: 66 mm
• Depth: 76 mm
