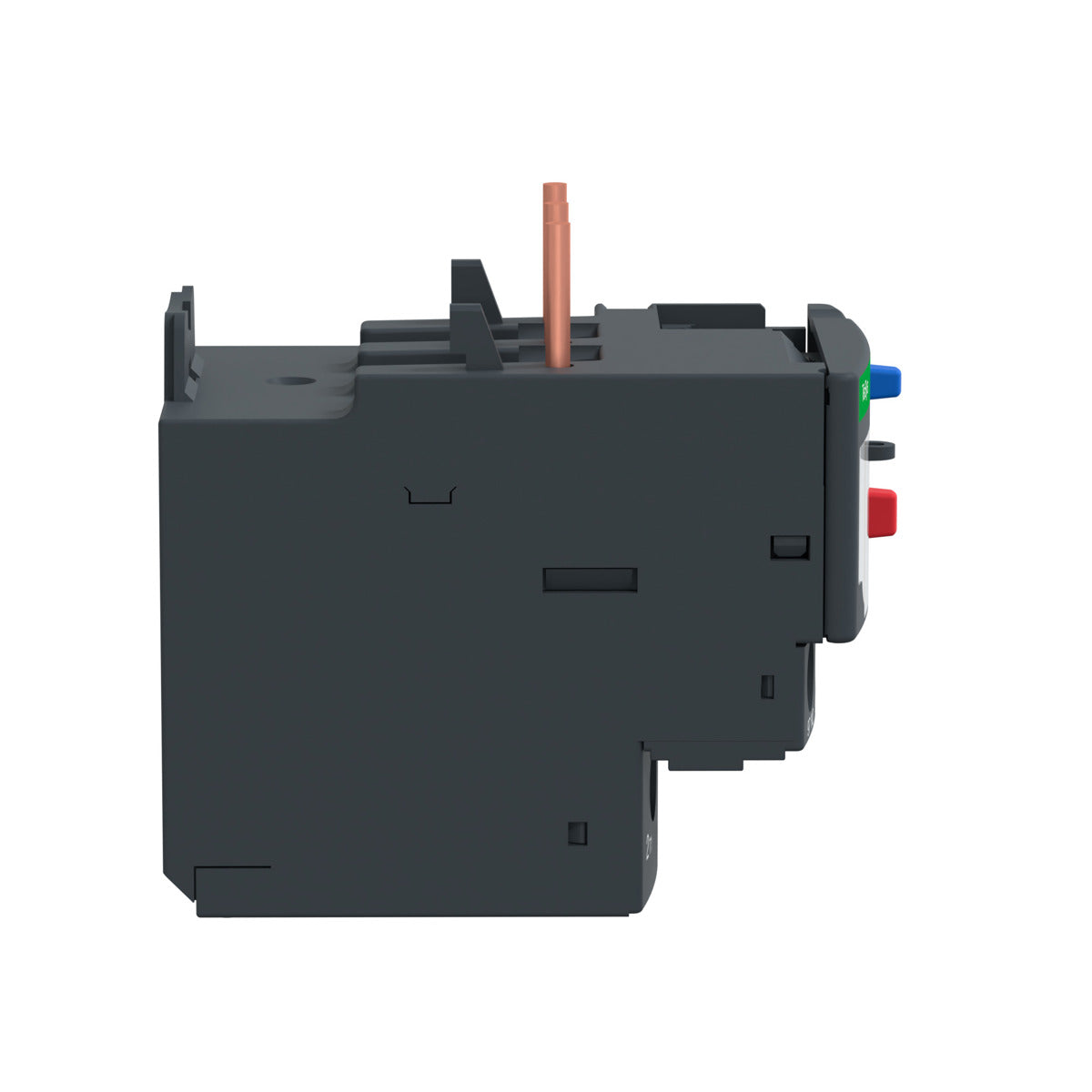

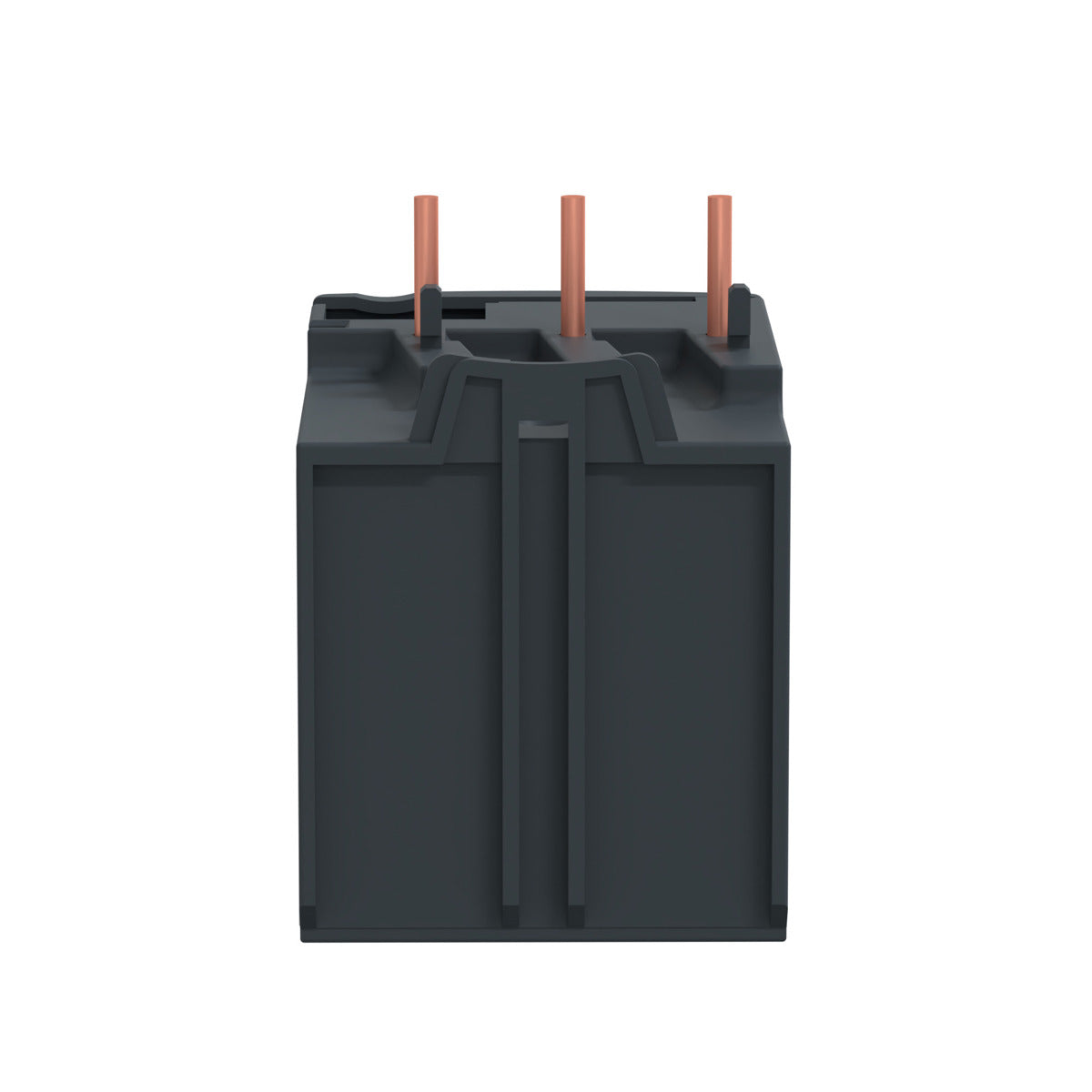

Schneider Electric LRD226 TeSys Deca thermal overload relay 24A 690V

Product Description

The Schneider Electric LRD226 is a TeSys thermal overload relay rated for 24 Amperes at 690 Volts. It is designed to protect three-phase motors of up to eleven kilowatts at four hundred volts.

• Thermal setting range: 16 to 24 Amperes
• Tripping class: 10A
• Includes phase failure and load unbalance detection features

Product Highlights

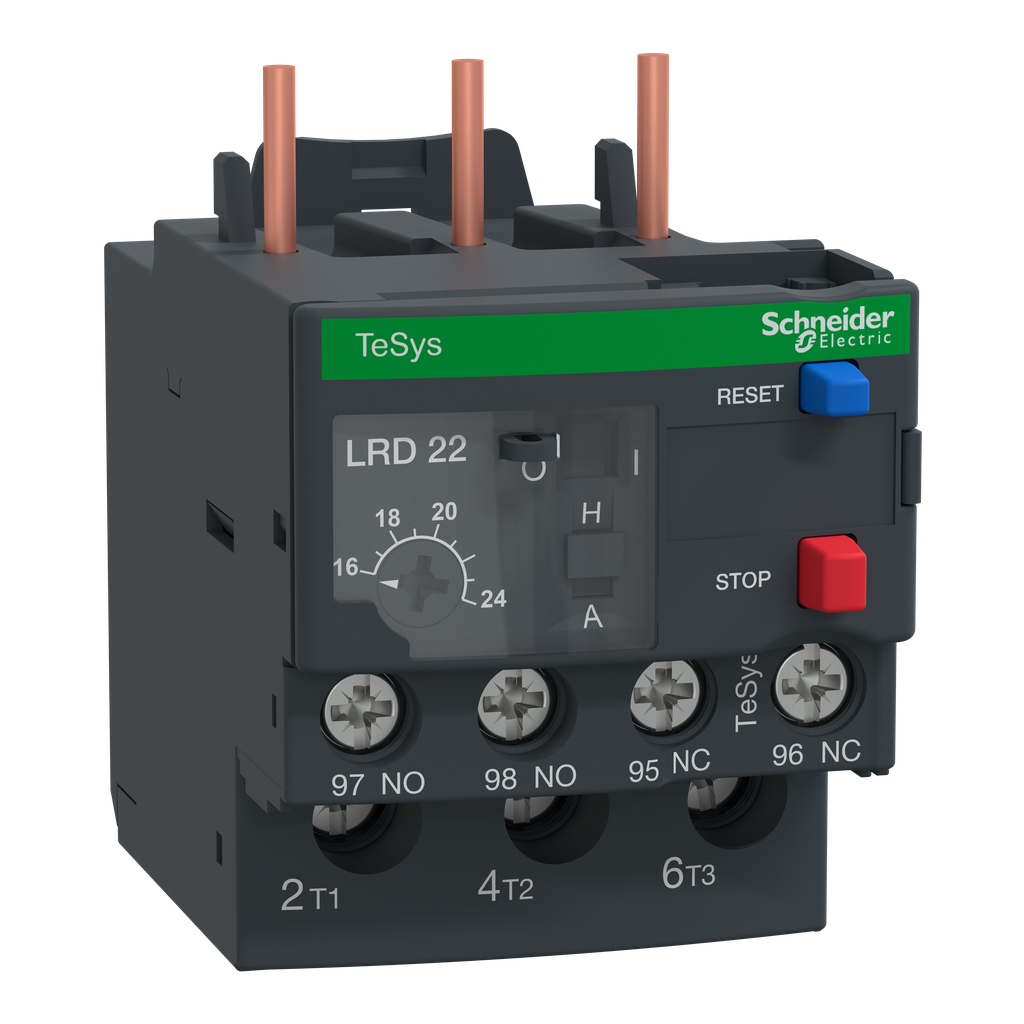

This relay is equipped with a thermal adjustment dial and a selector for manual or automatic reset. Testing features include a simulation of tripping, along with reset and stop buttons. It has a flag indicator and two auxiliary contacts (one normally open and one normally closed) for fault signaling. The settings are protected by a transparent cover which can be locked for security.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LRD226

Technical Specifications

• Voltage: 690 Volt
• Weight: 0.27 lb
• Depth: 70 mm
• Width: 45 mm
• Height: 66 mm
• Country of Origin: France
• Warranty Length: 18 months
• Operating Temperature: -20 to 60 degrees C (without derating)
