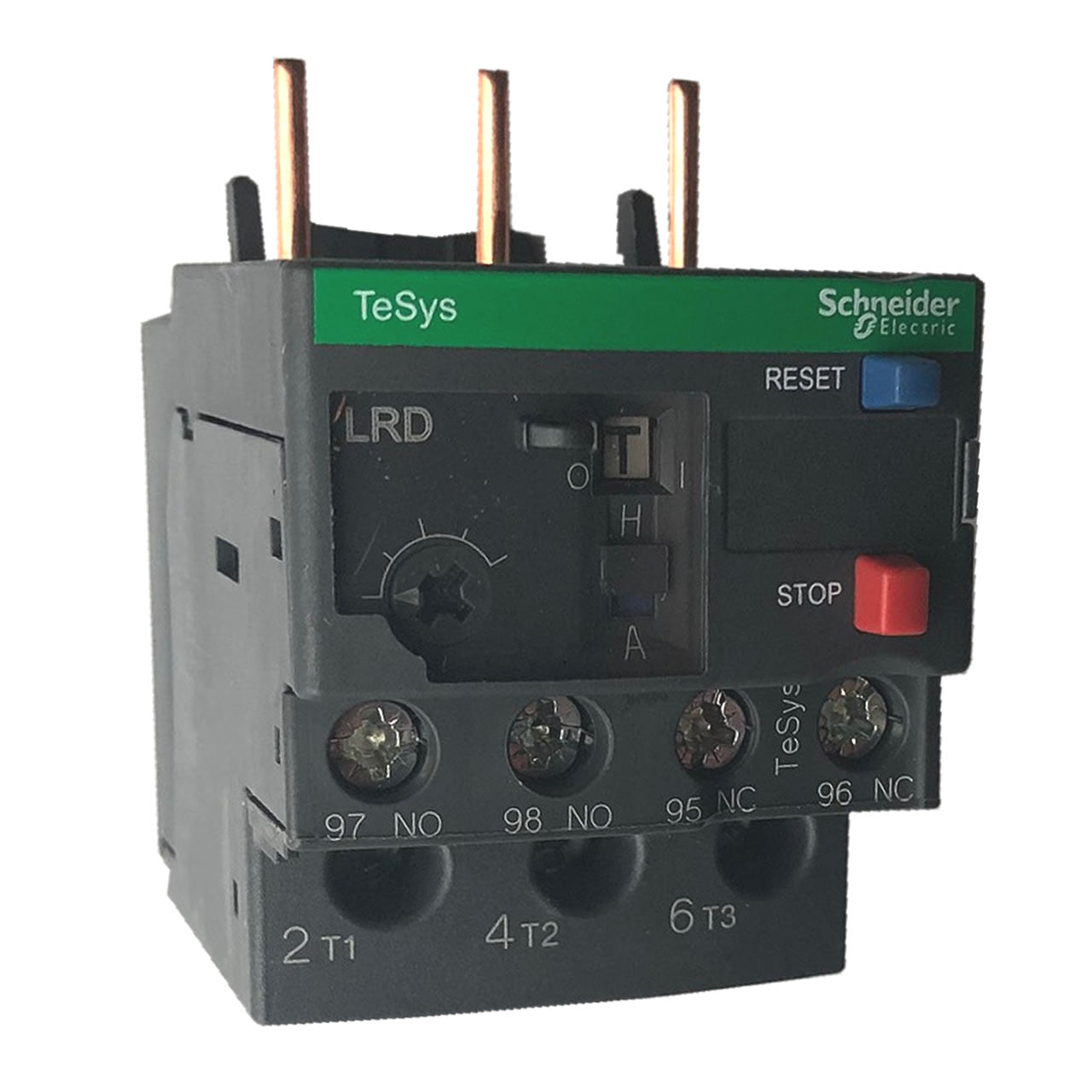

Schneider Electric LRD16 Thermal Overload Relay 9 to 13 AMPS

Product Description

The Schneider Electric LRD16 thermal overload relay is designed for use with LC1D09 through LC1D32 TeSys contactors. This unit is adjustable from nine to thirteen AMPS and provides protection against overloads with Class 10 ratings. It features phase loss sensitivity and includes screw terminals for straightforward installation. The relay can be reset manually, or be set to automatic reset, allowing for flexibility in operation. The rated voltage for this relay is 600V AC.

• Adjustable from 9 to 13 AMPS
• Mounts directly to LC1D09 through LC1D32 TeSys contactors
• Class 10 overload protection

Product Highlights

This relay is essential for protecting motors from overheating, thus enhancing reliability and lifespan.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD16

Technical Specifications

• AMP Range: 9 to 13 AMPS
• Phase Loss Sensitivity: Yes
• Reset: Manual or Automatic
• Terminals: Screw
• Trip Class: 10
• Current Rating: 13 Amps
• Mounting Type: Panel Mount
• Use With: LC1D18-D32
• Frequency Rating: 0 to 400 Hz
• IP Rating: IP20 conforming to IEC 60529
• Rated Voltage: 690V AC
• Height: 66 mm
• Depth: 70 mm
• Width: 45 mm
• Dielectric Strength: 1.89 kV 50 Hz IEC 60947-1
• Standard: EN/IEC 60947-4-1, UL 60947-4-1
