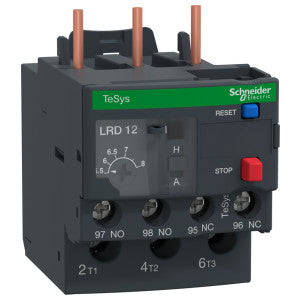

Schneider Electric LRD12L TeSys Deca Thermal Overload Relay 5.5...8 A Class 20

Product Description

The Schneider Electric LRD12L TeSys Deca thermal overload relay is essential for motor protection, designed to work with TeSys Deca contactors. This relay operates within a thermal range of 5.5 to 8 amperes and features a tripping class of 20. It includes phase unbalance protection to ensure reliable performance under various operating conditions.

• Provides motor protection with a thermal range of 5.5-8A.
• Includes manual test and reset buttons, along with an automatic reset feature.
• Directly mounts onto TeSys D contactors for compact installation.

Product Highlights

This relay is designed for motors up to three kilowatts at 400 volts. It is built for use in demanding environments thanks to its robust features and certifications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD12L

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39122330
• Rated Voltage: 690V AC
• Height: 66 mm
• Depth: 76 mm
• Width: 45 mm
• Weight: 0.144 kg
• IP Rating: IP20
• Operating Temperature: -20 to 60 degrees C
• Storage Temperature: -60 to 70 degrees C
• Product Certifications: IEC, UL, CSA, EAC, ABS, ATEX INERIS, UKCA
• Thermal Overload Class: Class 20
• Conventional Free Air Thermal Current: 5 A signalling circuit
• Mounting Support: plate, with specific accessories; rail, with specific accessories
