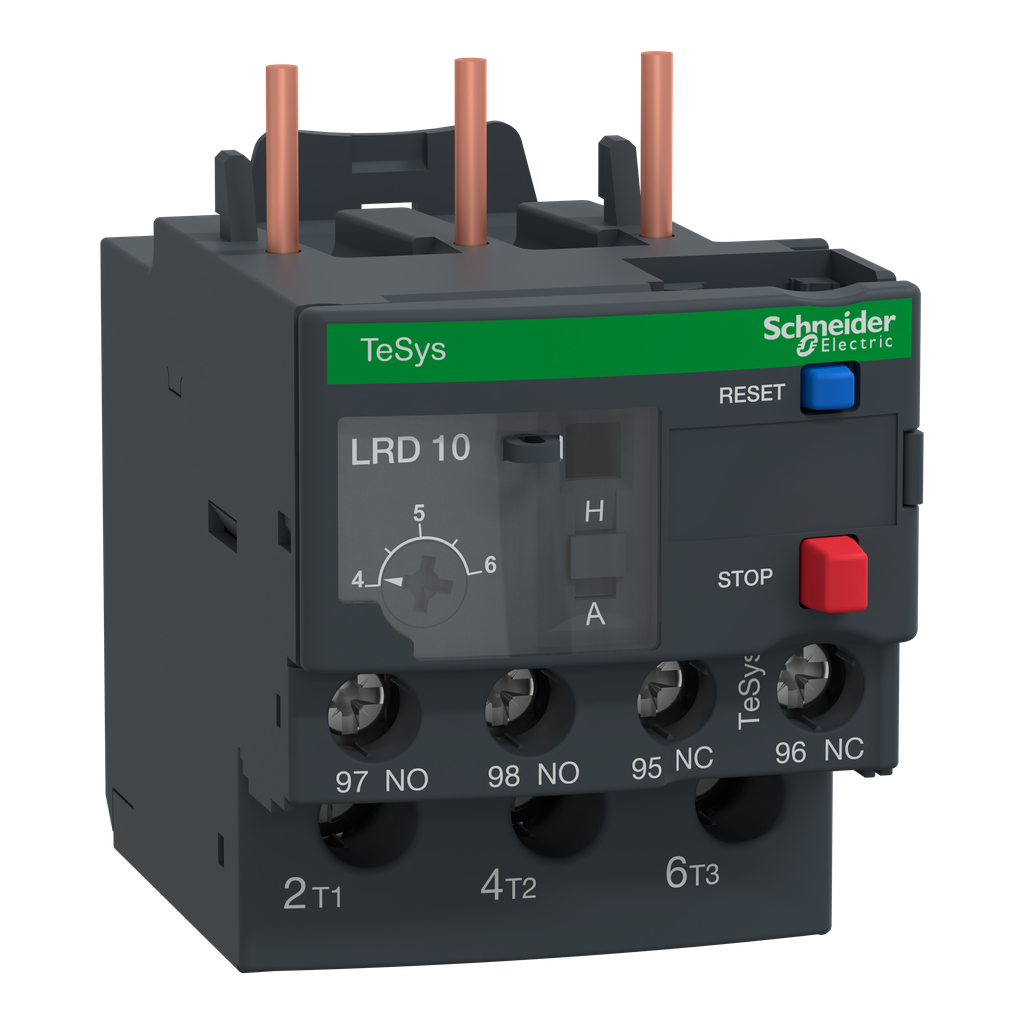

Schneider Electric LRD10L TeSys Deca Thermal Overload Relay 4-6A Class 20

Product Description

The Schneider Electric LRD10L TeSys Deca Thermal Overload Relay is engineered to safeguard motors rated at 2.2kW@400V. Featuring a thermal setting range from 4 to 6 amperes and a tripping class 20, this relay provides efficient phase unbalance protection. Its compatibility with TeSys D contactors allows for seamless integration into motor starter setups.

• Direct mounting simplifies integration with TeSys D contactors.
• Includes manual and automatic reset functions, along with test and reset buttons.
• Equipped with 1NO+1NC auxiliary contacts and a visible trip indicator.

Product Highlights

Designed for robust motor protection, the LRD10L relay features bimetallic tripping for precise response to thermal overloads. It is certified across multiple international standards, including IEC, UL, and CSA, ensuring compliance for global applications. Its compact, 45mm width and temperature compensation enhance installation ease and operational reliability, respectively.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD10L
• Global Availability: Yes, meets standards like IEC, UL, CSA, CCC, EAC, Marine.

Technical Specifications

• Thermal Setting Range: 4-6A
• Tripping Class: 20
• Phase Unbalance Protection: Yes
• Mounting Type: Direct on TeSys D contactors
• Terminals: Bottom terminals of a TeSys contactor LC1D09-D38
• Dimensions: Width: 45 mm, Height: 66 mm, Depth: 76 mm
• Weight: 0.32 lb
