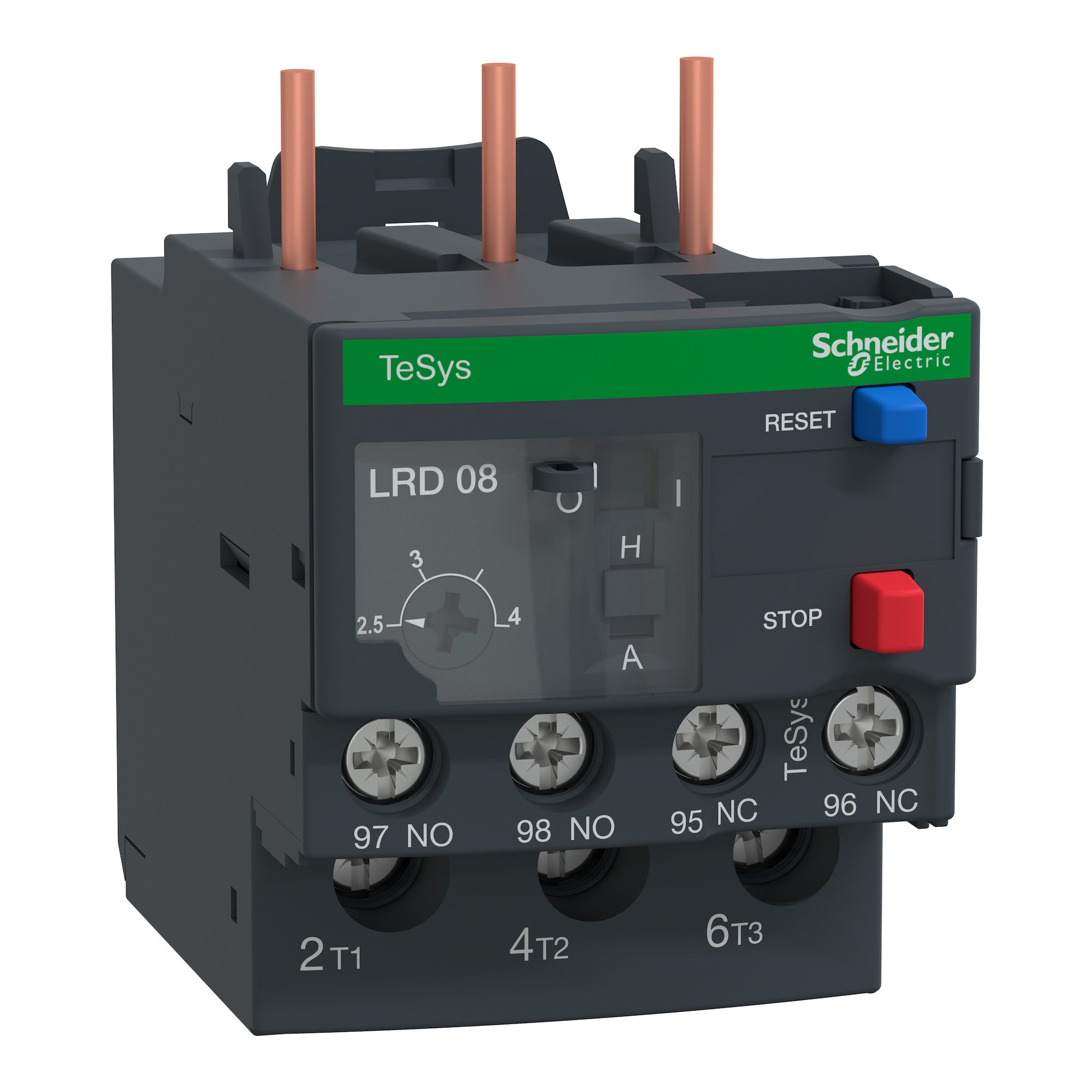

Schneider Electric LRD086 TeSys Deca Thermal Overload Relays - 2.5...4 A - Class 10A

Product Description

The Schneider Electric LRD086 is a TeSys Deca thermal overload relay designed for the protection of three-phase motors. This model operates within a thermal setting range of two point five to four amperes and is rated for up to six hundred ninety volts. It includes a tripping class of ten A suitable for motors ranging from one point one to one point five kilowatts at four hundred volts. Key features include a thermal adjustment dial, a manual-automatic reset selector, and a test selector for trip simulation. It alerts users to faults with a flag indicator and offers two auxiliary contacts for signaling failures.

• Thermal setting range: 2.5 to 4 A
• Tripping class: 10A
• Compatible with three-phase motors 1.1-1.5 kW at 400V

Product Highlights

This relay is designed to safeguard three-phase motors with features that allow for easy adjustment and testing to ensure reliable operation. Its durable construction and compliance with multiple standards make it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LRD086

Technical Specifications

• Tripping Class: 10A
• Voltage Rating: 690V
• Motor Power Range: 1.1 to 1.5 kW
• Auxiliary Contacts: 1 NO + 1 NC
• Connection Type: Screw clamp terminals
• Mounting Type: DIN rail or screw fixing
• Country of Origin: France
• Warranty: 18 months
