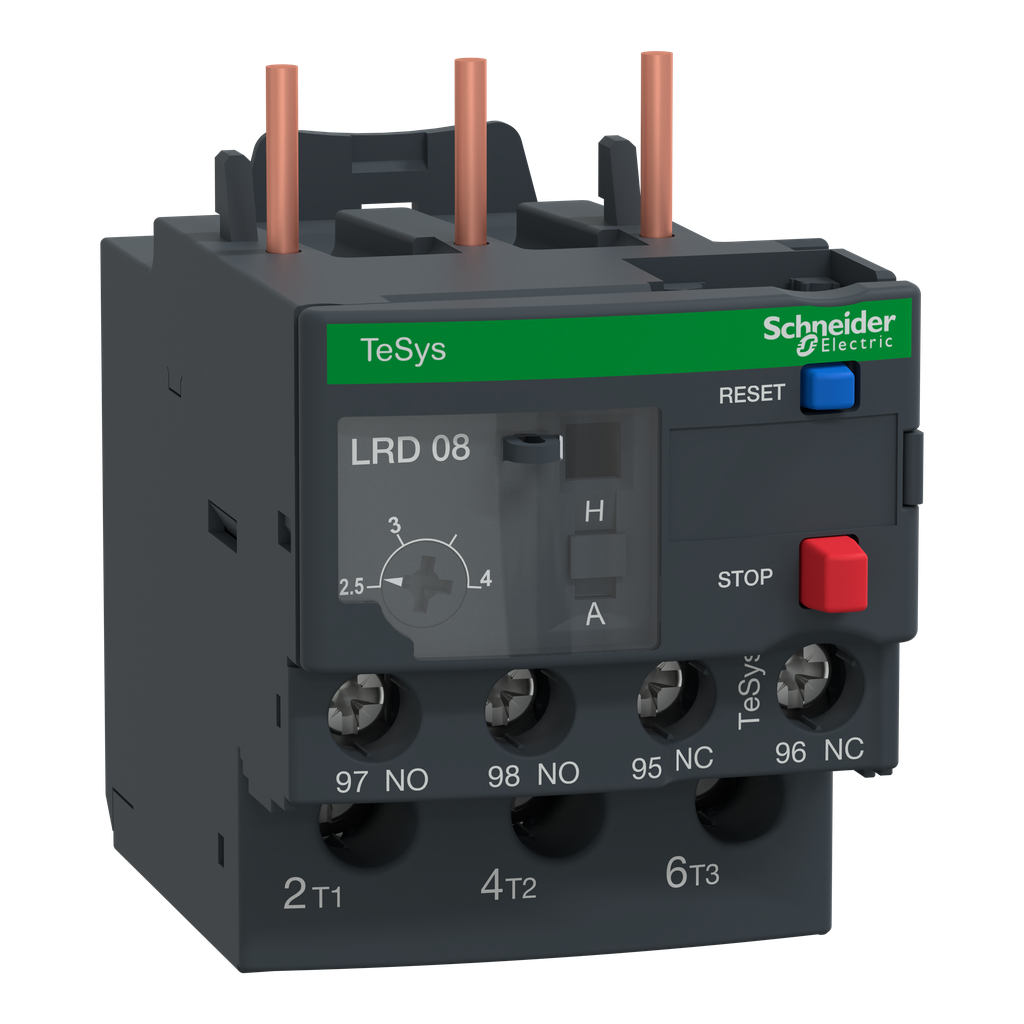

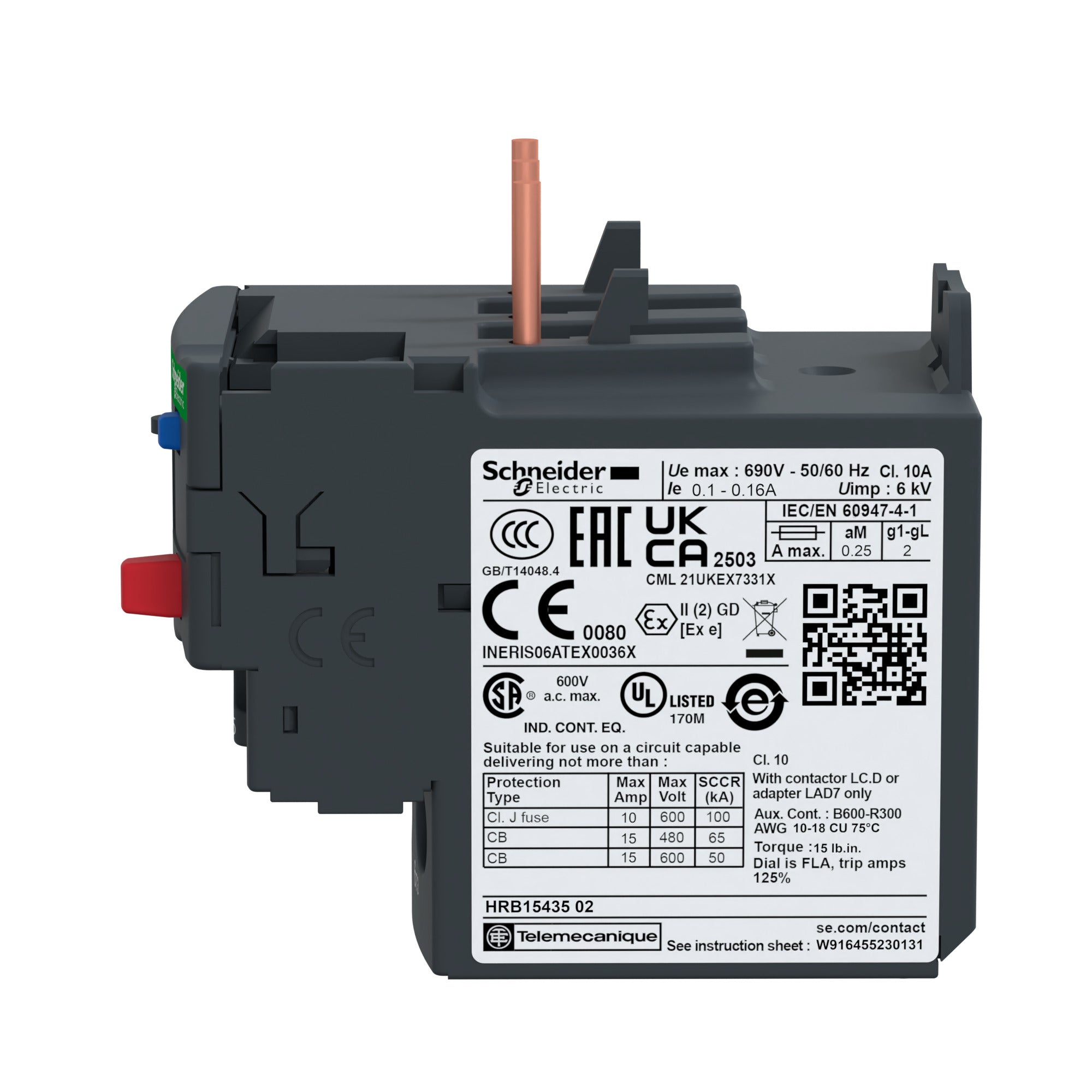

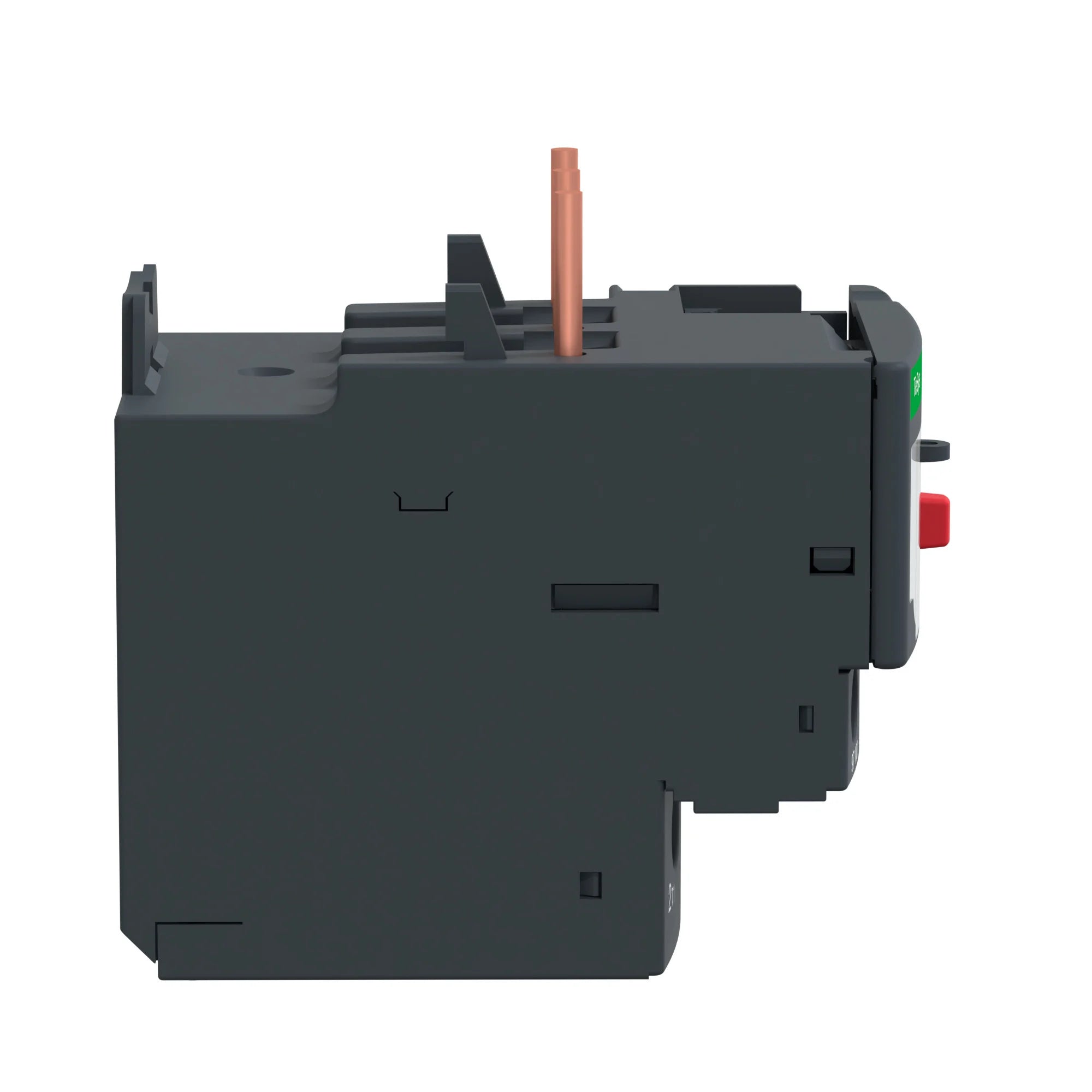

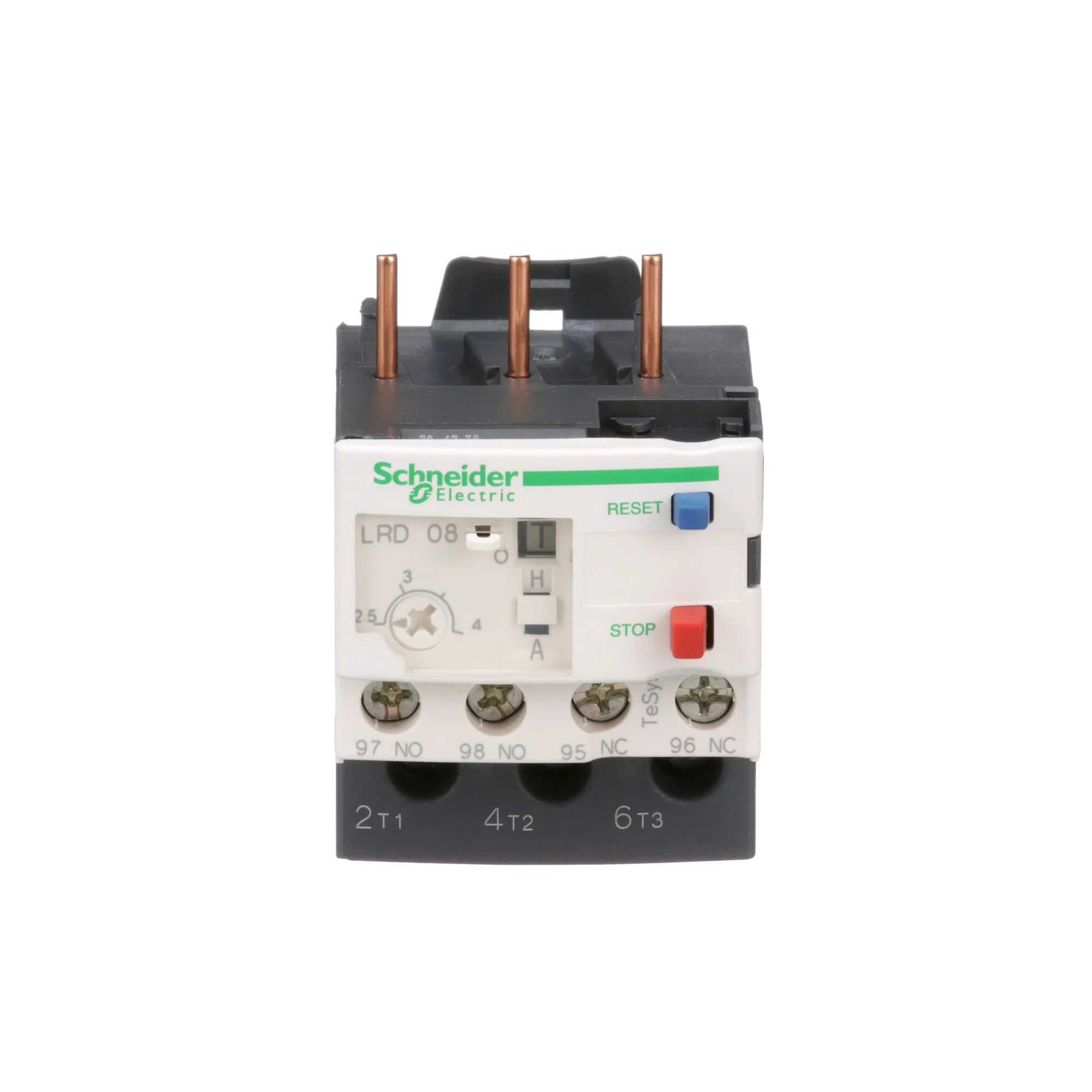

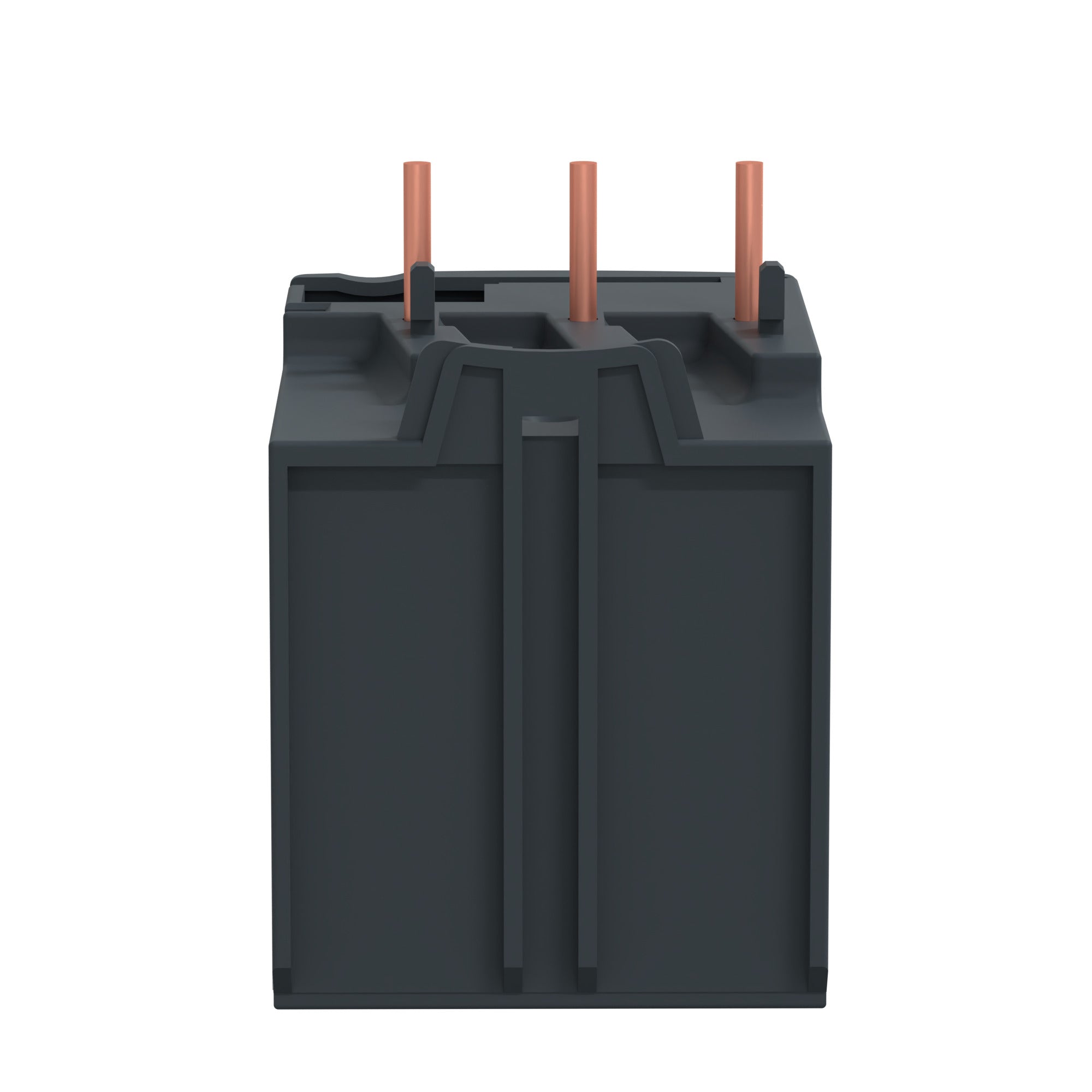

Schneider Electric LRD08 Overload Relay 2.5-4 A 3-Pole

Product Description

The Schneider Electric LRD08 is a differential thermal overload relay designed to protect motors from overloads and short circuits. This device is compatible with TeSys D contactors rated from nine to thirty-eight amps. It monitors current and disconnects power when necessary to reduce risk of damage to the motor. The adjustable trip current setting ranges from two point five to four amperes.

• Adjustable trip current: 2.5 to 4.0 amperes.
• Multi-standard certified: IEC, UL, CSA, and more.
• Manual or auto reset options available.

Product Highlights

This overload relay is suitable for various applications including motor protection for HVAC systems, pumps, and conveyors. It features a compact design for easy installation in tight spaces.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: LRD08
• Voltage: 690 Volt
• Number of Poles: 3 Pole
• Width: 45 mm
• Height: 66 mm
• Depth: 70 mm
• Weight: 0.27 lb
• Reset Type: Manual or Auto
• Operating Temperature: -20C to 60C without derating
