Product Description

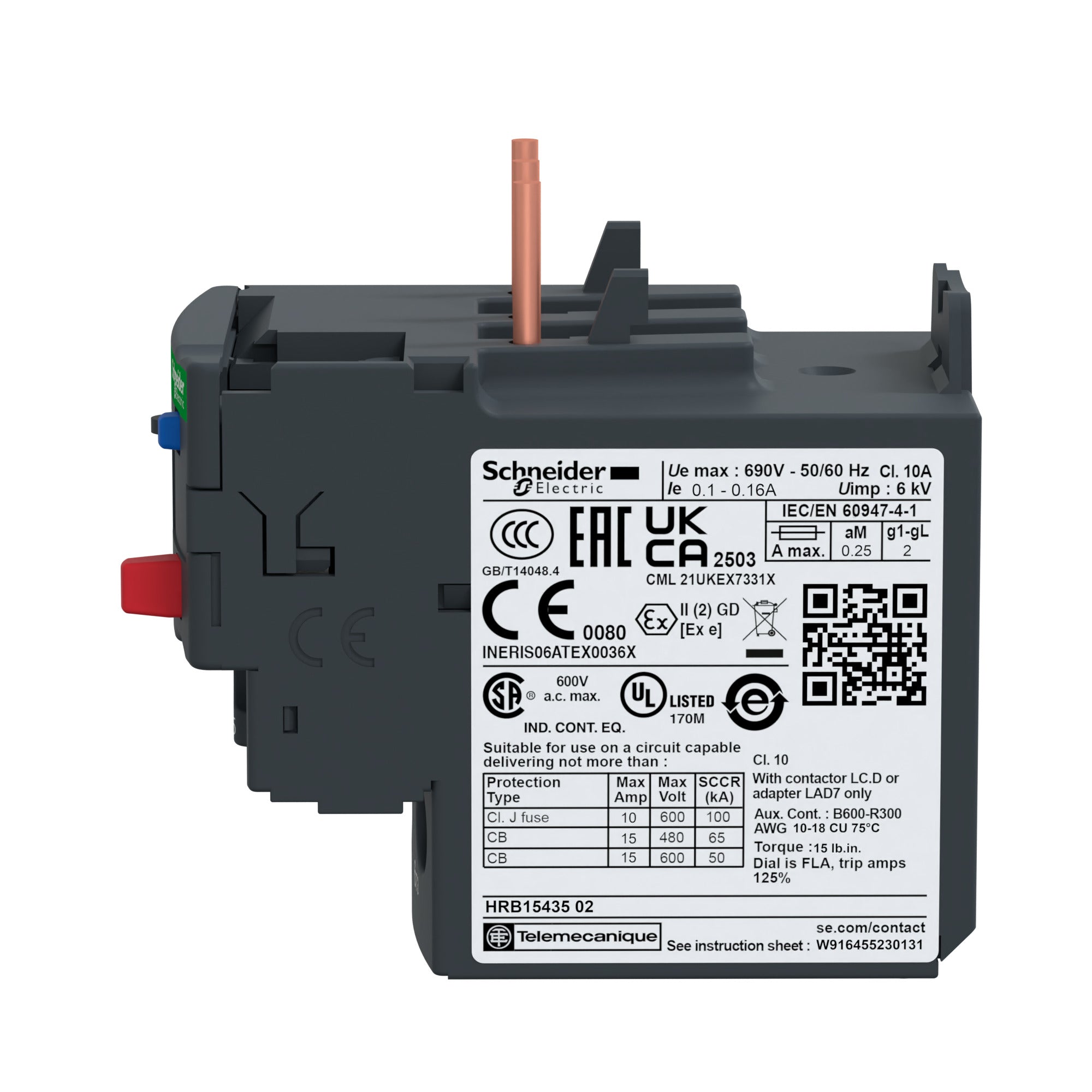

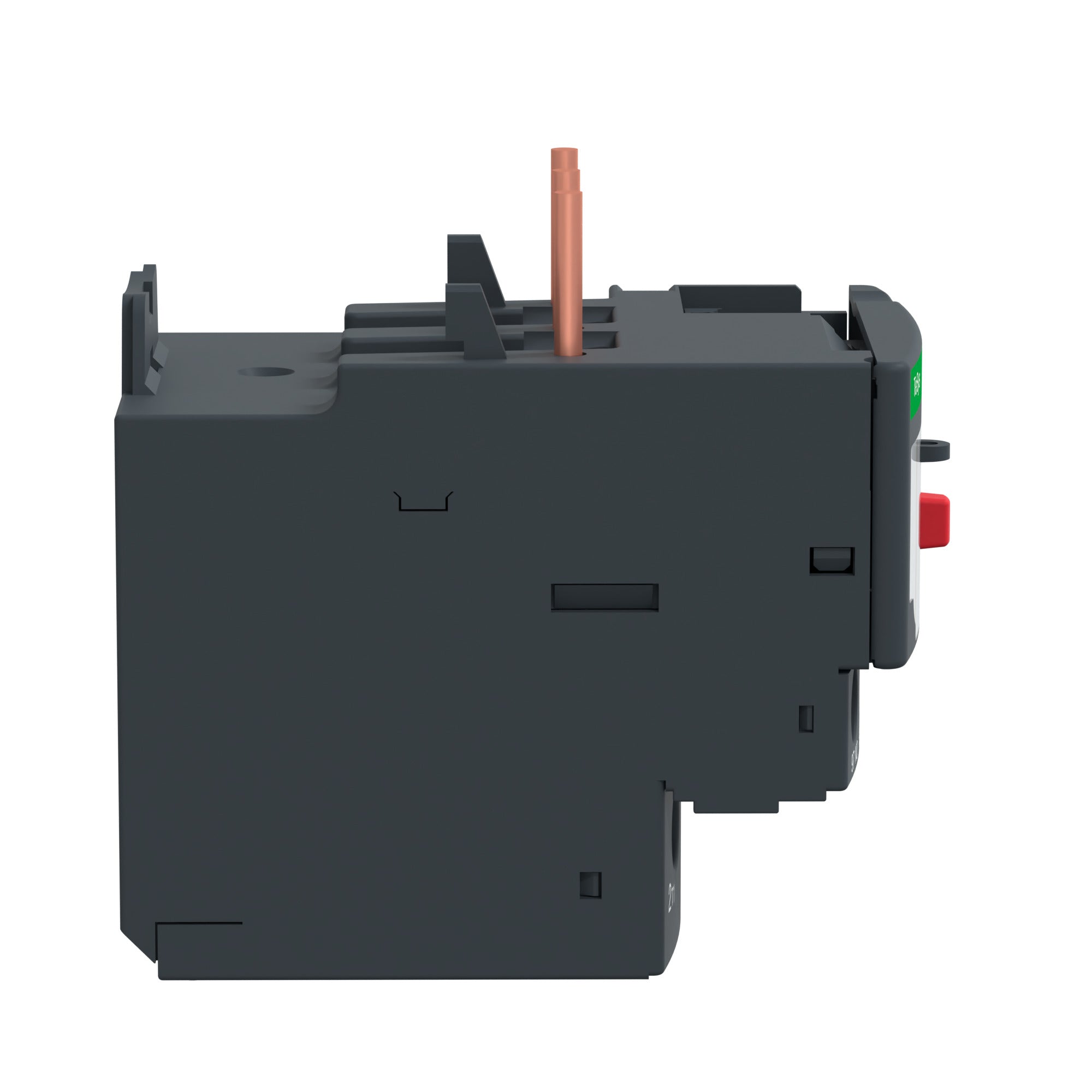

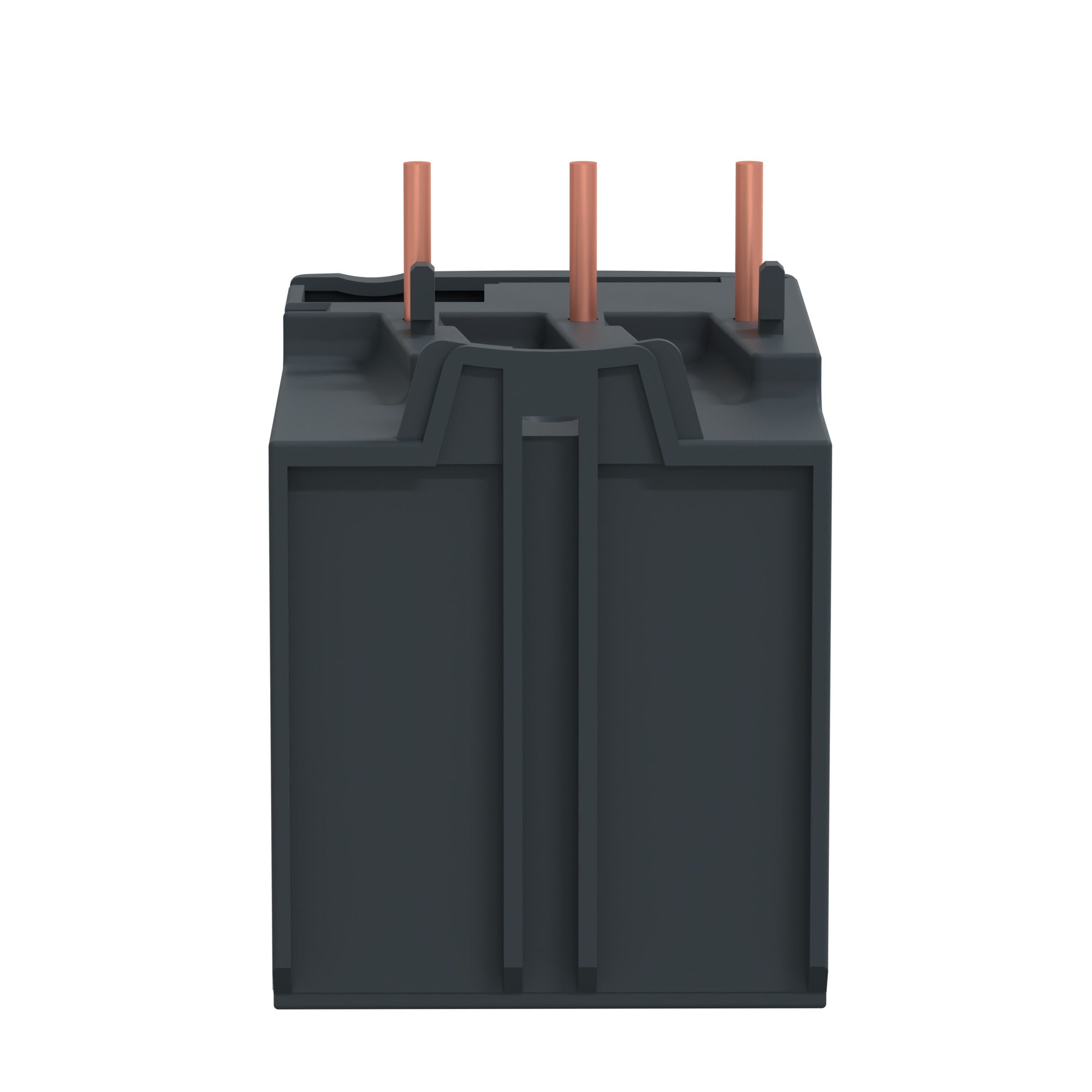

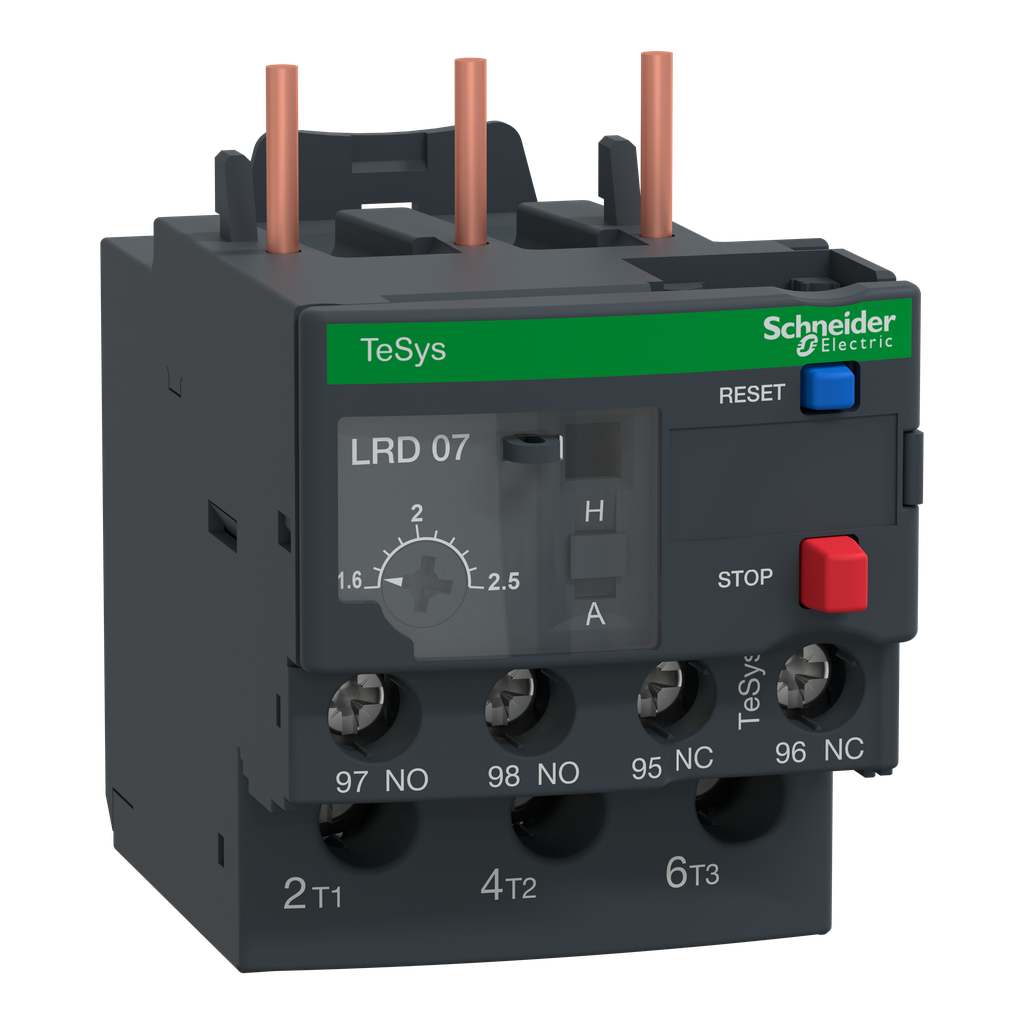

The Schneider Electric LRD07L is a thermal overload relay designed for use with TeSys D contactors. This unit effectively protects motors rated up to 0.75 kilowatt at 400 volts. The LRD07L features a thermal adjustment range from 1.6 to 2.5 amps and is classified under tripping class 20. This relay also has phase unbalance protection to enhance operational safety.
- Direct mounting on TeSys D contactors
- Manual test and reset buttons
- Multi-standard certified for various international markets
Product Highlights
Reliable thermal overload protection with advanced safety features for motor applications in various settings.
Product Information
Standard Information
-
Brand: Schneider Electric
-
Manufacturer: Square-D / Schneider
Technical Specifications
-
Catalog Number: LRD07L
-
Type: Differential thermal overload relay
-
Thermal Setting Range: 1.6 - 2.5 A
-
Voltage Rating: 690 Volt
-
Width: 45 mm
-
Height: 66 mm
-
Depth: 76 mm
-
Weight: 0.32 lb
-
Operating Temperature: -20 to 60 degrees Celsius
-
Country of Origin: Thailand
-
Warranty: 18 months
