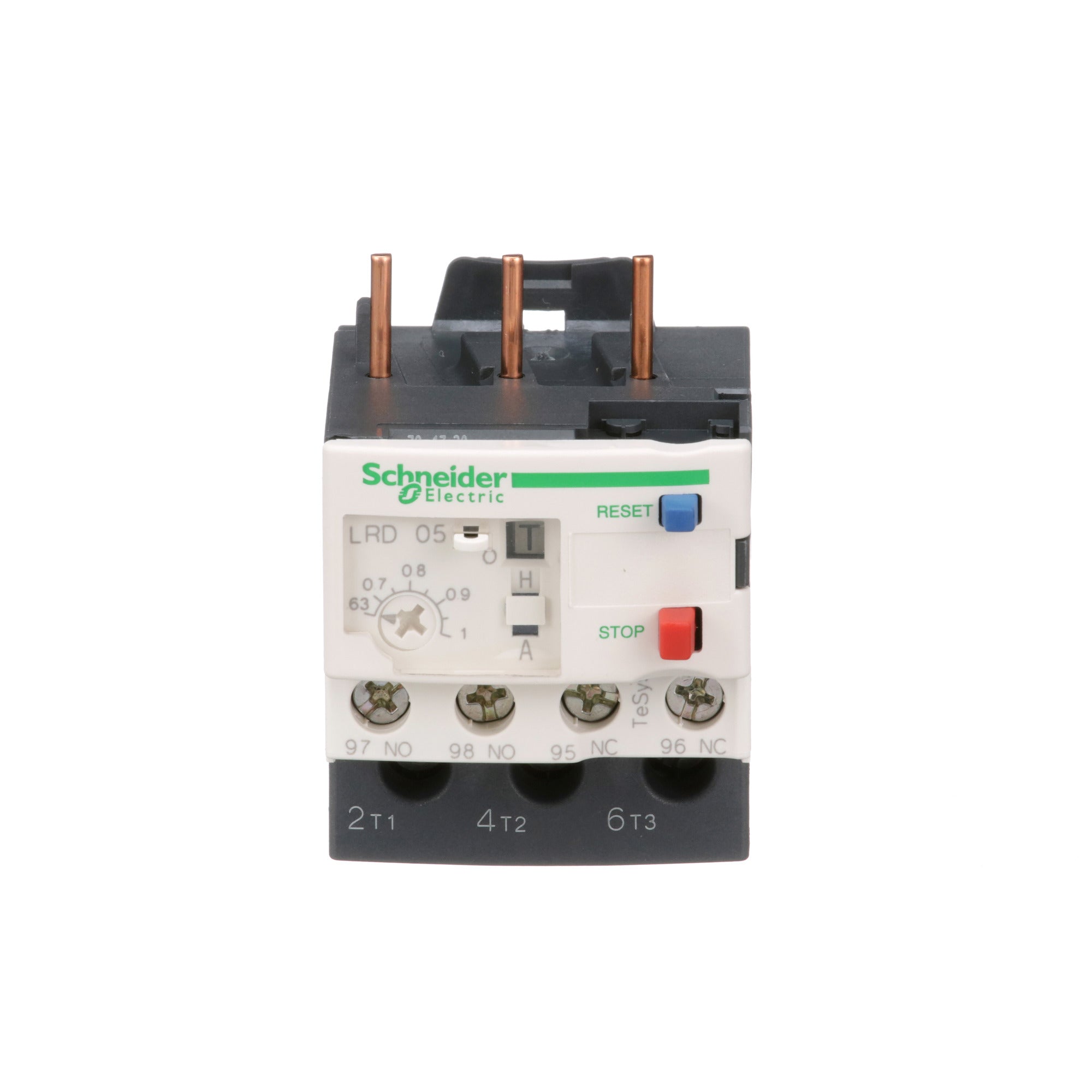

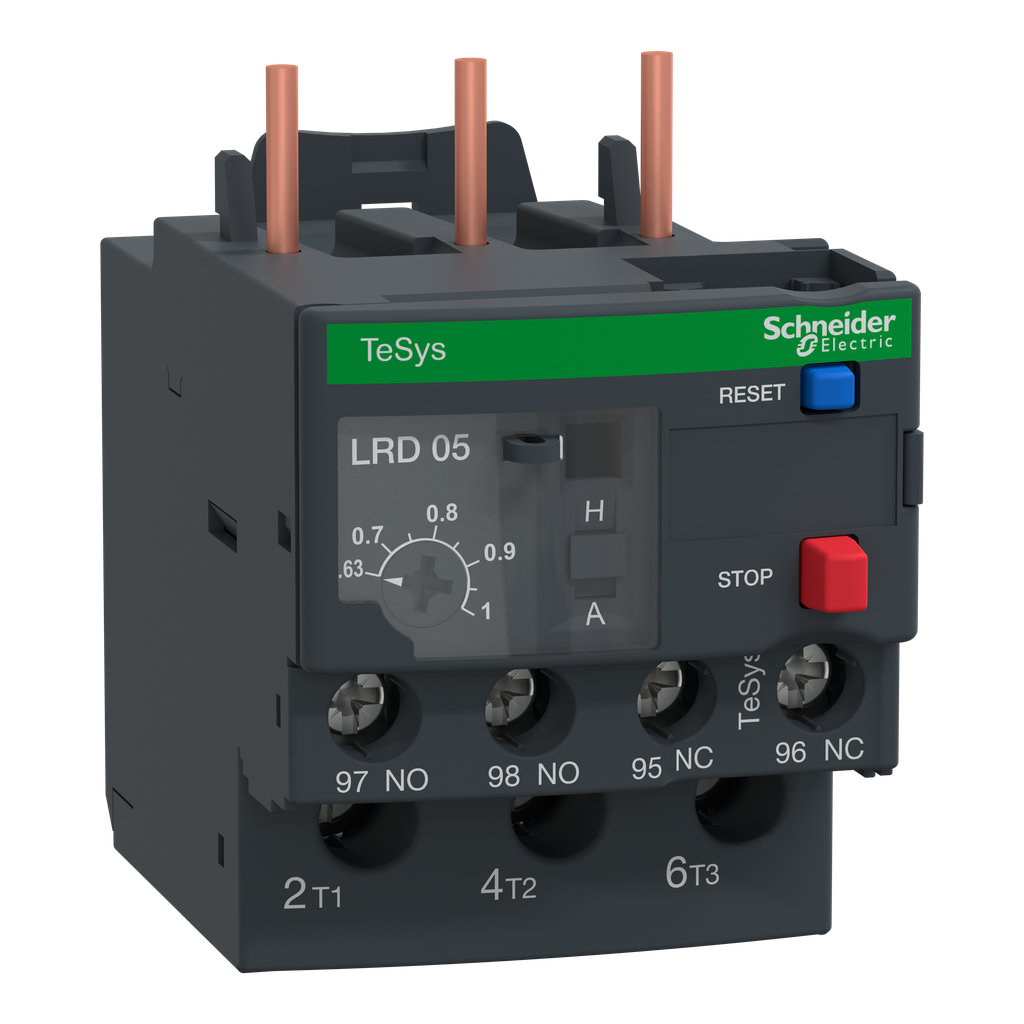

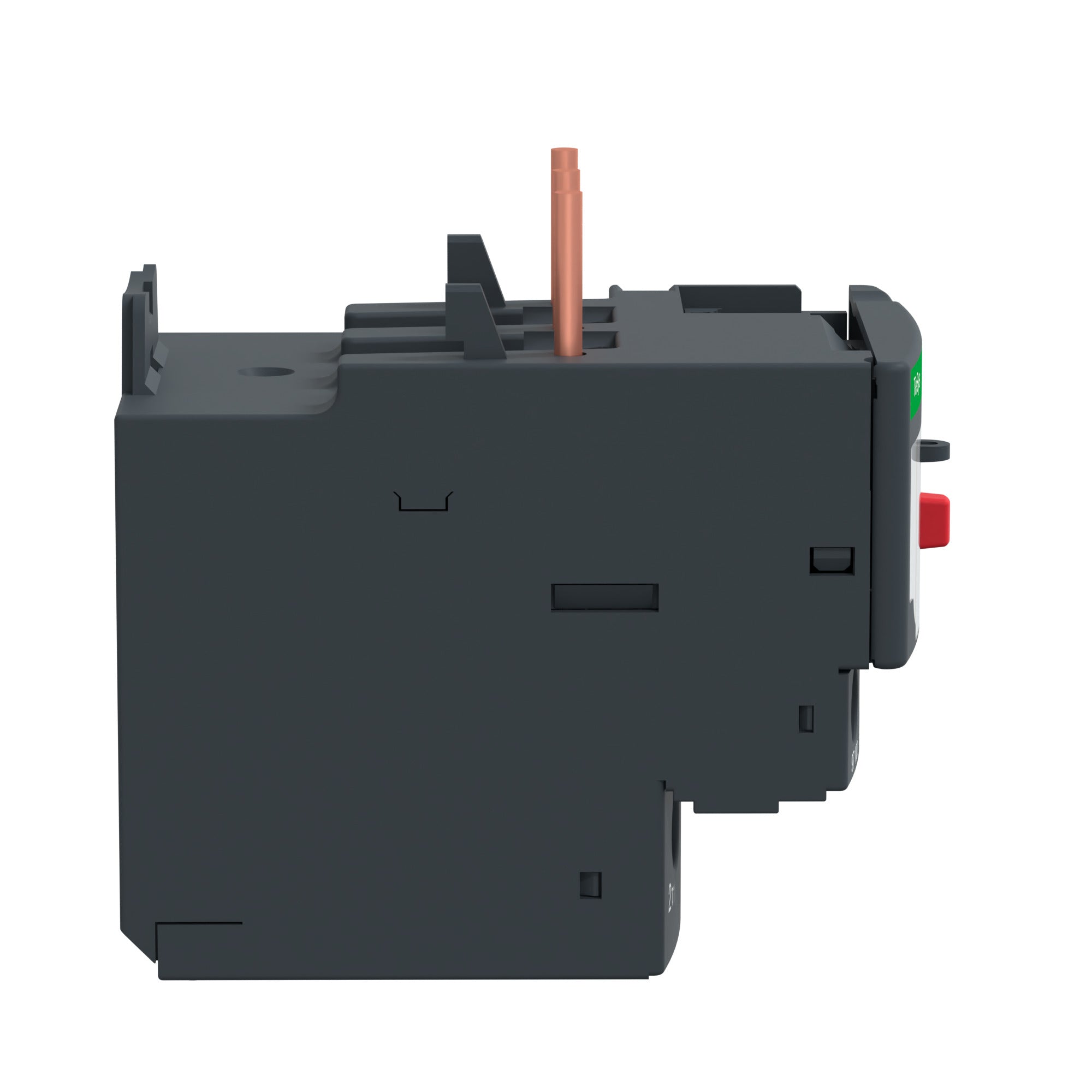

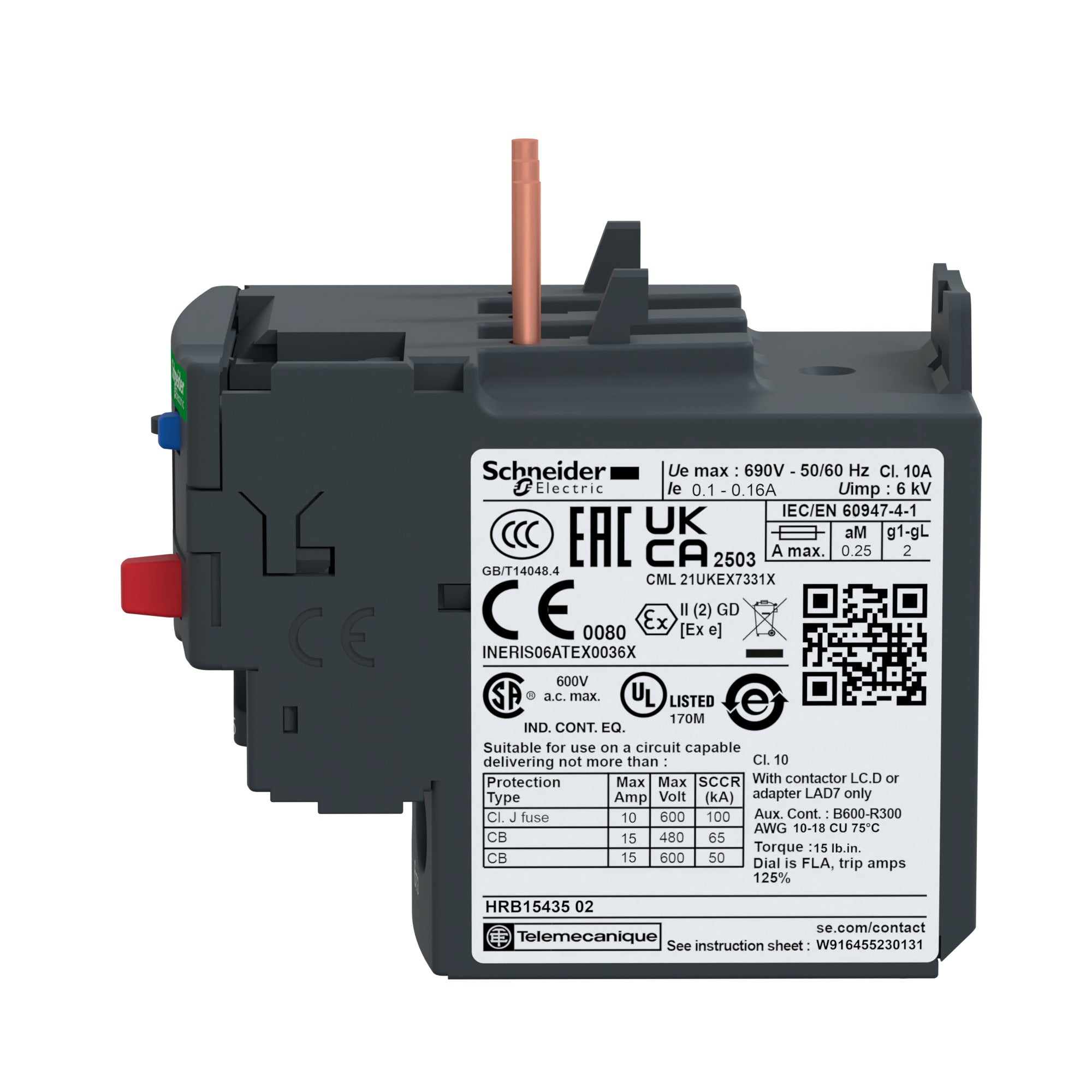

Schneider Electric LRD05 Square D 600 Volt 1 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LRD05 is a thermal overload relay designed for use with TeSys D contactors, providing essential protection for motors in electrical circuits. With a trip current rating adjustable from zero point six three to one point zero amps and calibrated per Class 10A, it is suitable for circuits operating between nine amps to thirty-eight amps. When an overcurrent is detected, the relay disconnects power, preventing damage to motor windings.

• Compatible with TeSys D contactors
• Multi-certified including IEC, UL, CSA, and others
• Green Premium compliant

Product Highlights

Ideal for protecting motors from overload conditions, the LRD05 features robust construction that ensures durability in industrial environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD05

Technical Specifications

• Voltage: 690 Volts
• Weight: 0.27 lb
• Width: 1.77 inches
• Height: 2.60 inches
• Depth: 2.76 inches
• Number of Poles: 3 Pole
• Operating Temperature: -20 to 60 Degrees Celsius
• Applications: Motor protection
