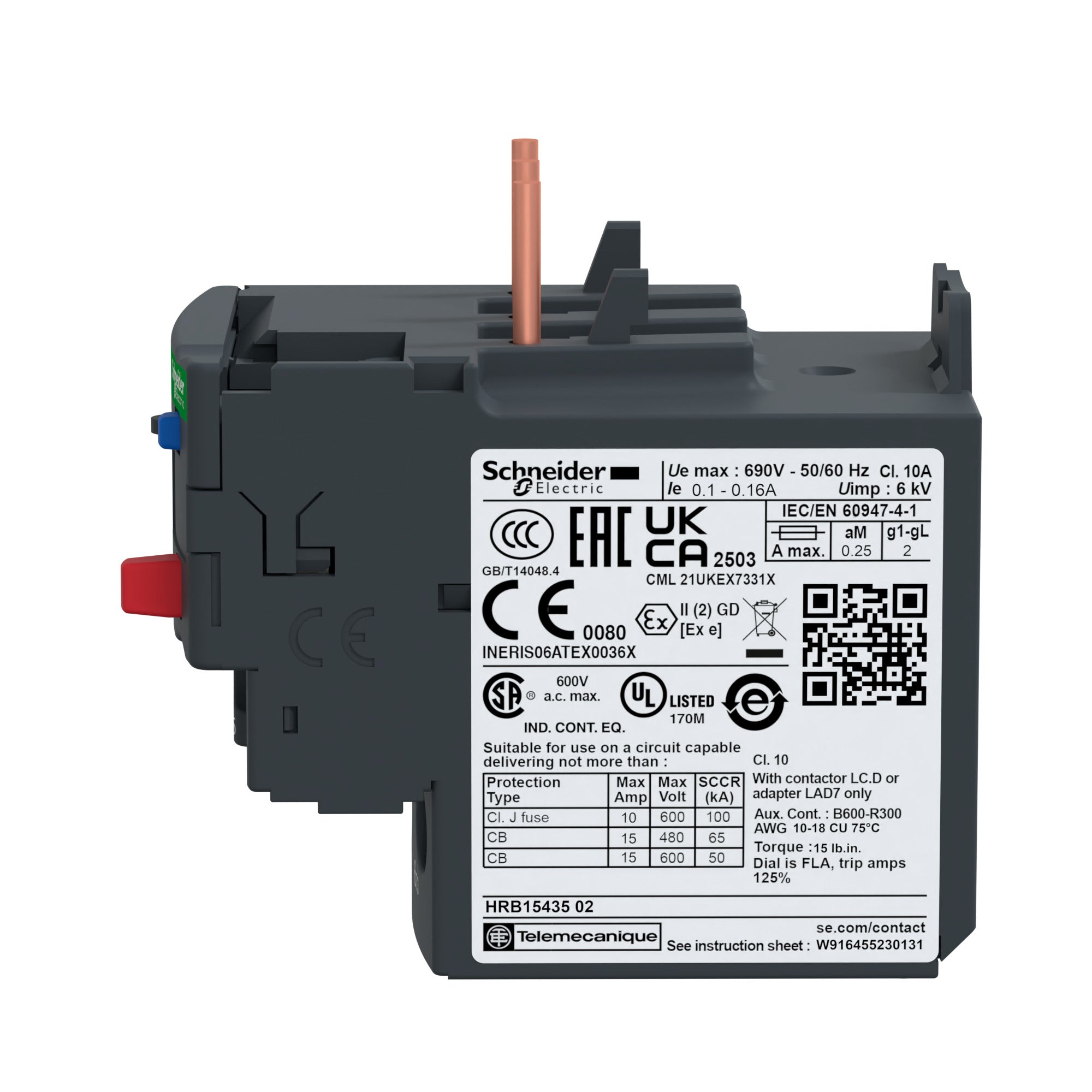

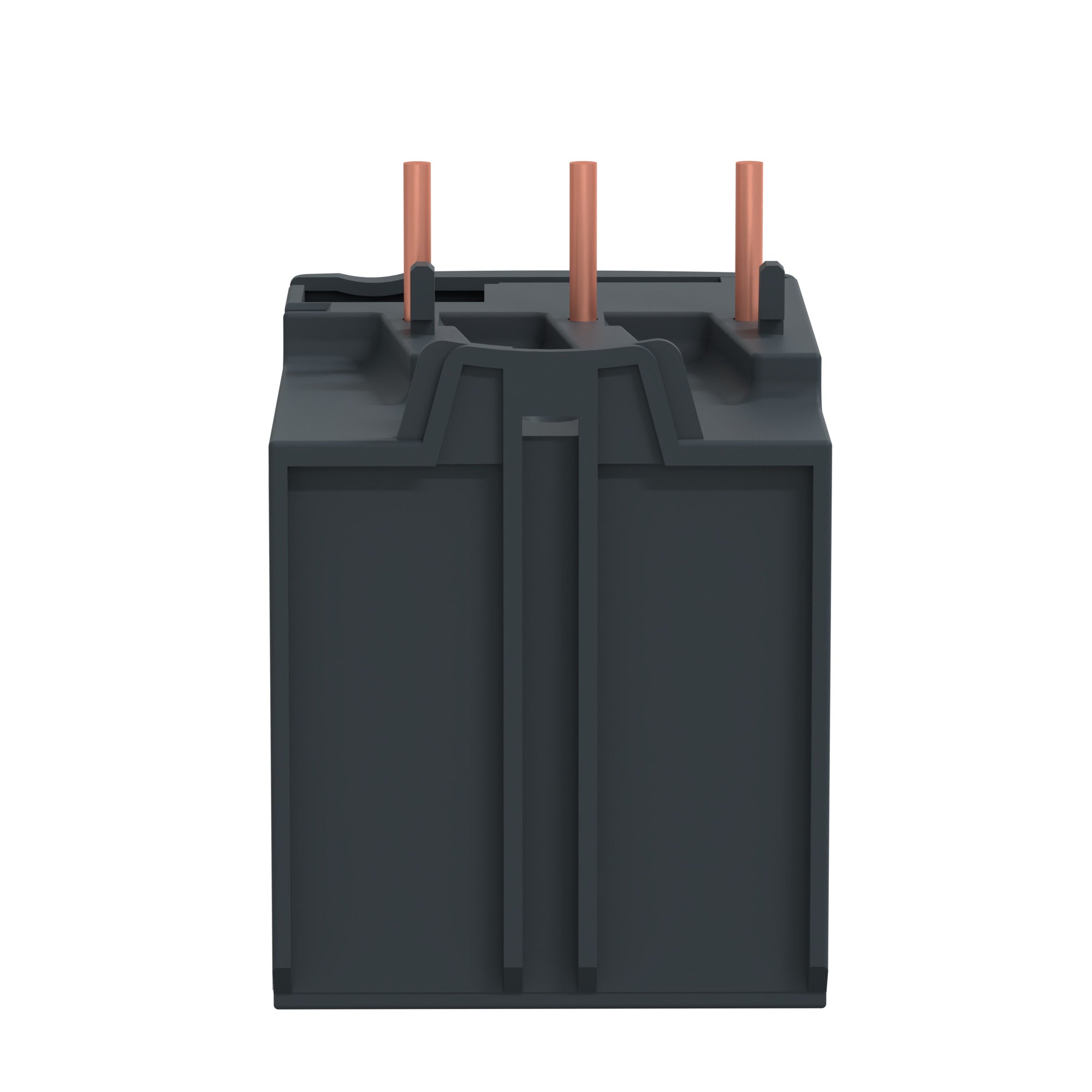

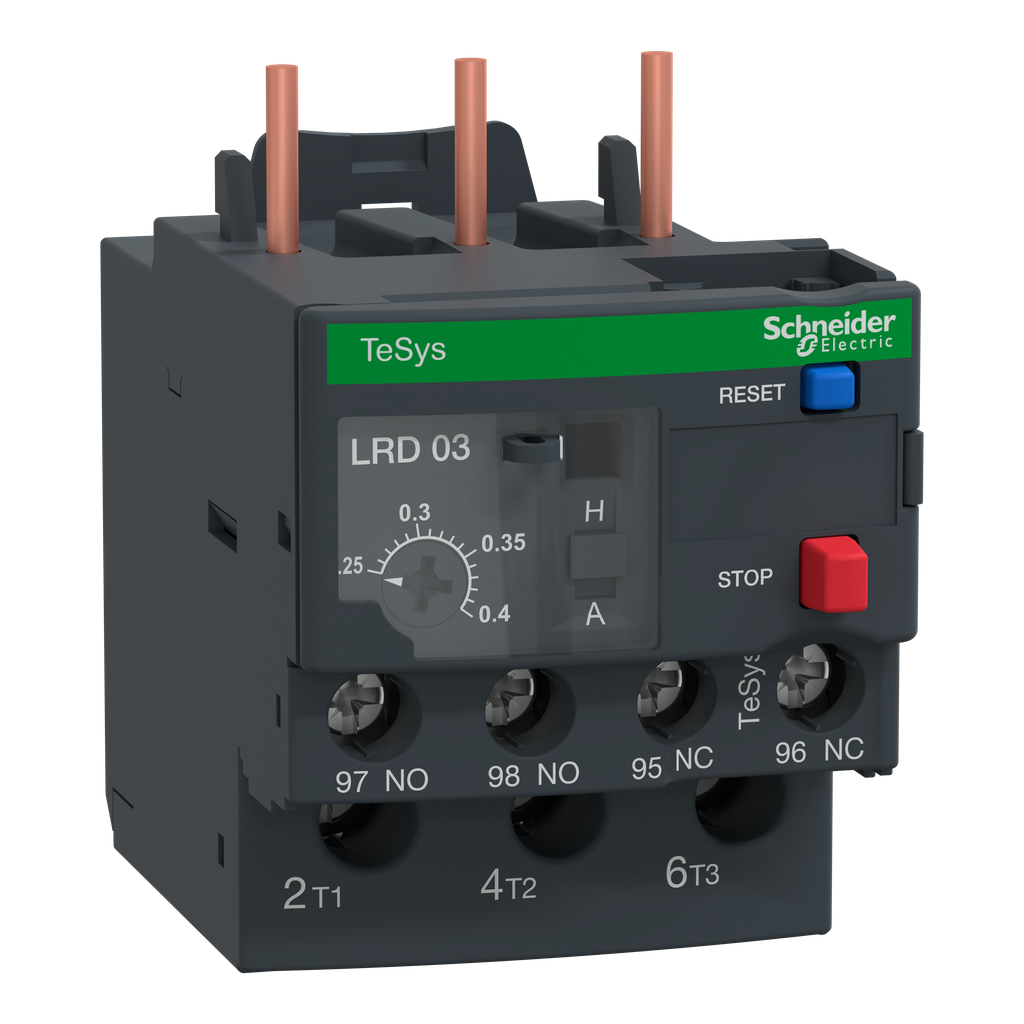

Schneider Electric LRD03 Square D 600 Volt 0.4 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LRD03 is a thermal overload relay designed for use with TeSys D contactors. It protects motors operating at zero point six to zero point nine kilowatts at four hundred volts. The relay features a thermal range of zero point twenty-five to zero point forty amps and is designed with a tripping class of ten. The LRD03 includes phase unbalance protection to ensure the reliable operation of your motor systems.

• Protects motors from overloads and phase unbalance.
• Manual test, reset buttons, and automatic reset feature.
• Multi-standards certified and Green Premium compliant.

Product Highlights

This thermal overload relay is light and compact, measuring forty-five millimeters in width. It is temperature compensated for enhanced accuracy and features a trip signaling system.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LRD03
• Tripping Class: 10A
• Voltage: 690 Volt
• Number of Poles: 3 Pole
• Operating Temperature: -20C to 60C
• Reset Type: Manual or Auto
• Country of Origin: France
• Warranty Length: 18 months
