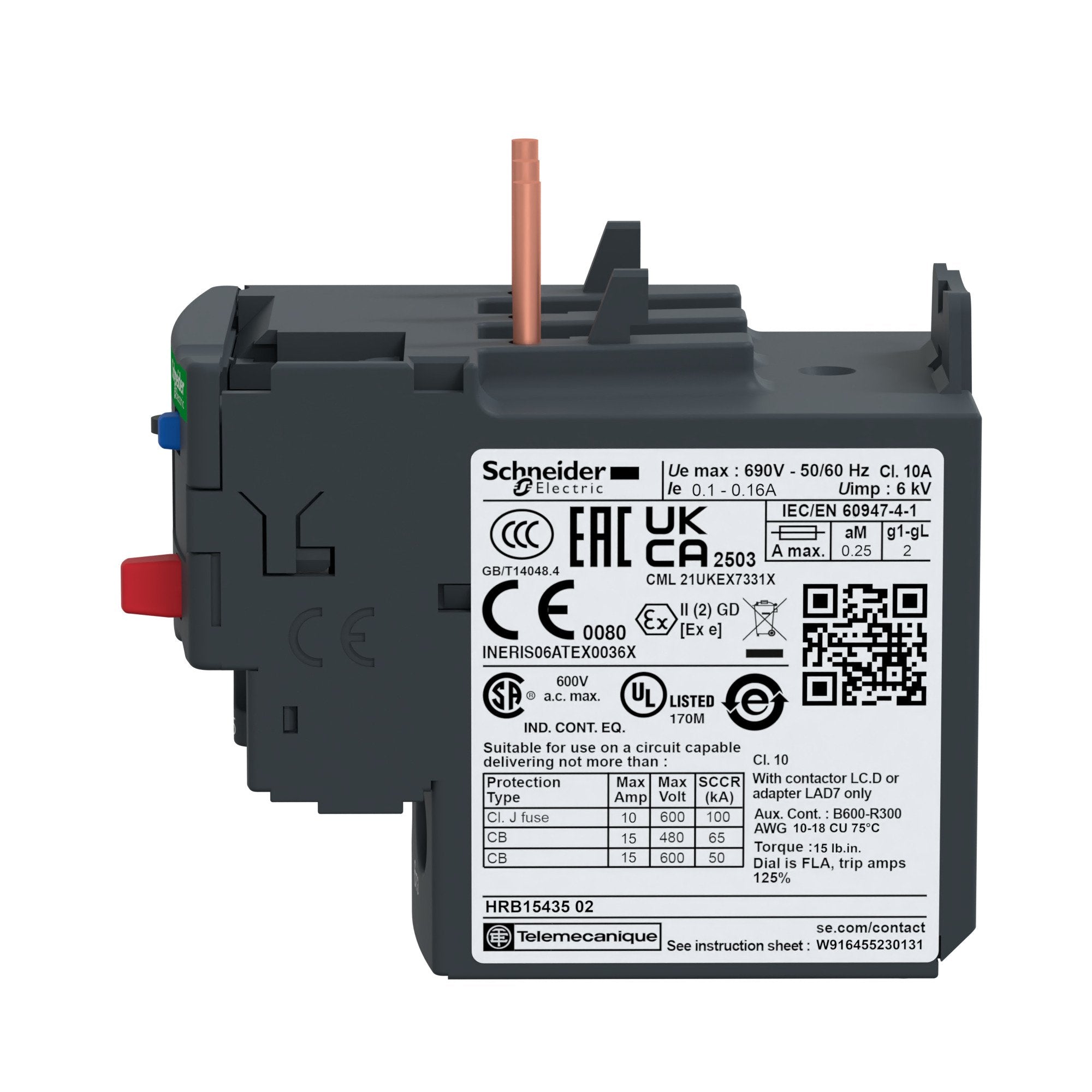

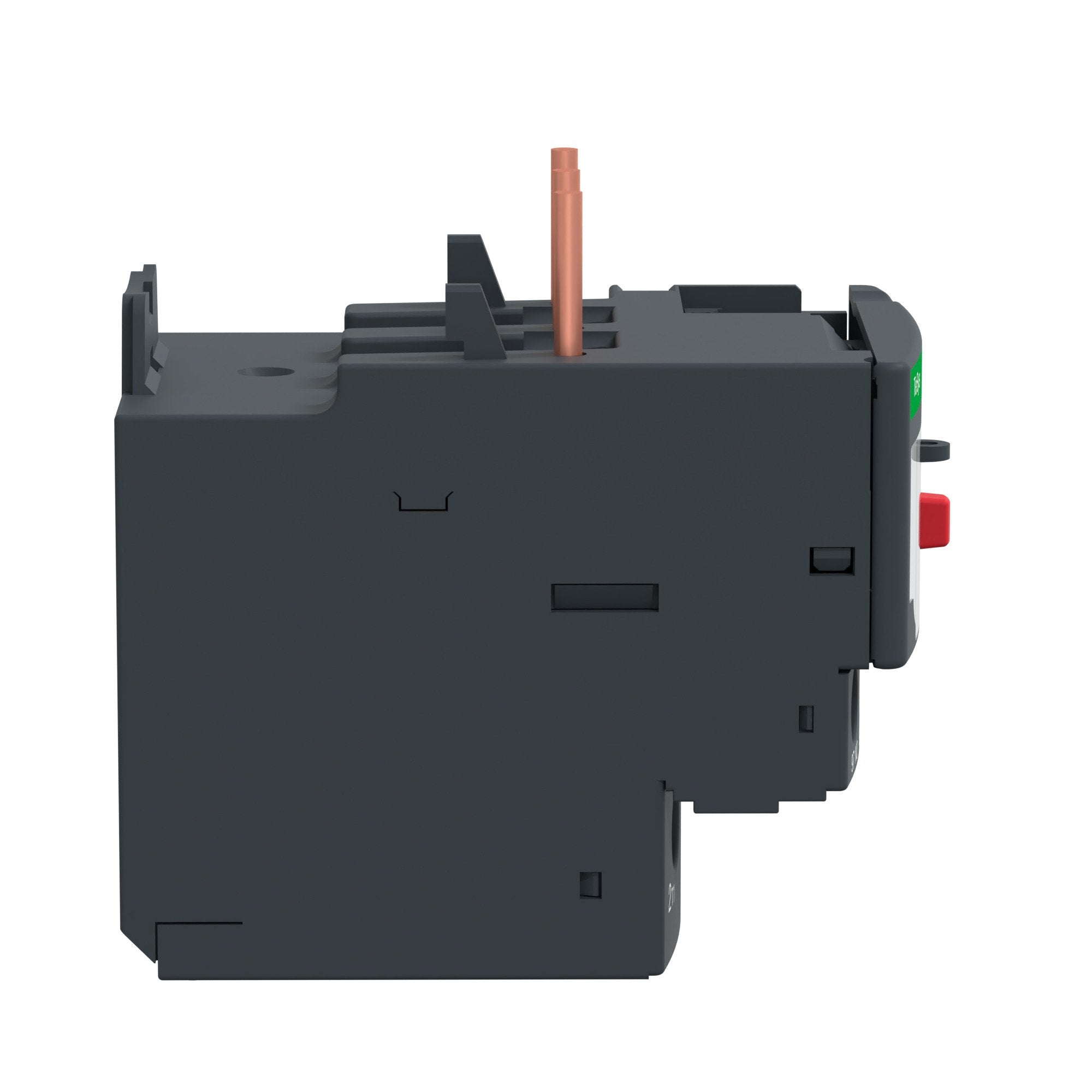

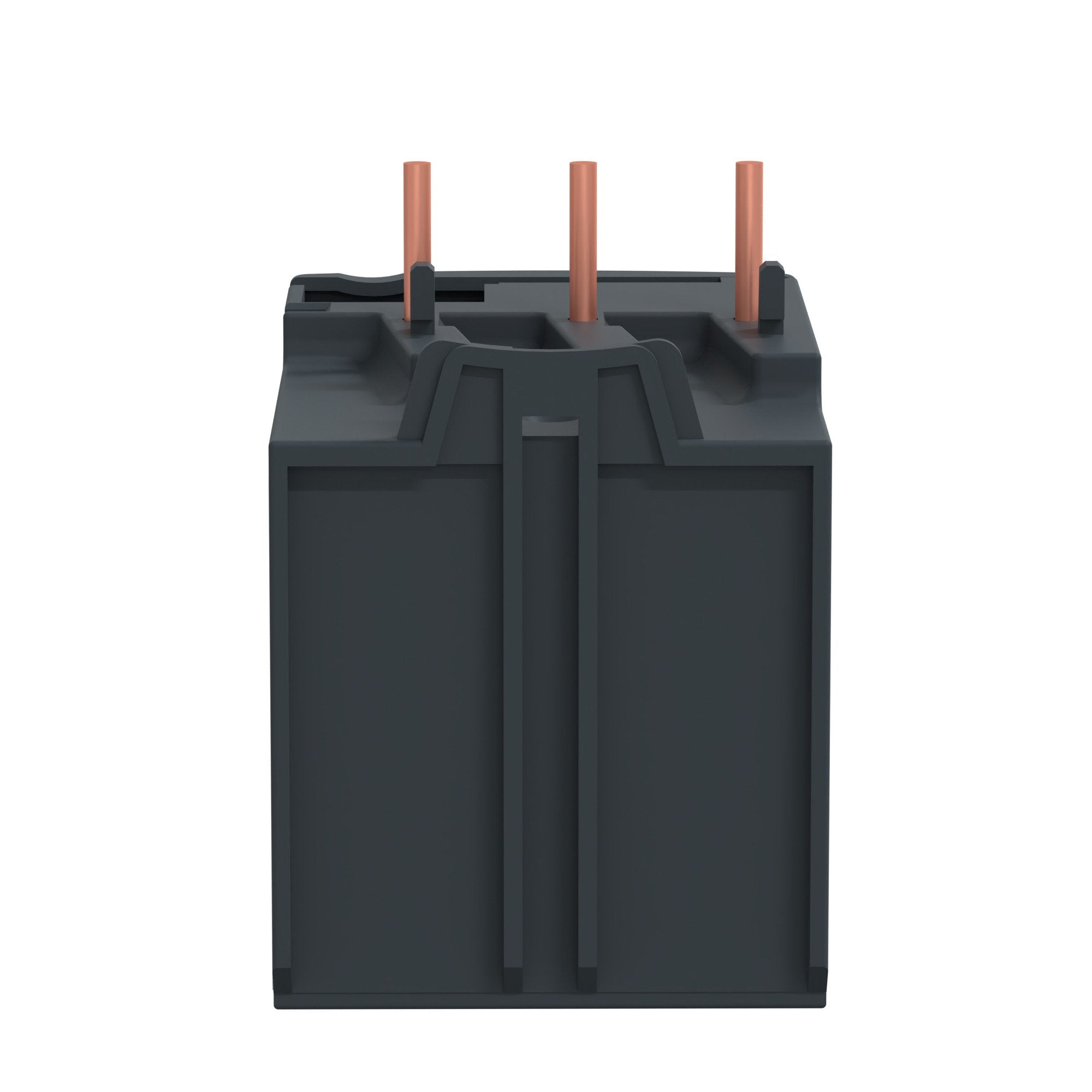

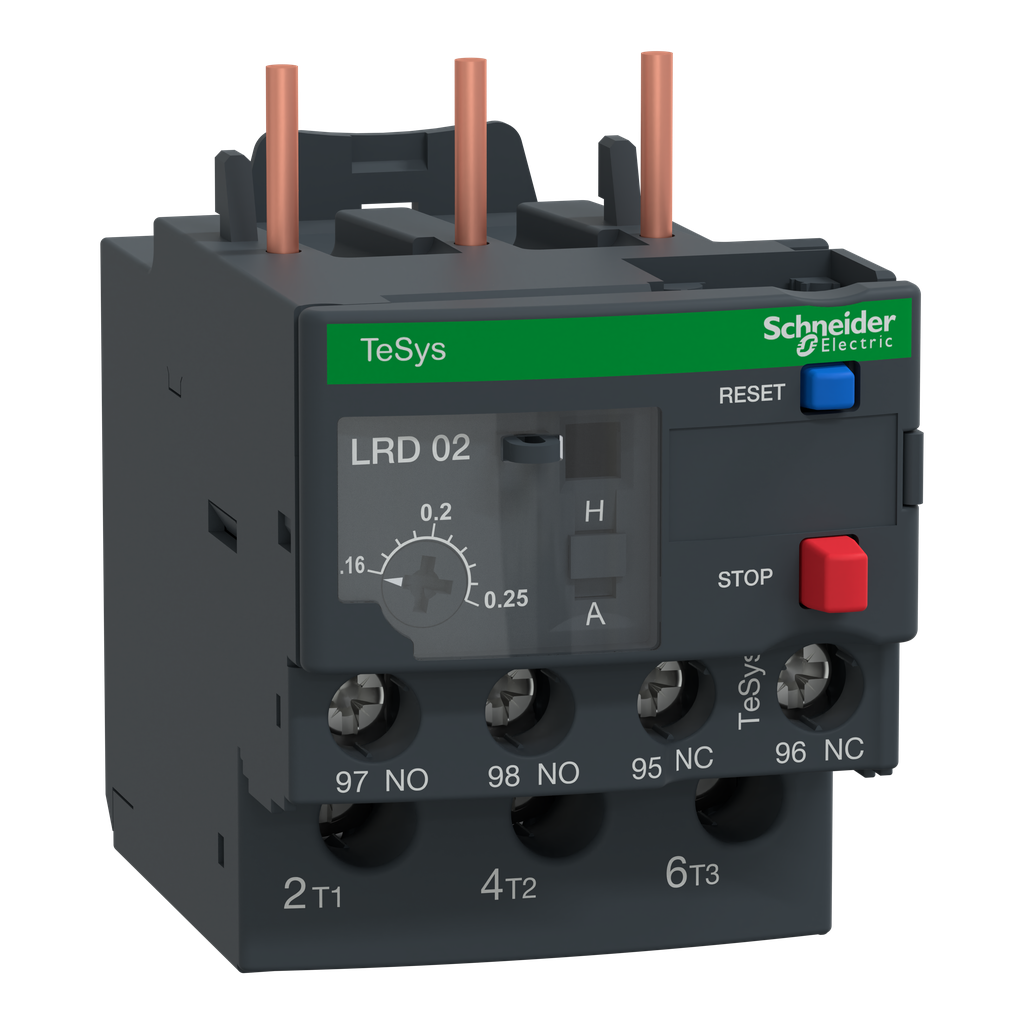

Schneider Electric LRD02 Square D 600 Volt 0.25 Amp 3-Pole Thermal Overload Relay

Product Description

Schneider Electric LRD02 is a thermal overload relay designed for use with TeSys D contactors. This relay protects motors rated up to 0.06 kilowatts at 400 volts. It has a thermal setting range of zero point sixteen to zero point twenty-five amps, a tripping class of ten amps, and features phase unbalance protection.

• Direct mounting on TeSys D contactors
• Manual test and reset buttons
• Multi-standards certified: IEC, UL, CSA

Product Highlights

The LRD02 provides reliable thermal overload protection and is compatible with various motor control applications. It ensures operational safety through features like trip auxiliary contacts and a flag indicator.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LRD02
• Voltage: 690 Volt
• Trip Type: Thermal Ambient Compensated Bi-Metallic
• Number of Poles: 3 Pole
• Width: 1.77 inches
• Height: 2.60 inches
• Depth: 2.76 inches
• Weight: 0.27 lb
• Applications: Motor protection for various TeSys contactors
• Reset Type: Manual or Automatic
• Country of Origin: Mexico
