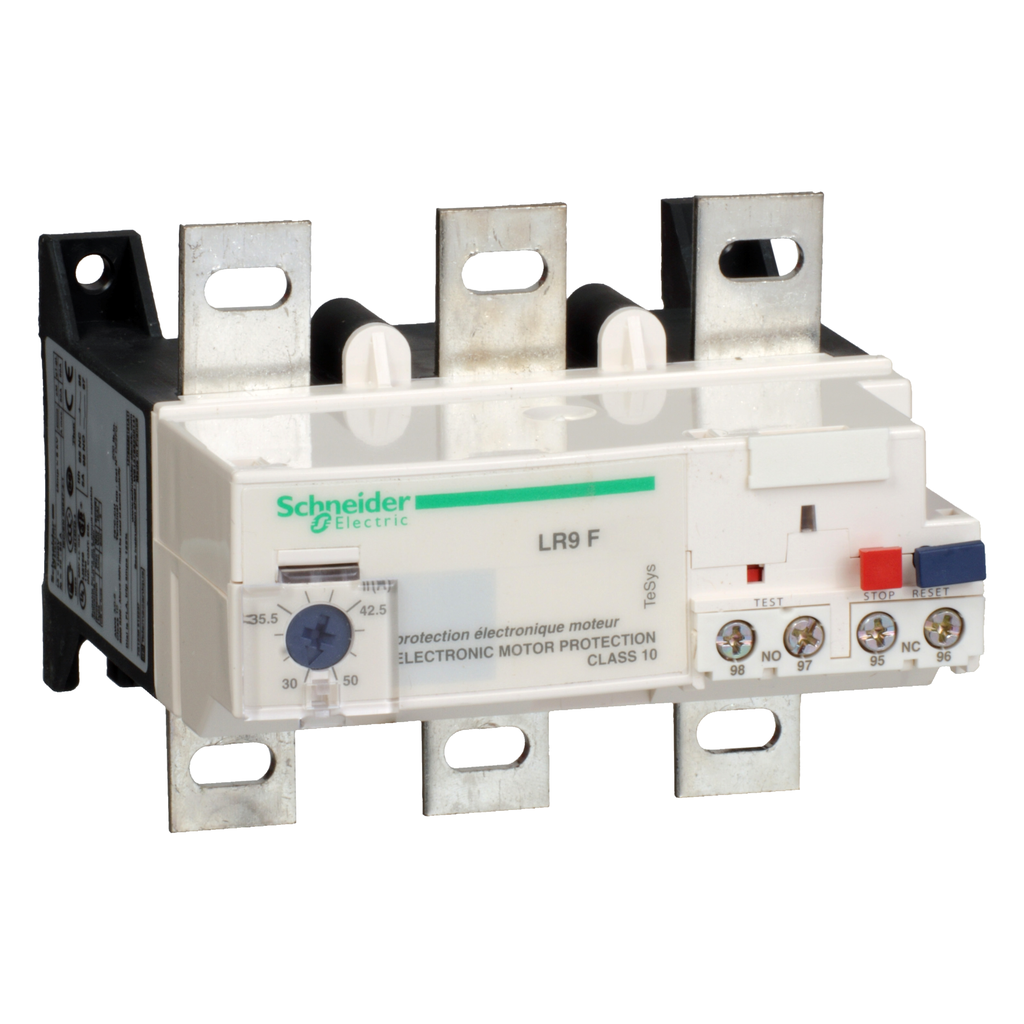

Schneider Electric LR9F5371 Square D 600 Volt 220 Amp 1NO 1NC Screw Clamp Terminal Solid State Thermal Overload Relay

Product Description

Schneider Electric LR9F5371 is an electronic thermal overload relay designed for motor protection in the range of one hundred thirty-two to two hundred twenty amps. It is suitable for motors rated at ninety to one hundred ten kilowatts at four hundred volts. It mounts directly below specific TeSys F three-pole contactors such as LC1 F185, F225, and F265, with the optional support mounting plate LA7F901 available separately. This relay safeguards motors from thermal overload and phase failures, ensuring operational reliability.

• Current range: 132-220 A
• Phase protection for 1-phase and 3-phase motors
• Complies with multiple international standards (IEC, UL, CSA)

Product Highlights

The LR9F5371 relay features a thermal adjustment dial and test/reset buttons for ease of use. It also comes with auxiliary contacts configured as one normally open and one normally closed, allowing for versatile applications. This product is Green Premium compliant, meeting environmental standards.

Product Information

Standard Information

• Catalog Number: LR9F5371
• Manufacturer: Schneider Electric

Technical Specifications

• GTIN: 03389110566017
• Type: Electronic thermal overload relay
• Height: 101 mm
• Width: 115 mm
• Depth: 123.5 mm
• Weight: 2.09 lb
• Rated Power: 100 VA
• Voltage: 1000 Volt
• Operating Temperature: -20 to 55 degrees C
• Reset Type: Manual (or remote with module sold separately)
