Schneider Electric LR9D08 Square D 690 Volt 1.6 to 8 Amp Screw Clamp Terminal Thermal Electronic Overload Relay

Product Description

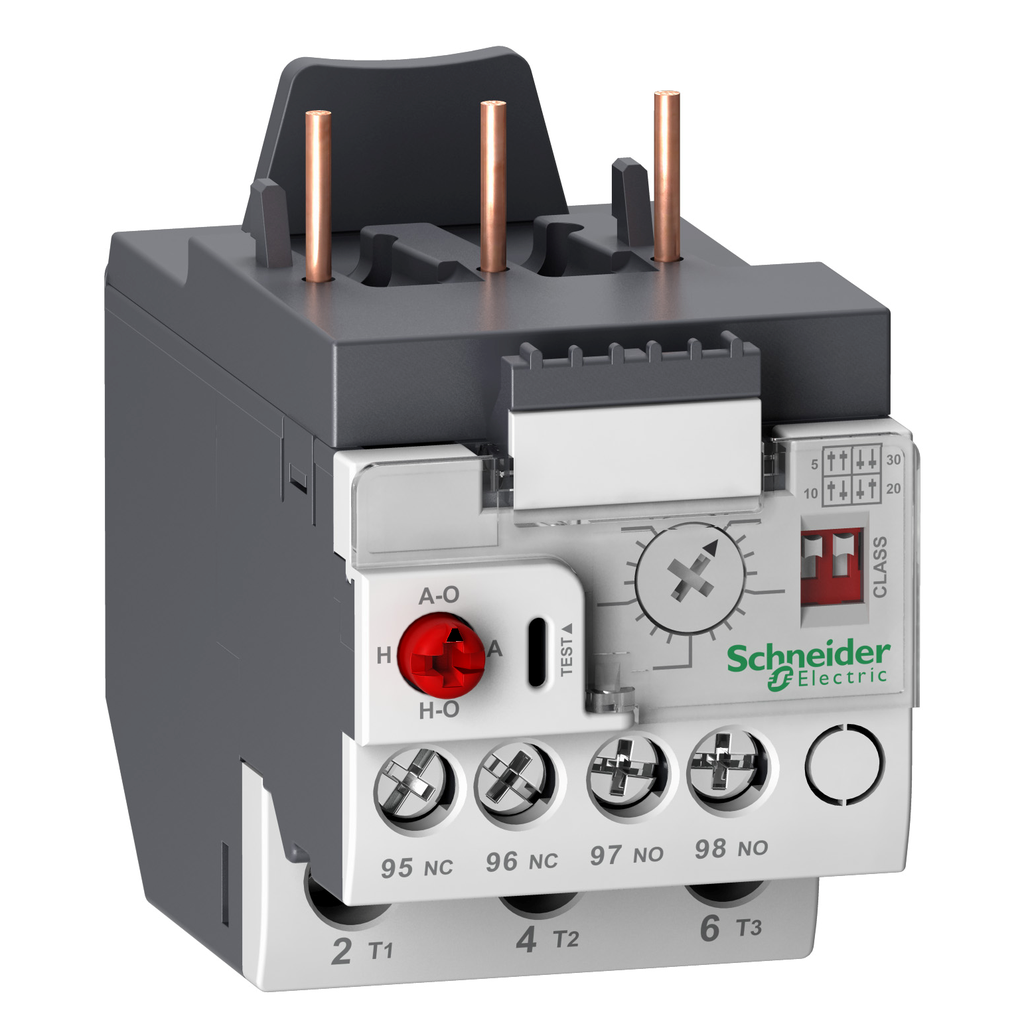

The Schneider Electric LR9D08 is an electronic overload relay designed for use with TeSys D contactors. This relay operates at a voltage of six hundred ninety volts and within a thermal setting range of 1.6 to 8 amps. It features selectable tripping classes of five, ten, twenty, and thirty. The LR9D08 also includes phase failure detection and load unbalance protection, safeguarding three-phase motors from overcurrent. It connects using screw clamp terminals directly to the bottom of three-pole contactors like the LC1D09 through LC1D38. The relay's compact design allows for mounting on DIN rail or fixed by screw.

• Thermal setting range of 1.6 to 8 amps.
• Selectable tripping classes of 5, 10, 20, 30.
• Phase unbalance detector for enhanced motor protection.

Product Highlights

This product is ideal for protecting motors ranging from one point one to two point two kilowatts at four hundred volts. It offers high accuracy with temperature compensation and is designed with a manual test button, reset options, and fault signaling features.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR9D08
• Voltage: 690 Volt
• Weight: 0.40 lb
• Width: 2.85 inches
• Height: 1.77 inches
• Depth: 3.15 inches
• GTIN: 03606485420943
• Control Type: Manual reset and automatic reset with test buttons.
• Country of Origin: China
• Certifications: UL, CSA, IEC, CCC
