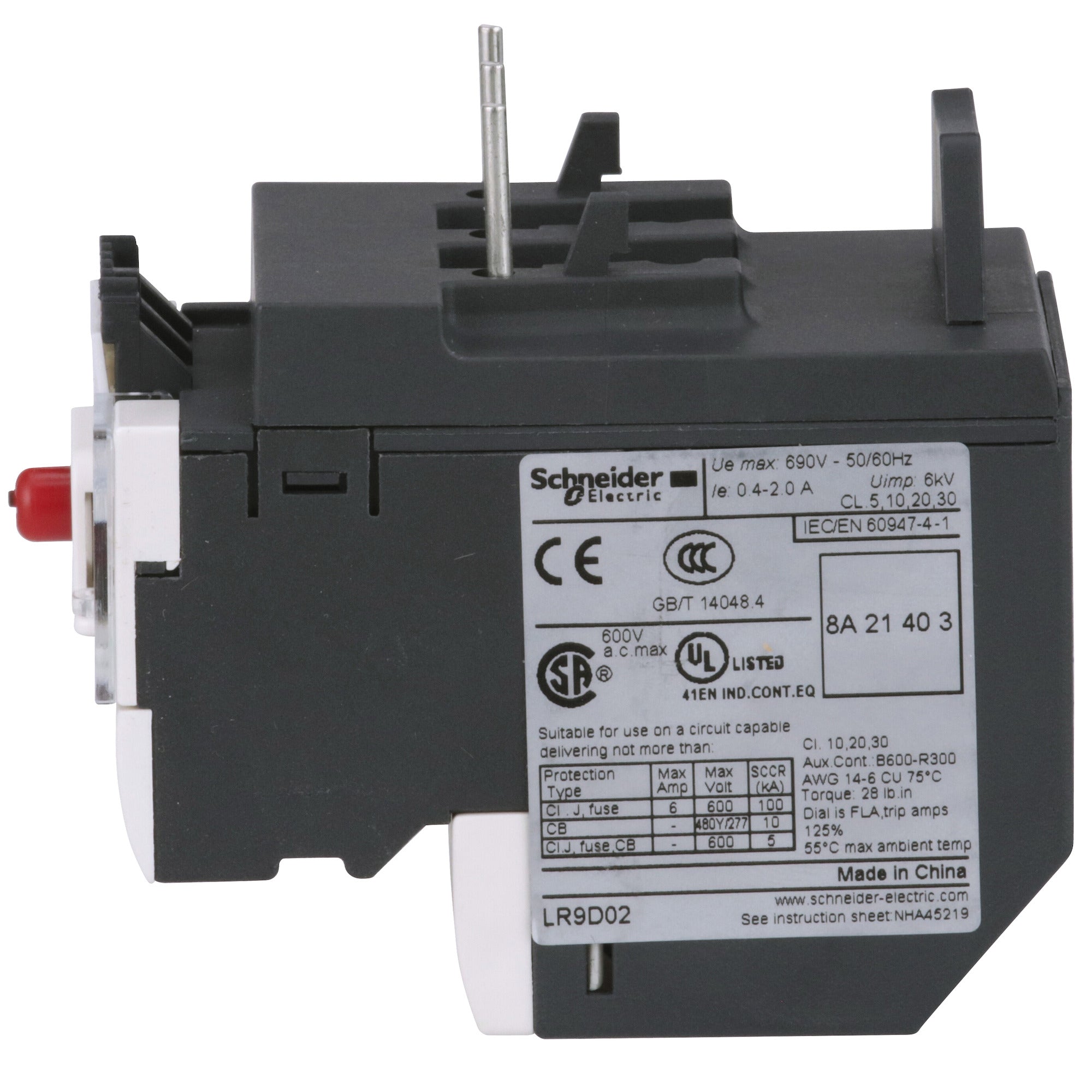

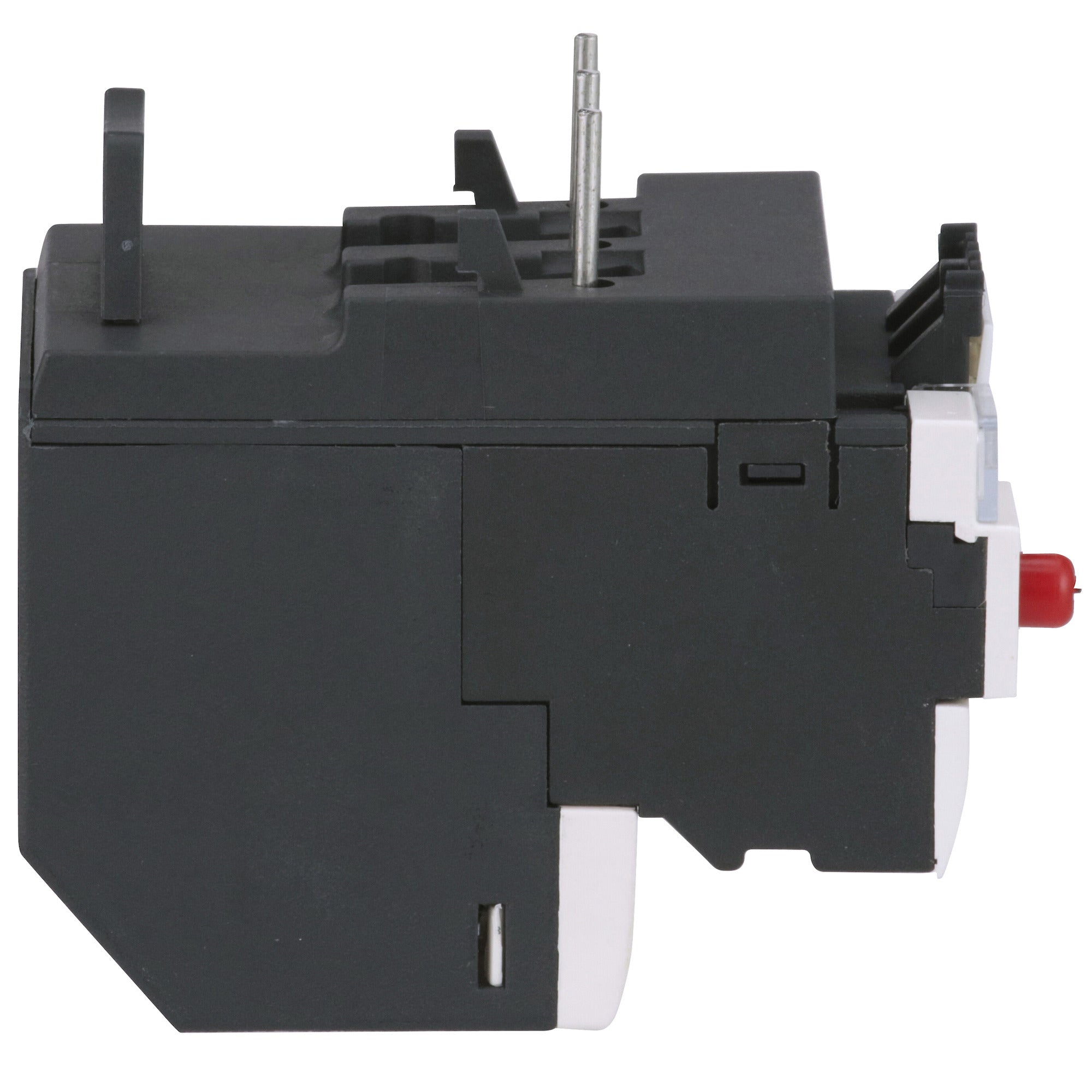

Schneider Electric LR9D02 Square D LR9D02 600 Volt 0.4 to 2 Amp Screw Clamp Terminal Thermal Electronic Overload Relay

Product Description

The Schneider Electric LR9D02 is a thermal electronic overload relay. Rated for 600 volts and a current range of zero point four to two amps, this device is suitable for protecting three-phase motors ranging from zero point twelve to zero point seventy-five kilowatts at four hundred volts. It features a selectable tripping class of five, ten, twenty, or thirty, allowing for tailored protection based on application needs.

• Compatible with TeSys D contactors for direct mounting
• Phase failure and load unbalance detection
• Multi-standards certified (IEC, UL, CSA)

Product Highlights

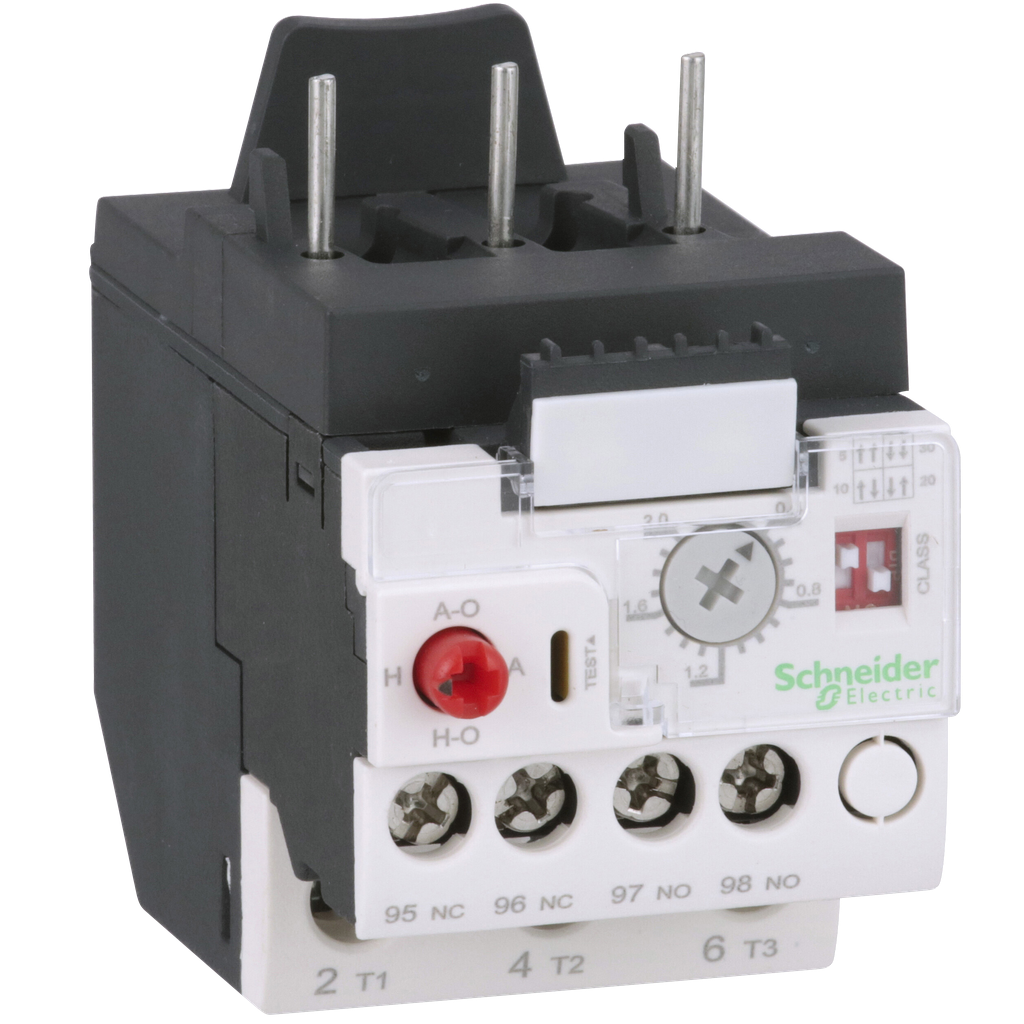

Designed for easy installation with screw clamp terminals, the LR9D02 ensures reliable performance in various industrial settings. It has a thermal adjustment dial and manual control features including test and reset buttons for ease of use.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR9D02
• Voltage: 600 Volt
• Current Range: 0.4 to 2 Amp
• Width: 1.77 inches
• Height: 2.86 inches
• Depth: 3.15 inches
• Weight: 0.40 lb
• Operating Temperature: -25 to 70 degrees Celsius
• Storage Temperature: -55 to 80 degrees Celsius
• Standards: CSA C22.2 No 60947-4-1, UL 60947-4-1, IEC 60947-4-1
