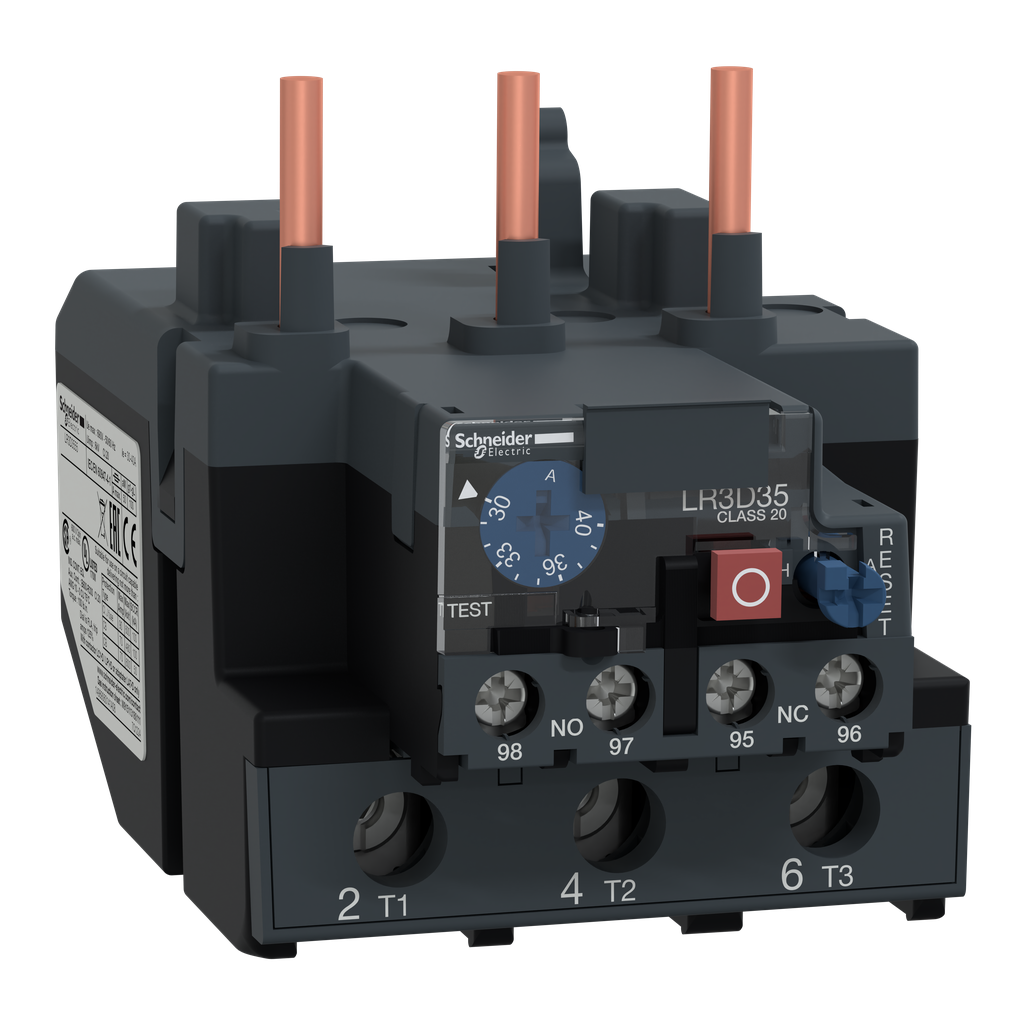

Schneider Electric LR3D3555 Square D 600 Volt 30 to 40 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR3D3555 is a thermal overload relay designed for use with TeSys D contactors. This relay offers reliable protection for motors rated up to eighteen point five kilowatts at four hundred volts, within a thermal range of thirty to forty amps. It features a tripping class of twenty, making it suitable for applications with unbalanced loads.

• Directly mounts on TeSys D contactors for ease of use.
• Manual test and reset buttons with an option for automatic reset.
• Covers multiple standards with certifications including IEC, UL, CSA, and more.

Product Highlights

This relay integrates smoothly into control systems and is compliant with Green Premium standards, ensuring environmental safety.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR3D3555
• Type: Non differential thermal overload relay
• Voltage: 690 Volt
• Weight: 1.18 lb
• Depth: 121 mm
• Width: 75 mm
• Operating Temperature: -20 to 60 degrees C
• Certifications: CSA, UL, IEC
