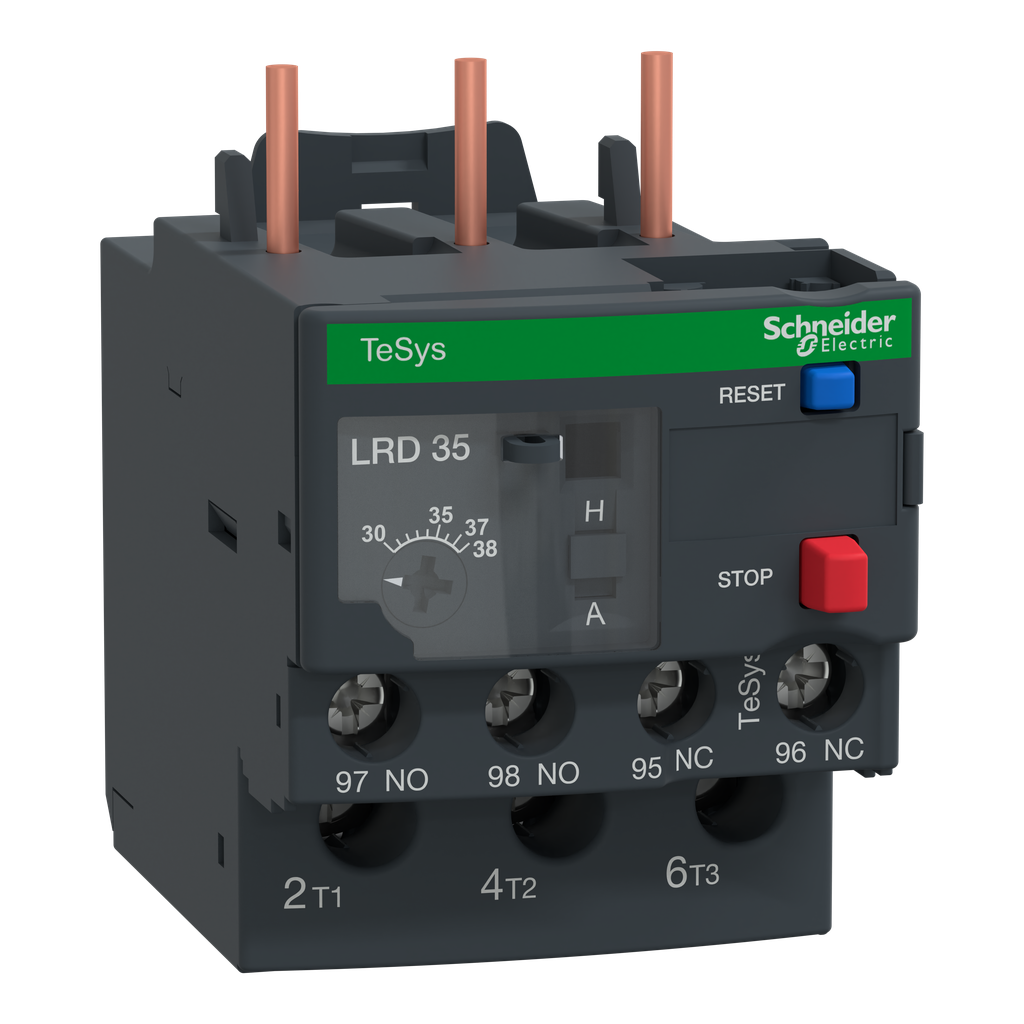

Schneider Electric LR3D35 SQUARED LR3D35 TeSys Deca thermal overload relay 30-38 A CLASS 10A

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: LR3D35
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schneider Electric LR3D35 is a TeSys LRD thermal overload relay designed for use with TeSys D contactors. It is suitable for protecting motors with a power rating of fifteen to eighteen point five kilowatts at four hundred volts, thanks to its adjustable thermal range of thirty to thirty-eight amperes and a tripping class of ten A.

  • Protects unbalanced loads
  • Directly mounts onto TeSys D contactors
  • Includes manual test and reset buttons

Product Highlights

This compact relay ensures reliable motor protection and features a manual and automatic reset option. It signals trips with an auxiliary contact and a flag indicator. Its multi-standard certification (IEC, UL, CSA, CCC, EAC, Marine) ensures it meets global standards.

Product Information

Standard Information

  • Brand: Schneider Electric
  • Manufacturer: Square-D / Schneider
Technical Specifications
Catalog Number
LR3D35
Thermal Range
30-38 A
Tripping Class
10 A
Voltage
690 Volt
Dimensions
2.76 in width, 2.76 in depth, 6.5 in height
Weight
0.27 lb
Temperature Operating Range
-20 to 60 degrees C
Warranty
18 months
