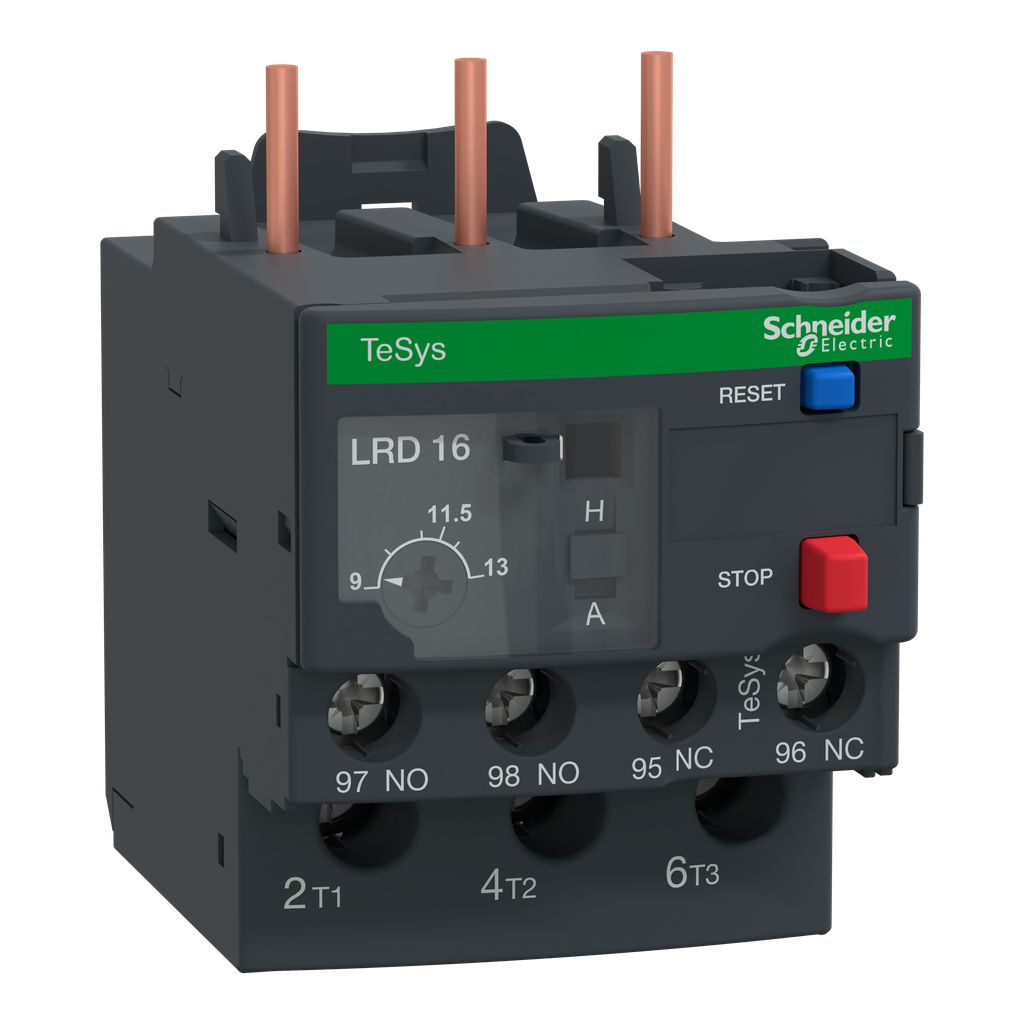

Schneider Electric LR3D16 Square D 600 Volt 16 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR3D16 is a thermal overload relay designed for direct use with TeSys D contactors. It has a thermal setting range of nine to thirteen amps and is ideal for protecting motors with a power rating of five point five kilowatts at four hundred volts. This relay is specifically engineered for unbalanced loads, ensuring reliable motor protection.

• Thermal overload relay with a range of nine to thirteen amps
• Suitable for motors up to five point five kilowatts at four hundred volts
• Multi-standard certified for various global standards

Product Highlights

This relay comes with manual test and reset buttons, an automatic reset feature, and a trip auxiliary contact. Its design includes a flag indicator for easy status identification, making it user-friendly in various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR3D16
• Voltage: 690 Volt
• Number of Poles: 3 Pole
• Weight: 0.27 lb
• Height: 66 mm
• Width: 45 mm
• Depth: 70 mm
• Operating Temperature: -20C to 60C
