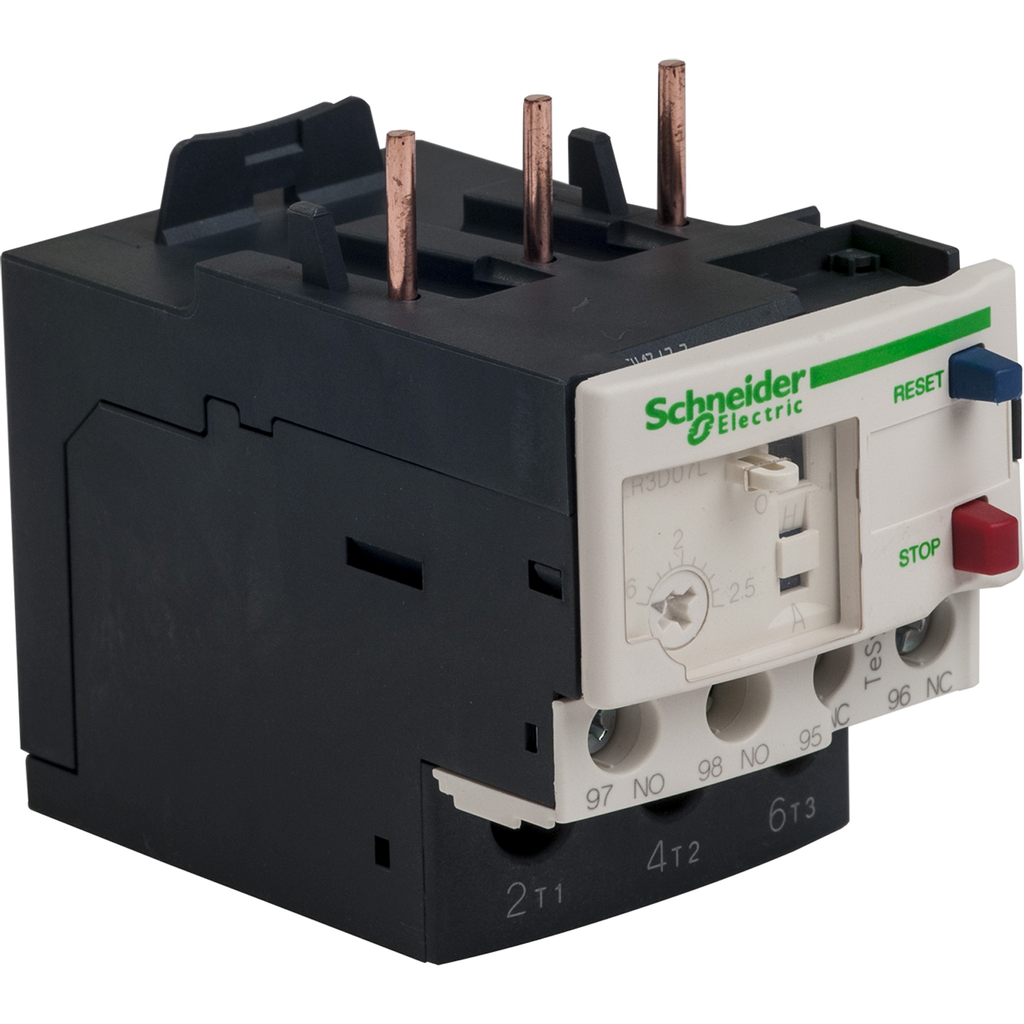

Schneider Electric LR3D07L SQD LR3D07L Thermal overload relay 690 Volt (1.6 to 2.5A) Replacement MPN LR3D07L

Product Description

Schneider Electric LR3D07L is a thermal overload relay designed for use with TeSys D contactors. It protects motors up to zero point seventy-five kilowatts at four hundred volts with a thermal setting range of one point six to two point five amperes. Designed for unbalanced loads, this relay has a tripping class of 20.

• Directly mounts on TeSys D contactors
• Automatic and manual reset options with integrated test buttons
• Multi-standard certifications including IEC, UL, CSA

Product Highlights

This overload relay offers reliable protection for motors against overheating, ensuring smooth operation in various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR3D07L
• Type: Non differential thermal overload relay
• Voltage: 690 Volt
• Thermal Range: 1.6 to 2.5A
• Tripping Class: 20 conforming to IEC 60947-4-1
• Dimensions: Width 45 mm, Height 66 mm, Depth 76 mm
• Weight: 0.32 lb
• Country of Origin: Thailand
