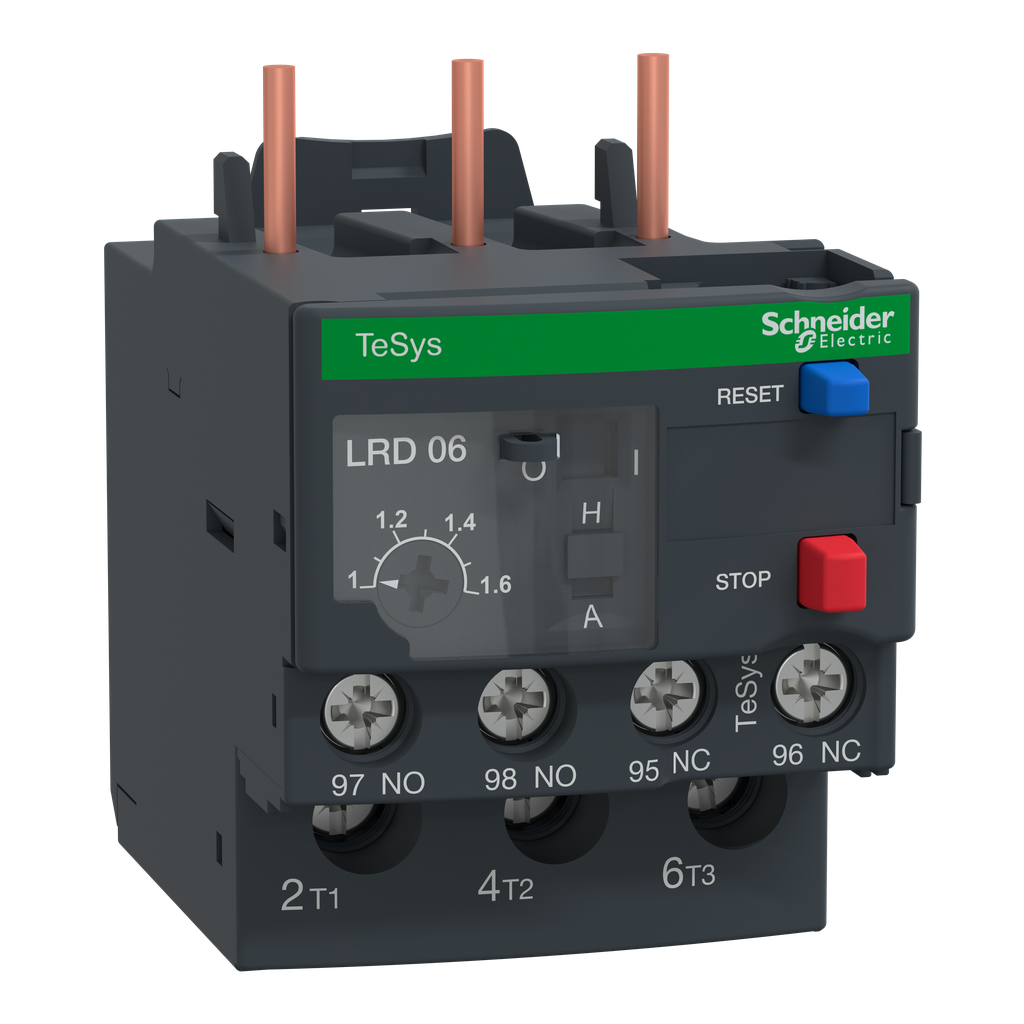

Schneider Electric LR3D066 TeSys Deca thermal 1.6 A class 10A

Product Description

Schneider Electric LR3D066 is a TeSys Deca thermal overload relay designed for protection of three-phase motors. This device operates at a thermal setting range of one to 1.6 amperes at a voltage of up to 690 volts. The thermal overload relay has a tripping class of 10A and can help safeguard motors rated at 0.55 kW at 400 volts. It features a non-differential design, making it suitable for unbalanced loads.

• Thermal adjustment dial for setting
• Manual-automatic reset selector
• Two auxiliary contacts for fault signaling

Product Highlights

This relay provides a transparent cover that protects settings and can be locked for security. It connects directly to screw clamp terminals at the bottom of the LC1D09-D38 contactors and can be mounted either on a DIN rail or via screw fixing. The device is compatible with various standards including IEC, UL, and ATEX.

Product Information

Standard Information

• Catalog Number: LR3D066
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Non-differential thermal overload relay
• Depth: 70 mm
• Width: 45 mm
• Height: 66 mm
• Weight: 0.27 lb
• Voltage: 690 Volt
• Country of Origin: France
• Warranty Length: 18 months
