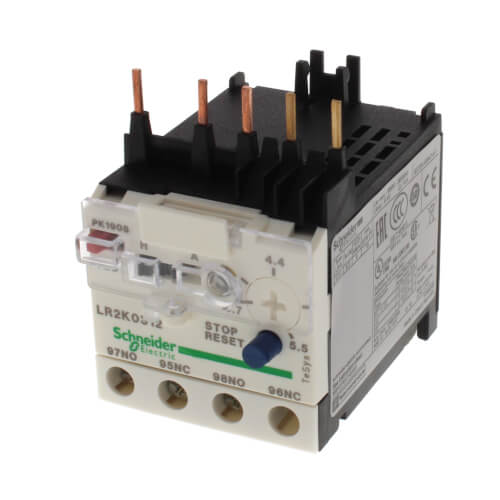

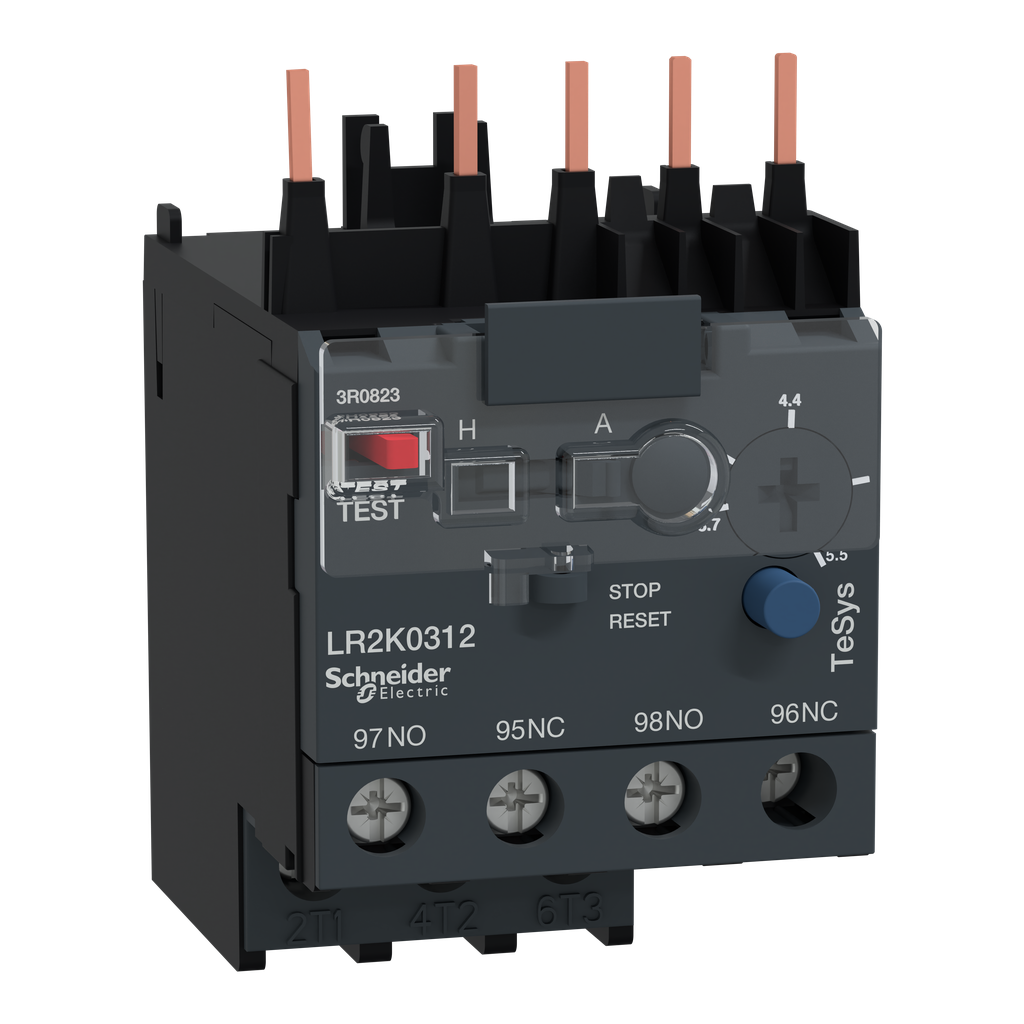

Schneider Electric LR2K0312 Square D 600 Volt 5.5 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR2K0312 is a thermal overload relay designed for motor protection. This overload relay operates in a range of three point eight to five point five amperes, making it suitable for various applications. It connects with TeSys K contactors to create a motor starter, ensuring safe operation during overcurrent conditions.

• Adjustable trip current from three point seven to five point five amperes.
• Multi-standard certified including IEC, UL, and CSA.
• Suitable for mounting on a DIN rail away from contactors.

Product Highlights

This overload relay is essential for protecting motors against damage due to overheating or excessive current. Its thermal and ambient compensated bi-metallic structure is reliable in industrial environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: LR2K0312
• Voltage: 600 Volt
• Current Range: 3.8 to 5.5 Amp
• Number of Poles: 3 Pole
• Weight: 0.32 lb
• Dimensions: 2.56 in x 3.45 in x 1.95 in (Length x Width x Height)
• Country of Origin: Czech Republic
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -40°C to 70°C
