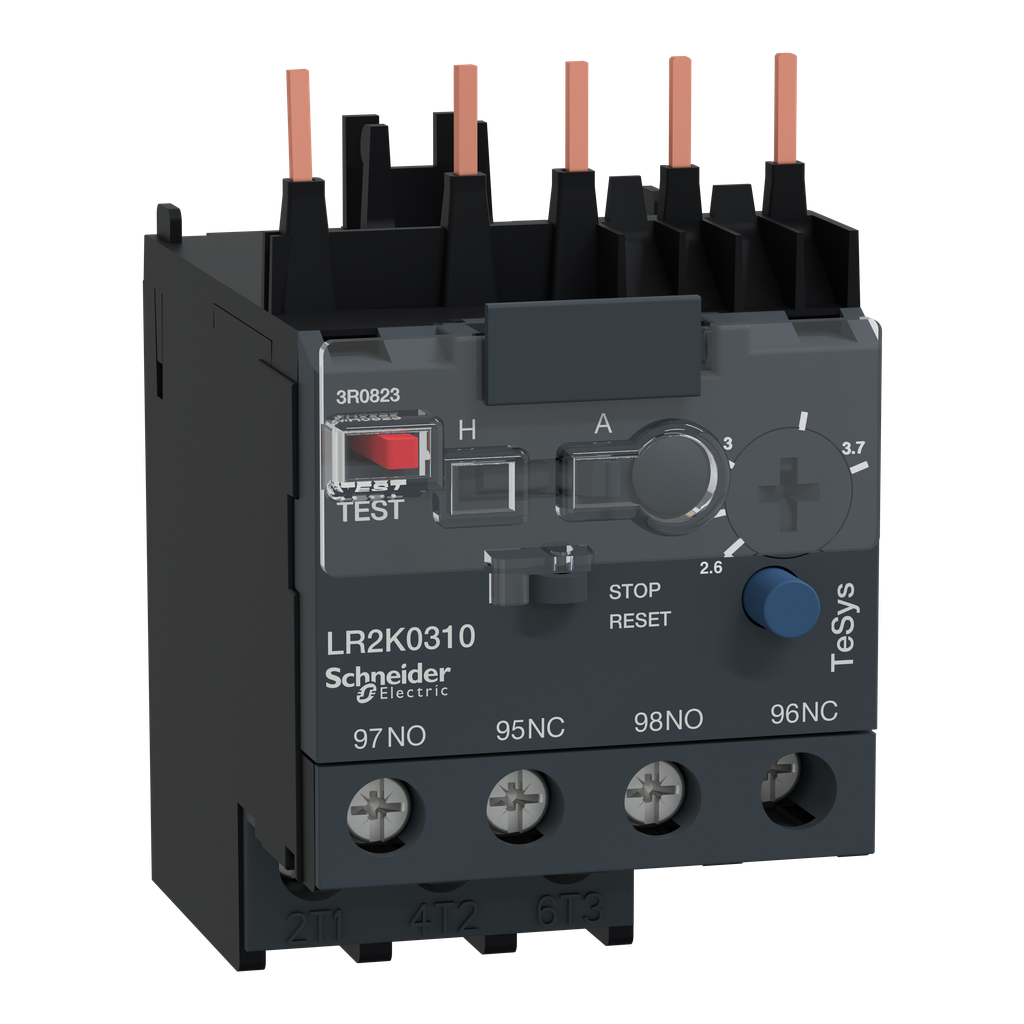

Schneider Electric LR2K0310 3.7 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR2K0310 is a thermal overload relay designed to protect electrical circuits from overloads and short circuits. It operates at a current range of two point six to three point seven amperes at six hundred volts. This relay is essential for the protection of three-phase motors rated between one point one and one point five kilowatts at four hundred volts.

• Adjustable thermal setting range of two point six to three point seven amperes.
• Incorporates a tripping class of 10A for reliable performance.
• Features a manual-automatic reset selector and a test slide switch for simulation of tripping.

Product Highlights

This relay includes a thermal adjustment dial and auxiliary contacts for signalling faults. Its design allows for connection using screw clamp terminals and fits directly onto the bottom terminals of compatible contactors. The device is certified to multiple standards, including IEC, UL, and CSA, ensuring safety and compliance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• MPN: LR2K0310
• Voltage: 600 Volt
• Current Rating: 2.6 - 3.7 Amperes
• Trip Class: 10A
• Number of Poles: 3 Pole
• Weight: 0.32 lb
• Height: 2.56 inches
• Width: 1.77 inches
• Depth: 2.28 inches
• Country of Origin: Czech Republic
• Warranty Duration: 18 months
