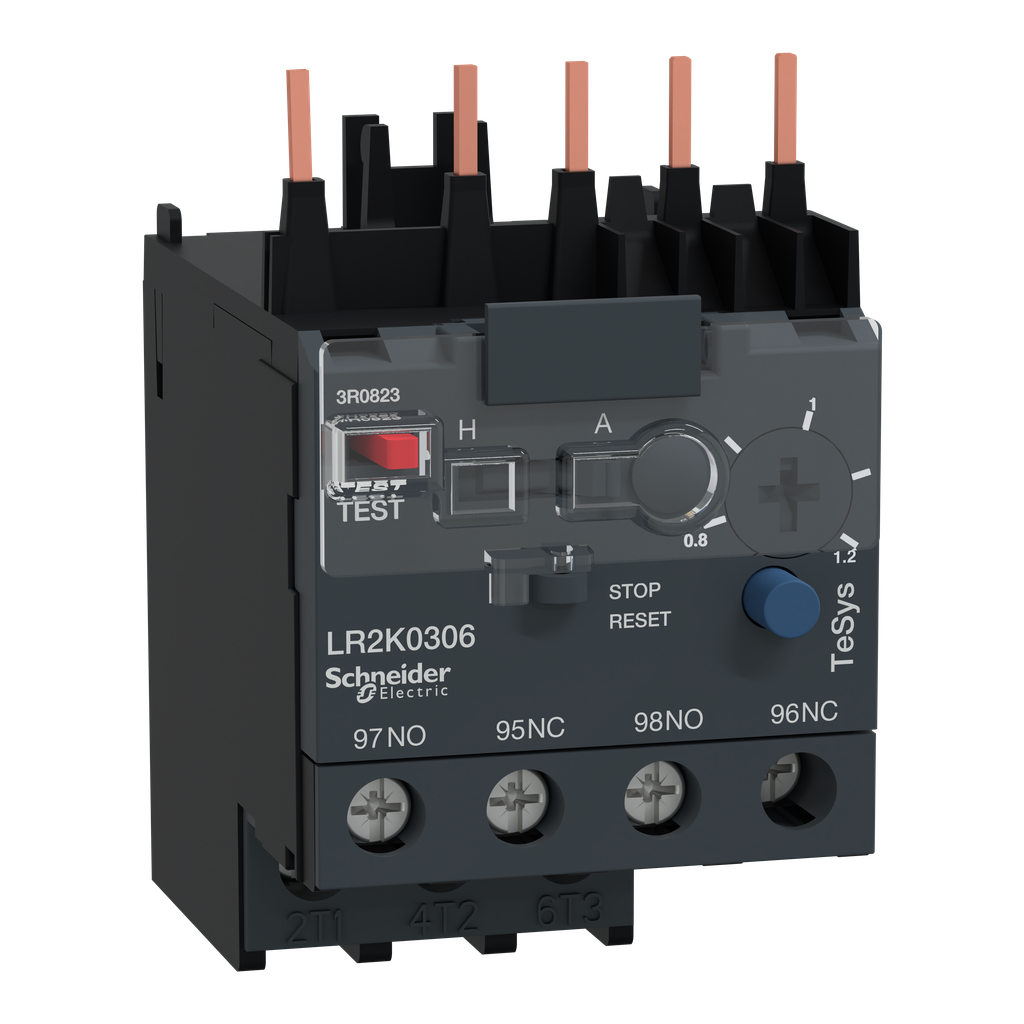

Schneider Electric LR2K0306 Square D 600 Volt 1.2 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR2K0306 is a thermal overload relay used with TeSys K contactors. This device provides thermal protection for motors rated between 0.25 and 0.37 kilowatts at four hundred volts. It features a thermal setting range from zero point eight to one point two amps and a class ten tripping characteristic. The relay also includes phase unbalance protection, manual test and reset buttons, an automatic reset function, and a trip auxiliary contact with a flag indicator.

• Thermal range: 0.8-1.2 A
• Tripping class: 10A
• Phase unbalance protection

Product Highlights

This device is lightweight and compact, measuring forty-five millimeters in width. It can be mounted directly on the bottom terminals of TeSys contactor models LC1K06 to create a compact starter. This multi-standard certified relay is suitable for various applications and compliant with Green Premium standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR2K0306
• Type: Differential thermal overload relay
• Weight: 0.32 lb
• Operating Temperature: -20°C to 55°C
• Country of Origin: Czech Republic
• Voltage: 250 Volt
• Number of Poles: 3 Pole
• Reset Type: Manual or Auto
• Applications: Motor protection for LC1K; LC7K; LP4K; LP1K
