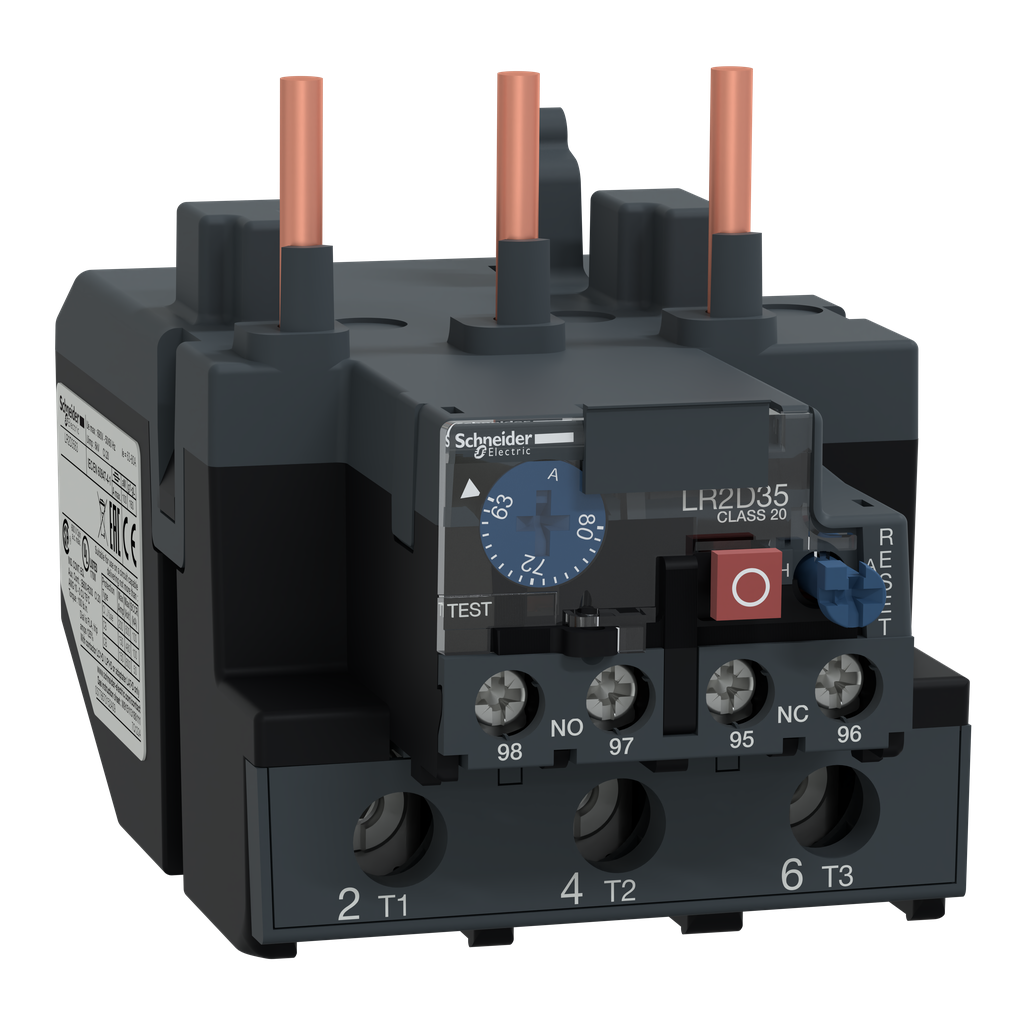

Schneider Electric LR2D3563 Square D 600 Volt 80 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

The Schneider Electric LR2D3563 is a thermal overload relay designed for use with a TeSys D contactor. This device protects motors with a power rating of thirty-seven kilowatts at four hundred volts. It has a thermal setting range from sixty-three to eighty amps and features phase unbalance detection. The relay is compact and can be mounted directly on TeSys D contactors. It offers manual test and reset buttons, along with automatic reset functionality, making it suitable for various industrial applications.

• Protects motors rated at thirty-seven kilowatts at four hundred volts.
• Features trip auxiliary contact and flag indicator.
• Multi-standard certified for IEC, UL, CSA, and more.

Product Highlights

This relay provides reliable thermal protection and is easy to install on contactors.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LR2D3563
• Voltage: 1000 Volt
• Trip Type: Thermal - Ambient Compensated Bi-Metallic/Differential Class 20
• Number of Poles: 3 Pole
• Weight: 1.18 lb
• Width: 4.76 in
• Depth: 121 mm
• Height: 100 mm
• Country of Origin: France
