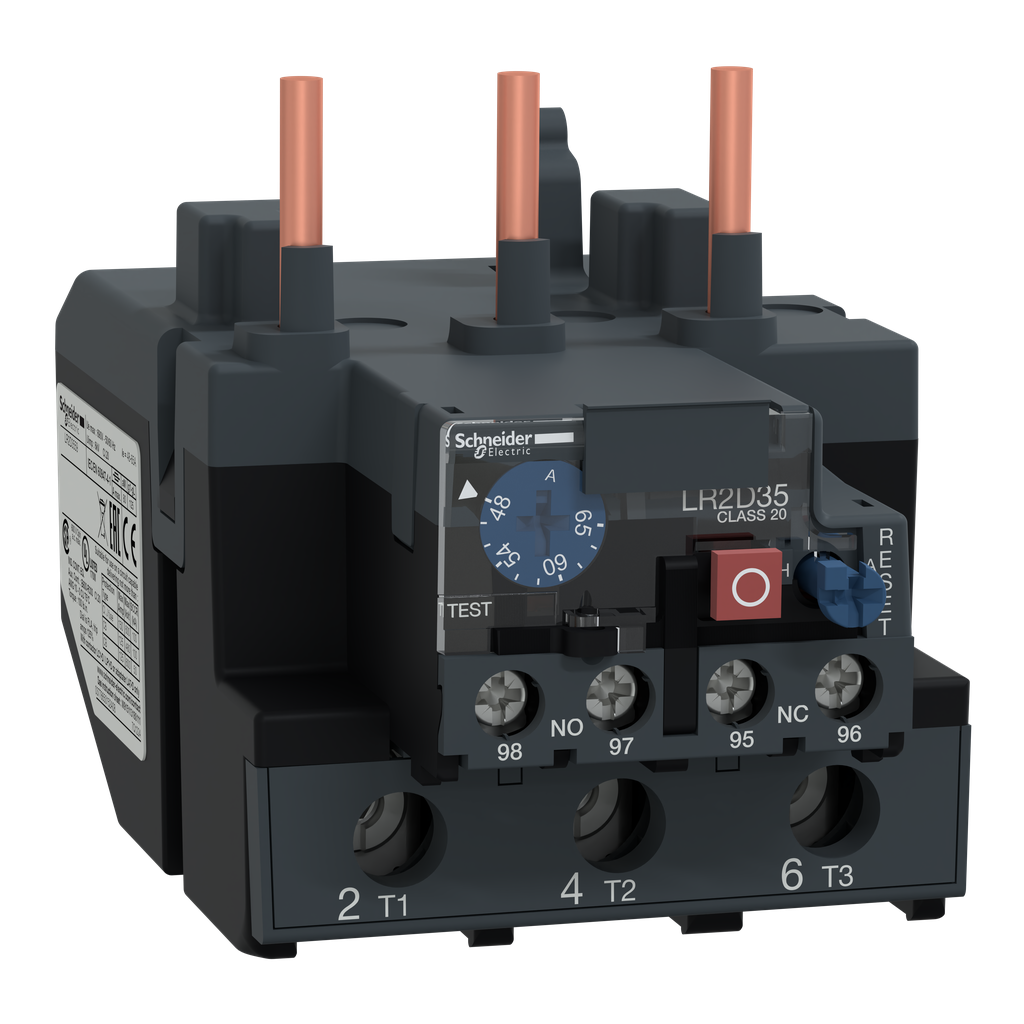

Schneider Electric LR2D3559 Thermal Overload Relay 65 Amp 3-Pole 600 Volt

Product Description

The Schneider Electric LR2D3559 is a thermal overload relay designed for use with TeSys D contactors. It protects motors with a power rating of up to thirty kilowatts at four hundred volts. The relay features a thermal setting range of forty-eight to sixty-five amps and conforms to a tripping class of twenty.

• Compatible with direct mounting on TeSys D contactors.
• Includes a trip auxiliary contact and a flag indicator.
• Supports multiple standards including IEC, UL, and CSA.

Product Highlights

This product offers reliable overload protection for motor systems, ensuring they operate safely under various conditions. It includes manual test and reset buttons, with an automatic reset option available.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LR2D3559
• Voltage: 600 Volt
• Current Rating: 65 Amp
• Number of Poles: 3 Pole
• Weight: 1.18 lb
• Dimensions: 4.75 in x 3.6 in x 3.25 in
• Trip Type: Thermal - Ambient Compensated Bi-Metallic
• Country of Origin: Mexico
