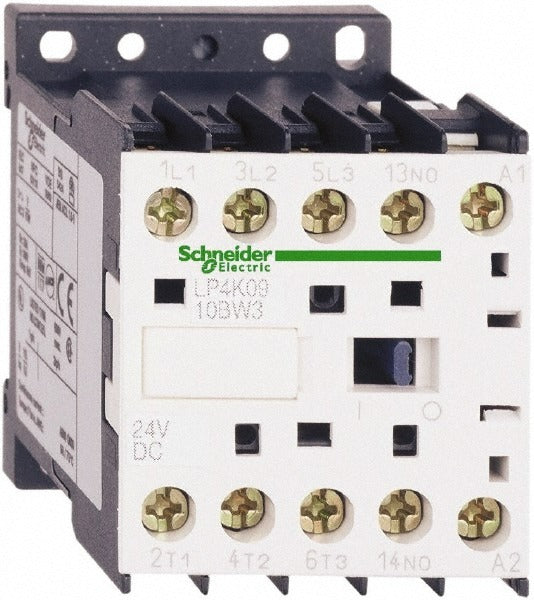

Schneider Electric LP4K0910BW3 Iec Contactor 3 Pole

Product Description

The SCHNEIDER ELECTRIC LP4K0910BW3 is a 3-pole IEC-style power contactor designed for controlling motor loads and other electrical circuits in industrial and commercial control panels. It operates on a 24 VDC coil voltage and features a normally open (NO) auxiliary contact configuration in a non-reversible arrangement. Rated to IEC 60947 and UL Listed, this contactor is built for reliable switching duty in automation, HVAC, and motor-control applications. Licensed electricians and controls technicians install this device as part of motor starters, control circuits, and panel assemblies where dependable, code-compliant switching is required.

The LP4K0910BW3 suits residential and commercial electrical control applications where a compact, DIN-rail-compatible or panel-mount contactor is needed. Its 24 VDC coil makes it a natural fit for low-voltage control circuits common in building automation systems, HVAC equipment, and motor control centers. The three-pole configuration handles three-phase load switching in a space-efficient form factor measuring approximately 2.28 inches wide, 2.24 inches deep, and 2.28 inches tall.

Key Features

• 3-pole, non-reversible switching for three-phase or multi-leg load circuits
• 24 VDC coil voltage compatible with low-voltage control circuits
• Normally open (NO) auxiliary contact configuration
• UL Listed, CSA certified, and IEC 60947 compliant for broad application acceptance
• RoHS compliant construction
• Compact body fits tight panel layouts

Compatibility

Designed as an OEM-style replacement or new-installation IEC contactor suitable for industrial control panels, motor starter assemblies, and building automation control circuits requiring a 3-pole, 24 VDC coil device.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before installation or replacement. Verify coil voltage and pole configuration match the existing circuit design before wiring. Do not exceed the contactor rated load capacity as specified in the manufacturer datasheet.
