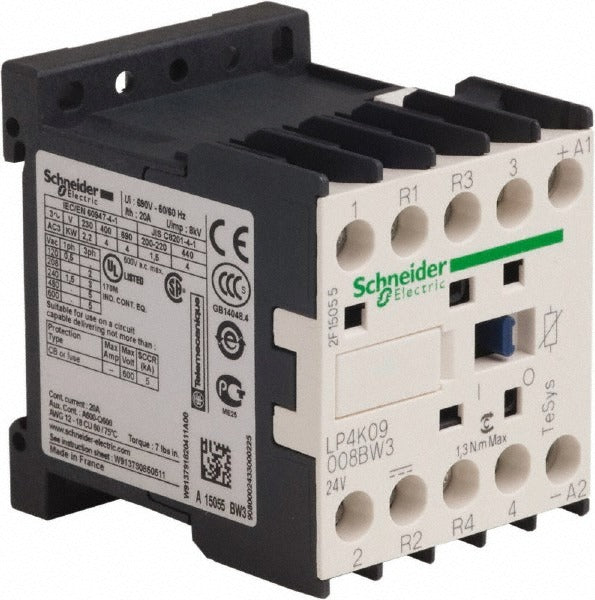

Schneider Electric LP4K09008BW3 Iec Contactor 4 Pole

Product Description

The SCHNEIDER ELECTRIC LP4K09008BW3 is a 4-pole IEC contactor with a 24 VDC control coil, designed for non-reversible motor control and load-switching applications in industrial and commercial electrical systems. It operates on direct-current coil excitation at 24 volts, making it compatible with low-voltage control circuits commonly used in automation panels and machinery. Licensed electricians and industrial controls technicians install this contactor as part of motor starters, control panels, and power distribution assemblies. The unit measures 2.6 inches in height, 2.4 inches in width, and 1.9 inches in length, with a compact footprint suited to dense panel layouts. It carries multiple certifications including UL Listed and RoHS Compliant status.

The LP4K09008BW3 is suited for commercial and industrial electrical installations where a compact, DIN-rail or panel-mount 4-pole contactor is required. Its non-reversible configuration is appropriate for single-direction motor loads, lighting circuits, and resistive or inductive load switching. This contactor is used in applications governed by IEC 60947 standards, common in industrial automation, HVAC control panels, pump control systems, and process equipment. It is not configured for reversing duty without additional external components.

Key Features

• 4-pole non-reversible configuration for single-direction load control
• 24 VDC control coil voltage for compatibility with low-voltage DC control circuits
• Compact dimensions at 2.6 x 2.4 x 1.9 inches for space-constrained panel installations
• UL Listed and RoHS Compliant for use in North American and international applications
• Meets IEC 60947, CSA, VDE 0660, BS 5424, and NF C 63-110 standards

Compatibility

Designed as an OEM-style replacement contactor for 4-pole IEC-rated control panel assemblies requiring a 24 VDC coil in non-reversible duty configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before removing or installing the contactor. Verify that the control circuit voltage matches the 24 VDC coil rating before energizing. Confirm that all load and control terminals are properly torqued to the enclosure manufacturer and panel assembly specifications.
