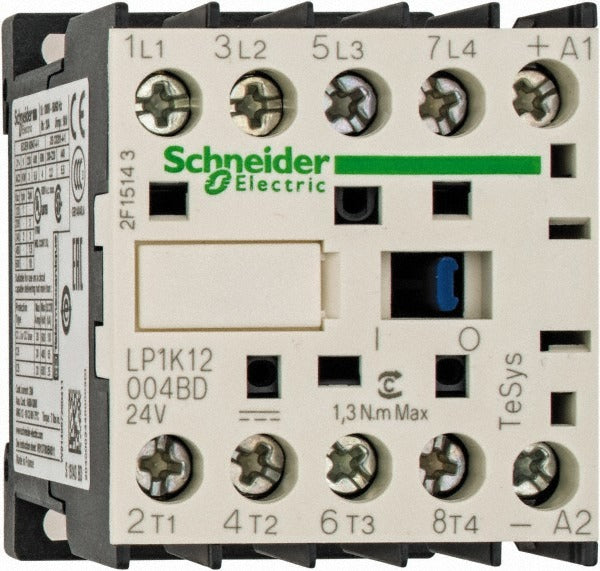

Schneider Electric LP1K12004BD Iec Contactor 4 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LP1K12004BD is a 4-pole IEC-rated contactor designed to control power circuits in industrial and commercial electrical systems. It operates on a 24 VDC coil voltage and is configured for non-reversible duty, making it suited for straightforward load switching applications. The contactor measures 1.9 inches in height, 2.4 inches in width, and 2.5 inches in depth, offering a compact footprint for panel and enclosure installations. Licensed electricians and industrial maintenance technicians are the primary installers. It carries UL Listed, CSA, RoHS, VDE 0660, and IEC 60947 certifications, confirming compliance with widely recognized North American and international standards.

The LP1K12004BD is appropriate for use in commercial and light industrial control panels where a compact, multi-pole contactor is needed for motor control, lighting, or resistive load switching. Its 4-pole configuration allows switching of three-phase or split-phase circuits with an additional pole available for auxiliary or neutral switching. The 24 VDC coil is commonly driven by low-voltage control circuits in automated and relay-logic-based systems.

Key Features

• 4-pole configuration for versatile multi-phase or auxiliary circuit switching
• 24 VDC coil voltage compatible with low-voltage DC control circuits
• Non-reversible action for standard single-direction load switching
• Compact body: 1.9 inches high, 2.4 inches wide, 2.5 inches deep
• UL Listed, CSA certified, IEC 60947 compliant, RoHS compliant, and VDE 0660 rated

Compatibility

Designed as an OEM-style replacement or new-installation IEC contactor for industrial and commercial control panel applications requiring a 4-pole, 24 VDC coil, non-reversible contactor conforming to IEC 60947 standards.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control circuit and all connected load circuits before handling or wiring the contactor. Verify coil voltage supply matches the 24 VDC rating before energizing. Secure all load and control terminals to manufacturer-specified torque values per the wiring documentation included with the unit.
