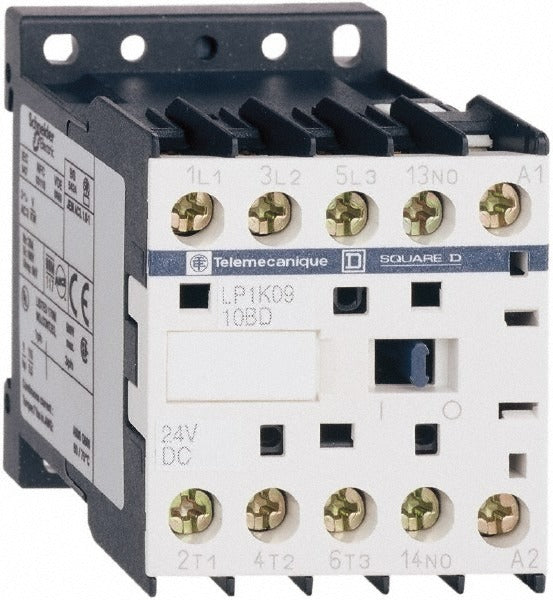

Schneider Electric LP1K0910BD3 Iec Contactor 3 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LP1K0910BD3 is a 3-pole IEC-style contactor with a 24 volt DC coil, designed for non-reversible motor control and power switching applications. It features a normally open (NO) auxiliary contact configuration and is rated for use in control panels and motor starters across industrial and commercial electrical systems. At 0.49 pounds, the compact footprint — 1.9 inches tall, 2.4 inches wide, and 2.5 inches deep — makes it well suited for tight panel installations. Licensed electricians and industrial control technicians are the primary installers of this device.

This contactor is appropriate for use in commercial and industrial control systems where IEC-standard components are specified. It is commonly installed in motor starter assemblies, HVAC equipment control panels, and machine control enclosures that require a 24 VDC coil voltage. The non-reversible configuration makes it suitable for single-direction motor loads and general switching duties where reversing contactors are not required.

Key Features

• 3-pole configuration for standard three-phase or multi-pole switching
• 24 volt DC coil voltage for direct integration with DC control circuits
• Normally open (NO) auxiliary contact configuration
• Non-reversible action for single-direction load control
• Compact design at 1.9 x 2.4 x 2.5 inches for space-constrained panel installations
• Meets multiple international standards including IEC 60947, UL Listed, CSA, RoHS Compliant, VDE 0660, and BS 5424

Compatibility

Designed as an OEM-style IEC contactor replacement for industrial and commercial control panel applications requiring a 3-pole, 24 VDC coil, non-reversible contactor conforming to IEC 60947 standards.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before removing or installing the contactor. Verify coil voltage and pole configuration match the existing control circuit before energizing. Do not exceed the contactor's rated load specifications during commissioning.
