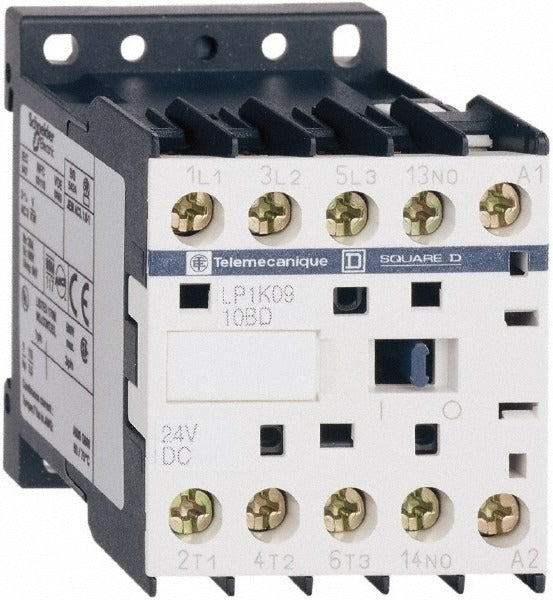

Schneider Electric LP1K0901BD Iec Contactor 3 Pole 24VDC

Product Description

The SCHNEIDER ELECTRIC LP1K0901BD is a 3-pole, non-reversible IEC contactor designed for motor control and power switching applications in industrial and commercial electrical systems. It operates on a 24 VDC coil voltage and includes a normally closed (NC) auxiliary contact configuration. With an overall footprint of 2.5 inches wide, 2.6 inches tall, and 1.9 inches deep, this contactor fits into standard control panel enclosures where space is limited. Licensed electricians and controls technicians install this device as part of motor starter assemblies, machine control circuits, and automated switching panels. It meets multiple international standards including UL Listed, CSA, IEC 60947, and RoHS compliance.

This contactor is suited for use in light industrial, commercial HVAC, and process control applications where low-voltage DC coil operation is required. The 24 VDC coil makes it compatible with common PLC and relay output circuits used in building automation and equipment control systems. The non-reversible, 3-pole design handles three-phase load switching in standard motor control center builds and standalone starter configurations. Installation is typically performed by licensed electricians following NEC guidelines for motor branch circuit and control wiring.

Key Features

• 3-pole, non-reversible design for standard three-phase motor control applications
• 24 VDC coil voltage compatible with PLC outputs and low-voltage control circuits
• Normally closed (NC) auxiliary contact included for interlocking and status signaling
• Compact dimensions: 2.5 inches wide, 2.6 inches tall, 1.9 inches deep
• Meets IEC 60947, UL Listed, CSA, VDE 0660, BS 5424, and RoHS requirements

Compatibility

Designed as an OEM-style IEC contactor replacement for 3-pole, 24 VDC coil motor control applications in industrial and commercial electrical panels.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for motor control circuits. De-energize and lock out all power to the control panel before removing or installing the contactor. Verify coil voltage supply matches the 24 VDC rating before energizing the circuit. Do not exceed the contactor's rated load or attempt to use it in reversing-duty applications without an appropriately rated reversing assembly.
