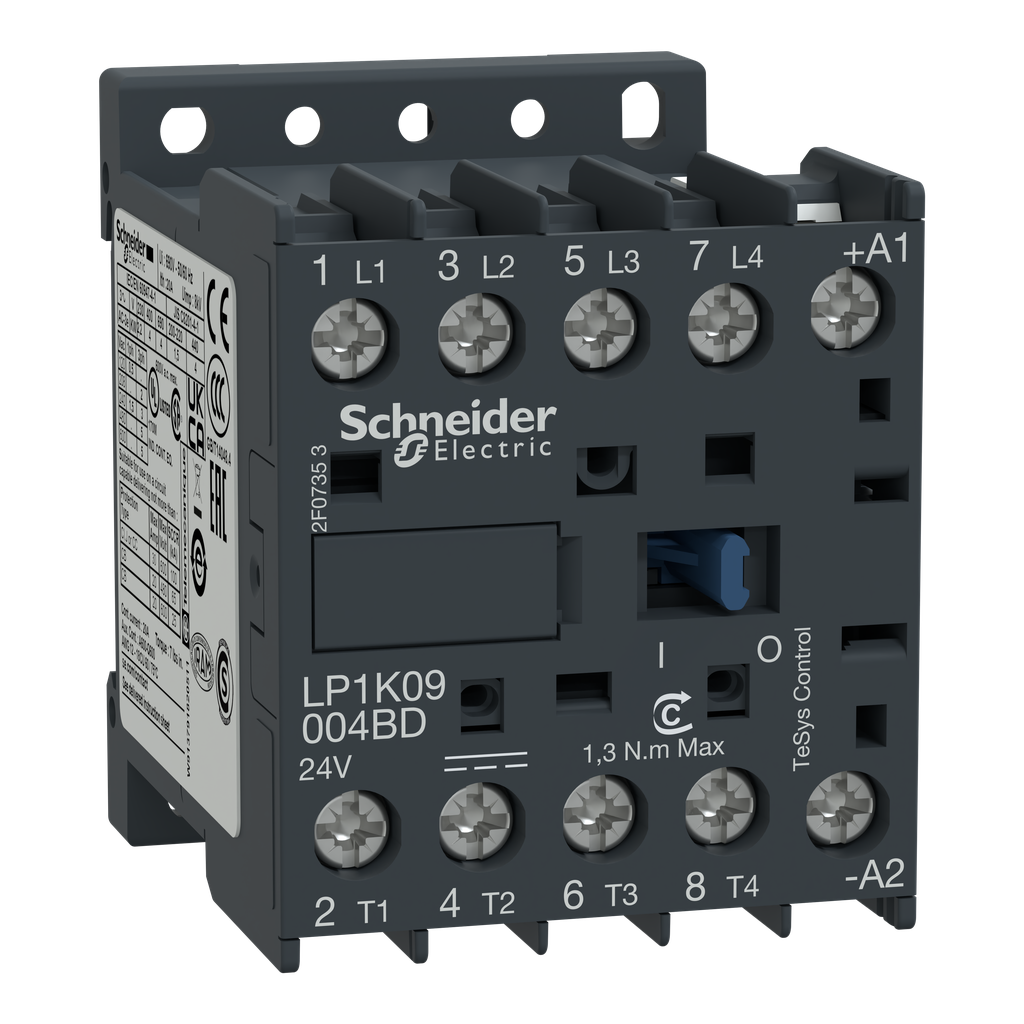

Schneider Electric LP1K09004BD Square D 600 VAC 9 Amp 4-Pole 4NO Screw Clamp Terminal Non-Reversing IEC Contactor

Product Description

Schneider Electric LP1K09004BD is a TeSys K contactor designed for non-inductive load control applications up to 20 amps at 690 volts AC-1. This model features a twenty-four volts DC coil and connections by screw clamp terminals, ensuring reliable performance in various environments. It can operate at rates of up to 600 cycles per hour and withstands environments up to fifty degrees Celsius. The compact design with a width of forty-five millimeters allows for easy DIN-rail mounting or screw fixing.

• 4 poles (4NO) configuration
• Multi standards certified including IEC, UL, and CSA
• Green Premium compliant (RoHS/REACH)

Product Highlights

This contactor ensures consistent performance for standard applications, providing durability and reliability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Warranty Description: Contractual Warranty: 18 months

Technical Specifications

• Catalog Number: LP1K09004BD
• Depth: 57 mm
• Width: 45 mm
• Height: 58 mm
• Weight: 0.50 lb
• Voltage: 690 Volt
• Operating Temperature: -25 to 50 degrees Celsius
• Applications: Resistive Load
• Country of Origin: Singapore
