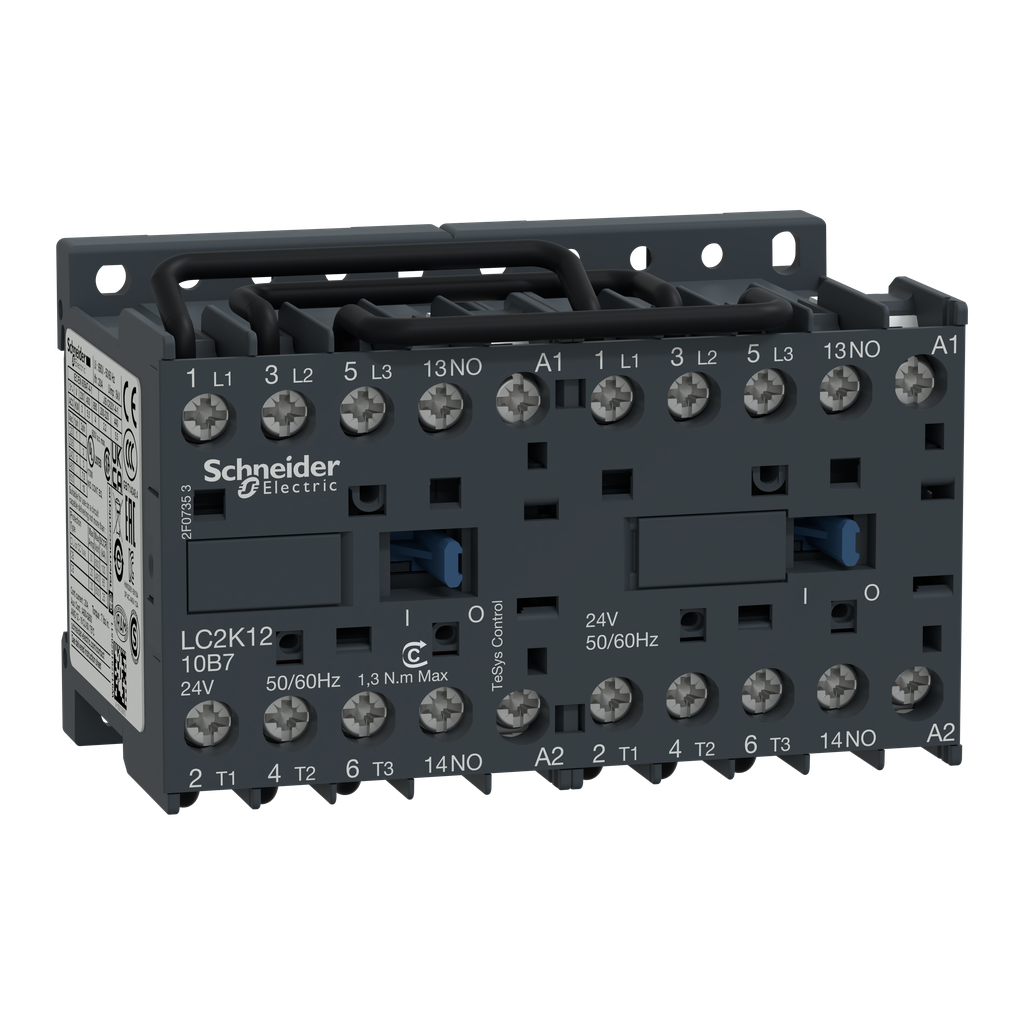

Schneider Electric LC2K1210F7 Full Voltage Reversing IEC Contactor 575 VAC 12 Amp 3-Pole 1NO

Product Description

The Schneider Electric LC2K1210F7 is a reversing contactor designed for motor applications. This 3-pole contactor is rated for twelve amps and can handle loads up to 5.5 kW at four hundred volts. It features a one hundred ten volt AC coil that operates at fifty or sixty hertz.

• Compact size for easy installation
• Includes mechanical interlock and pre-wired reversing circuit
• Complies with global standards including IEC and UL

Product Highlights

Ideal for simple motor applications, the LC2K1210F7 is DIN-rail compatible and connects with screw clamp terminals. This product promotes efficient motor control with its built-in auxiliary contacts.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2K1210F7
• Voltage: 690 Volt
• Coil Voltage: 110 V AC 50/60 Hz
• Contact Configuration: 1 NO
• Weight: 0.86 lb
• Country of Origin: France
• Warranty Length: 18 months
• Application: Motor control, Resistive load
• Standards: IEC, UL, CSA, CE, EAC
