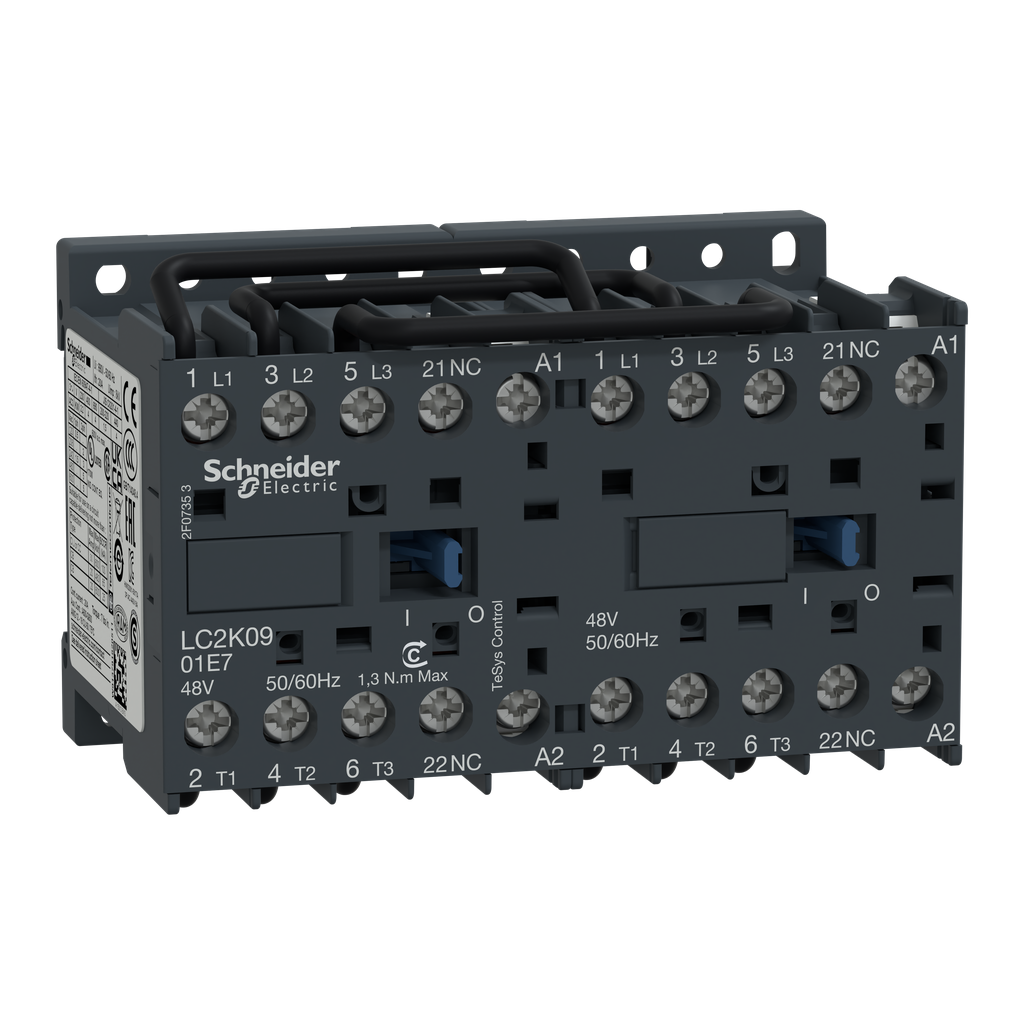

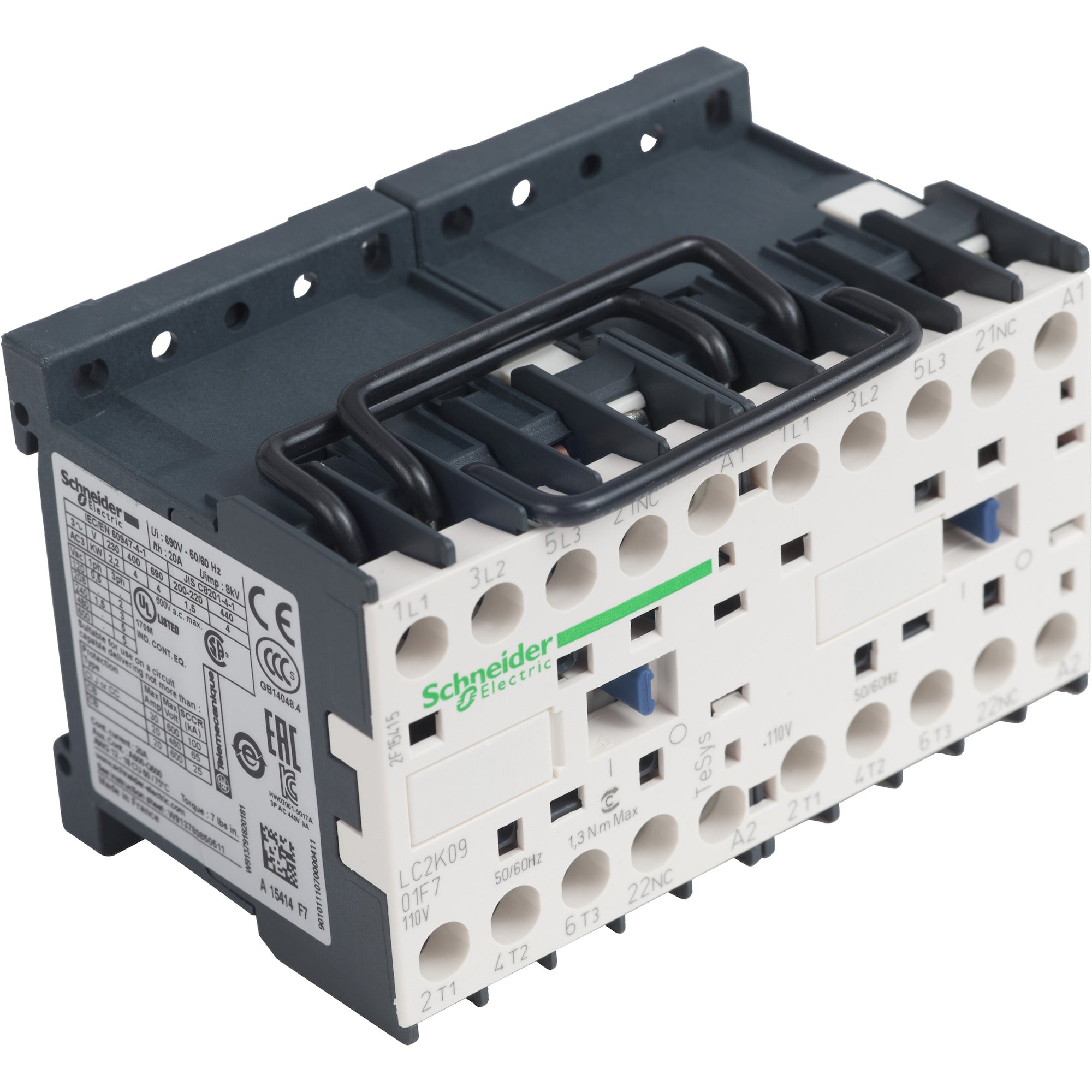

Schneider Electric LC2K0901F7 Square D 575 VAC 9 Amp 3-Pole 1NC Screw Clamp Terminal Full Voltage Reversing IEC Contactor

Product Description

Schneider Electric LC2K0901F7 is a three-pole reversing contactor designed for motor control applications. With a rated capacity of 9 amps and suitable for use up to four kilowatts at four hundred volts AC-3, this contactor features a standard coil voltage of one hundred ten volts at fifty or sixty hertz. It includes two normally closed auxiliary contacts and comes with a mechanical interlock and a pre-wired reversing circuit for ease of installation.

• Compact design suitable for DIN-rail mounting
• Complies with multiple international standards
• Includes a mechanical interlock for secure operation

Product Highlights

The LC2K0901F7 contactor is versatile and compact, making it an ideal choice for a variety of motor control tasks. It is certified Green Premium and adheres to RoHS and Reach standards, ensuring it meets environmental guidelines.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: LC2K0901F7
• Voltage Rating: 690 volts
• Coil Voltage: 110V AC 50/60Hz
• Contact Configuration: 3 NO, 1 NC
• Dimensions: 90 mm width x 58 mm height x 57 mm depth
• Weight: 0.86 lb
• Operating Temperature: -25 to 50 degrees Celsius
• Country of Origin: France
