Schneider Electric LC2K0610F7 Square D 575 VAC 6 Amp 3-Pole 1NO Screw Clamp Terminal Full Voltage Reversing IEC Contactor

Product Description

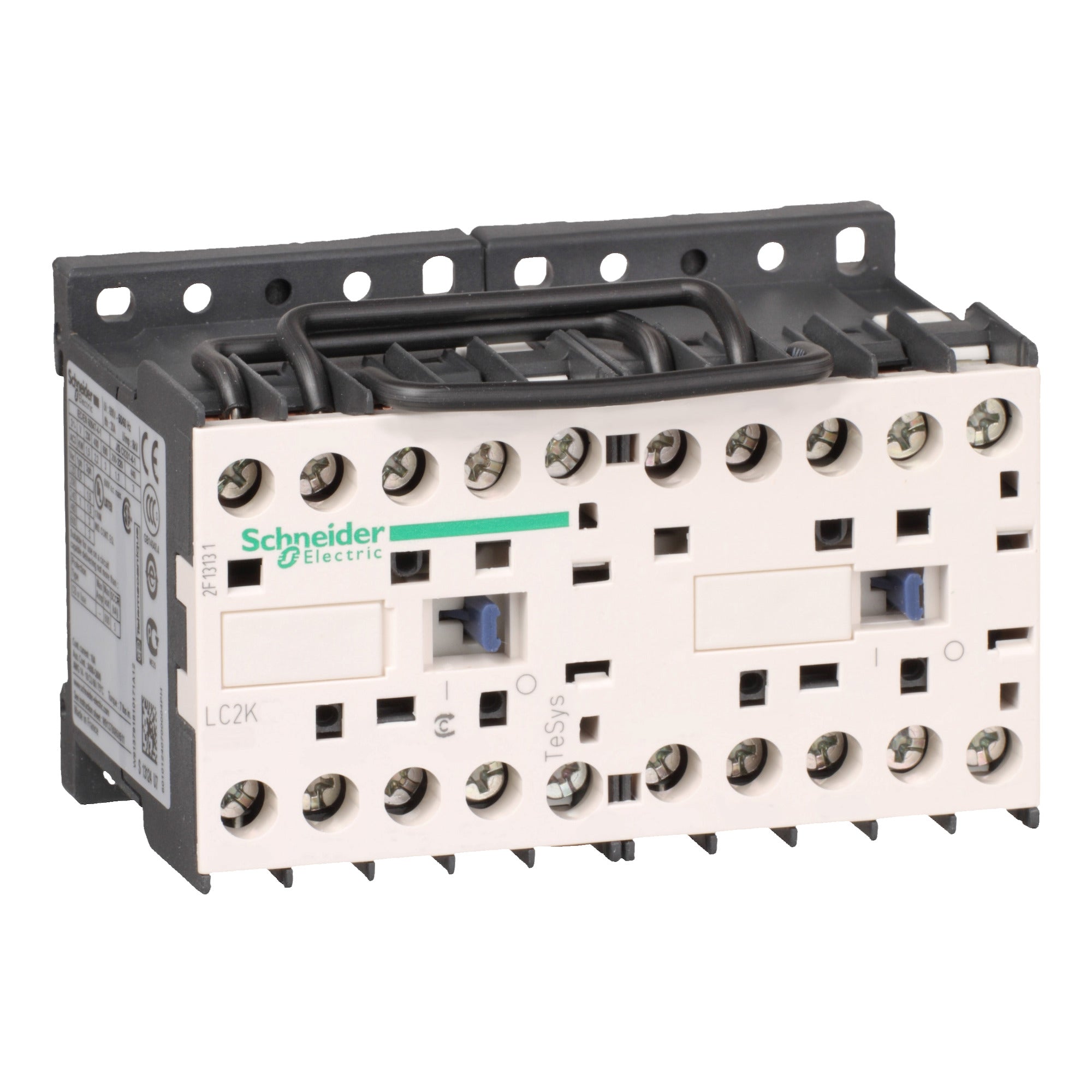

Schneider Electric LC2K0610F7 is a 3-pole reversing contactor designed for motor applications. It is rated at six Amps AC-3 and can handle power up to 2.2 kilowatts at four hundred volts. This contactor includes a one hundred ten volt fifty or sixty Hertz AC coil and two normally open auxiliary contacts. The unit is compact and can be mounted on DIN rails with screw clamp terminals for easy connection.

• Three-pole design suitable for motor control
• Rated for six Amps AC-3 at 2.2 kW @ 400V
• Includes a 110V 50/60Hz coil and two auxiliary contacts

Product Highlights

It features a mechanical interlock and a pre-wired reversing circuit. The LC2K0610F7 complies with multiple international standards including IEC, UL, and CSA, making it versatile for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2K0610F7
• Coil Voltage: 110 V AC 50/60 Hz
• Dimensions: Width 90 mm, Height 58 mm, Depth 57 mm
• Weight: 0.86 lb
• Voltage Rating: 690 Volt
• Operating Temperature: -25 to 50 degrees Celsius
• Contact Configuration: 1 NO
• Applications: Motor control
