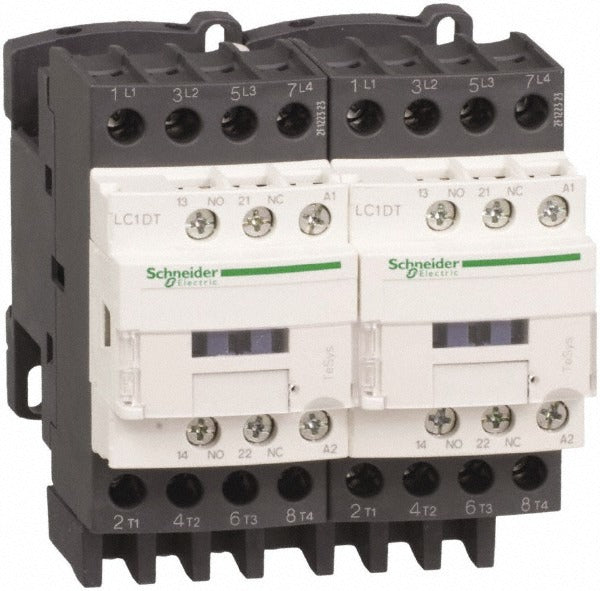

Schneider Electric LC2DT40G7 Iec Contactor 40A 4P

Product Description

The SCHNEIDER ELECTRIC LC2DT40G7 is a 4-pole IEC reversible contactor designed for industrial motor control and load-switching applications. It operates on a 120-volt AC coil at 50/60 Hz and is rated at 40 amps at 440 volts AC. The contactor includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration, making it suited for interlocking and reversing-duty circuits. Licensed electricians and industrial maintenance technicians install this device in motor control centers, control panels, and machine control enclosures where reversible motor operation is required.

This contactor is applied in reversible motor starter configurations across a range of industrial and commercial settings. Its 4-pole design allows control of three-phase loads with an additional switched pole, supporting isolation or auxiliary switching needs. The reversible action enables forward-and-reverse motor control without the need for additional mechanical interlocks. It carries multiple international certifications including UL Listed, CSA, CCC, GOST, DNV, GL, RINA, LROS, Bureau Veritas, and RoHS Compliant status, making it suitable for use across North American and international installations.

Key Features

• 4-pole reversible contactor configuration for forward-and-reverse motor control
• 40-amp rating at 440 volts AC for industrial load capacity
• 120-volt AC coil at 50/60 Hz for standard North American control voltage
• Integrated NC and NO auxiliary contact for interlocking and status signaling
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and RoHS Compliant
• Compact footprint at 90 mm wide, 98 mm deep, and 91 mm tall

Compatibility

Designed as an OEM-style IEC reversible contactor replacement for 4-pole motor control applications in industrial control panels and motor control centers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel before removal or installation of the contactor. Verify coil voltage matches the control circuit supply before energizing. Mechanical and electrical interlocking should be confirmed per the panel schematic before returning the motor circuit to service.
