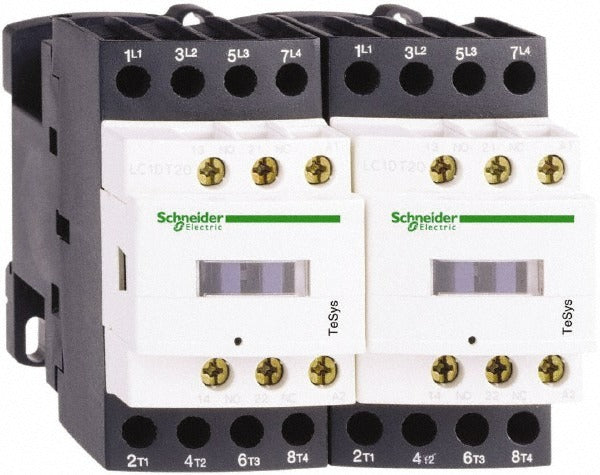

Schneider Electric LC2DT25G7 Iec Contactor 4P 25A 120V

Product Description

The SCHNEIDER ELECTRIC LC2DT25G7 is a 4-pole IEC contactor rated for 25 amps at 440 volts AC, with a 120-volt AC coil operating at 50/60 Hz. It is configured for reversible operation and includes both normally closed (NC) and normally open (NO) auxiliary contacts. This contactor is designed for industrial motor control and power switching applications and is installed by licensed electricians and industrial control technicians. It complies with UL 508, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and a broad range of international standards including CSA, CCC, and RoHS.

The LC2DT25G7 is suited for reversible motor starter circuits in commercial and industrial environments where IEC-rated contactors are specified. Its 4-pole configuration supports three-phase motor loads with an additional switched pole, and the reversible design enables forward and reverse motor direction control within a single contactor assembly. It measures approximately 3.35 inches in height, 3.54 inches in width, and 3.54 inches in depth, making it compatible with standard DIN-rail and panel-mount enclosures common in motor control centers and control panels.

Key Features

• 4-pole reversible contactor for forward and reverse motor control
• 25-amp rating at 440 volts AC for industrial motor switching
• 120-volt AC coil at 50/60 Hz for standard North American and international control circuits
• NC and NO auxiliary contact configuration included
• Certified to UL 508, UL Listed, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and RoHS Compliant
• Compact footprint suitable for panel and motor control center installation

Compatibility

Designed as an IEC-style contactor replacement for 4-pole reversible motor starter applications requiring a 120-volt AC coil and 25-amp contact rating at 440 volts AC.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC and applicable local codes. Disconnect and lock out all power sources before removing or installing the contactor. Verify coil voltage, pole count, and contact configuration match the existing circuit design before energizing. Do not exceed the rated amperage or voltage on any pole.
