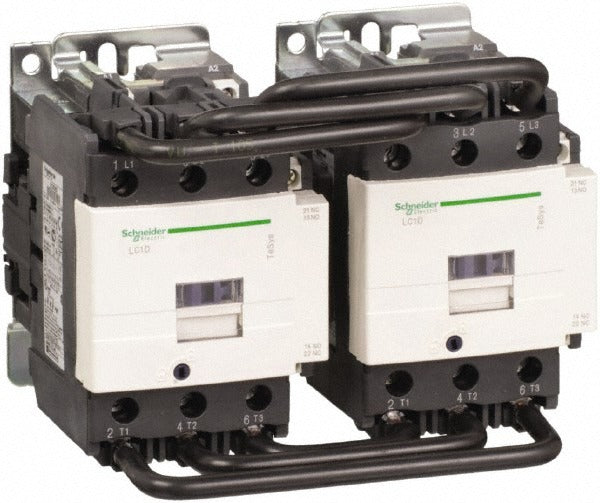

Schneider Electric LC2D80G7 Iec Reversible Contactor 80A

Product Description

The SCHNEIDER ELECTRIC LC2D80G7 is a 3-pole IEC reversible contactor rated for 80 amps at 440 volts AC, designed for motor control and power switching applications in industrial and commercial electrical systems. The coil operates at 120 volts AC at 50/60 Hz, making it compatible with standard North American control voltage circuits. It includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration, which supports interlocking and feedback functions in reversing motor starter assemblies. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The LC2D80G7 is suited for reversible motor starter applications where forward and reverse motor rotation control is required. It is commonly installed in motor control centers, panel boards, and standalone enclosures in commercial and industrial facilities. The reversible action allows the contactor to be used as part of a two-contactor reversing assembly for three-phase motor loads. Its IEC design and broad certifications make it applicable across domestic and international projects.

Key Features

• Reversible contactor action supports forward and reverse motor control configurations
• 80 amp rating at 440 volts AC for high-current three-phase motor loads
• 120 volt AC coil at 50/60 Hz matches standard North American control circuits
• NC and NO auxiliary contacts included for interlocking and control feedback
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and additional international standards
• 3-pole configuration for three-phase power switching

Compatibility

Designed as an IEC-style reversible contactor for use in three-phase motor control applications requiring 80 amp capacity and a 120 volt AC control coil. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before mounting, wiring, or servicing the contactor. Verify coil voltage and load amperage ratings match the application before energizing. When used in a reversing starter assembly, ensure proper mechanical and electrical interlocking is in place to prevent simultaneous closure of both contactors.
