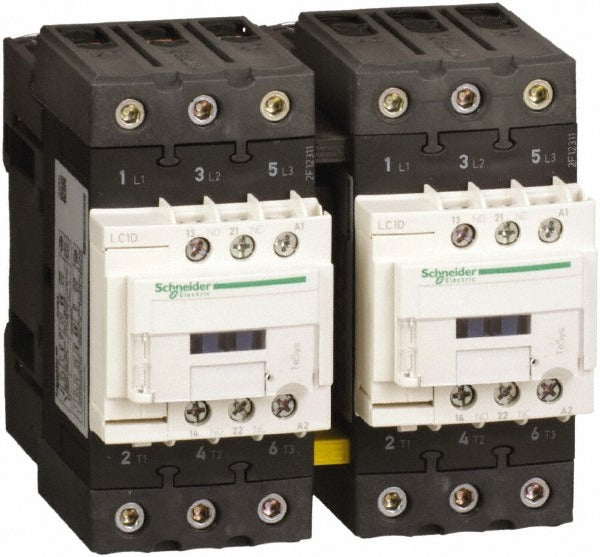

Schneider Electric LC2D65AG7 Iec Reversible Contactor 65A

Product Description

The SCHNEIDER ELECTRIC LC2D65AG7 is a 3-pole IEC reversible contactor rated at 65 amps at 440 volts AC with a 120-volt AC coil operating at 50/60 Hz. It is designed for motor control and switching applications in industrial and commercial electrical distribution systems. The contactor includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration, making it suitable for reversing starter assemblies. Licensed electricians and industrial maintenance technicians typically install this device in motor control centers, panel boards, and standalone enclosures.

This contactor is used in applications requiring reversible motor control, such as conveyor systems, pump stations, and industrial machinery drives. The reversible configuration allows forward and reverse motor operation when wired into an appropriate control circuit. It is rated for use on 50 Hz and 60 Hz power systems, making it suitable for both North American and international installations. The included NC and NO auxiliary contacts support interlocking and status signaling in control circuits.

Key Features

• 3-pole design rated at 65 amps at 440 volts AC
• 120-volt AC coil rated for 50/60 Hz operation
• Reversible action for forward and reverse motor control
• Auxiliary contact configuration includes both NC and NO contacts
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-4-1
• Compact footprint at 5.7 inches height, 6.4 inches width, and 7.8 inches length

Compatibility

Designed as an OEM-style IEC reversible contactor for use in 3-phase motor control circuits requiring a 65-amp, 3-pole configuration with a 120-volt AC coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the circuit before mounting or wiring the contactor. Verify coil voltage and amperage ratings match the application before installation. Reversing contactors require proper interlocking to prevent simultaneous energization of both directions.
