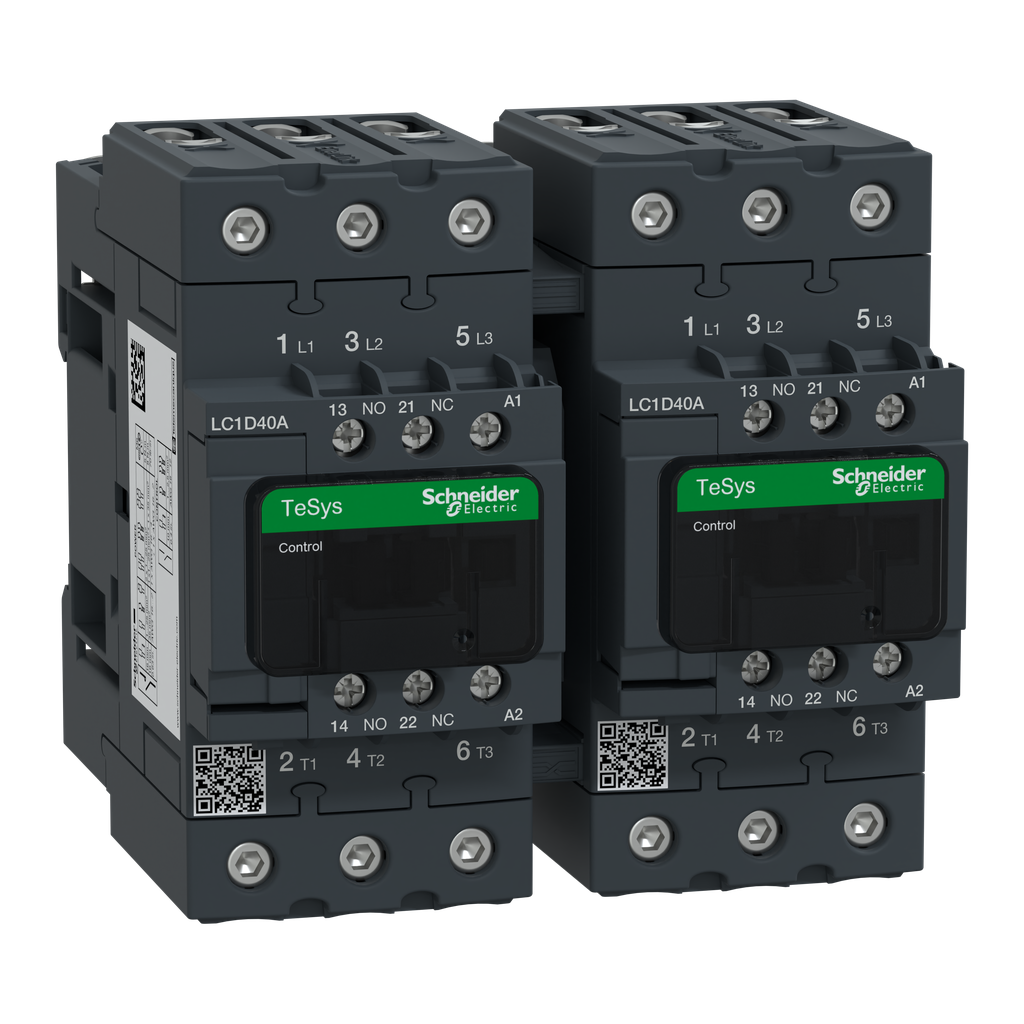

Schneider Electric LC2D40AG7 TeSys D Reversing Contactor 40 Amp 575 VAC

Product Description

The Schneider Electric LC2D40AG7 is a 3-pole reversing contactor designed for motor applications. This device is rated for 40 amps AC-3 and can handle loads up to 18.5 kilowatts at four hundred volts. It features a 120V 50/60Hz AC coil and includes two normally open and two normally closed auxiliary contacts. The contactor has a mechanical interlock ensuring reliable performance in various conditions.

• Rated for 40A AC-3 with 18.5kW at 400V
• Includes 120V AC coil and auxiliary contacts
• Compact design suitable for DIN-rail mounting

Product Highlights

The LC2D40AG7 is compact and durable, certified to multiple international standards, including IEC and UL. It has a pre-wired reversing circuit for easy installation and operation. The contactor is designed for high electrical durability, rated for over 1.6 million cycles at full load.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2D40AG7
• Voltage: 300 Volt
• Coil Voltage: 120 V AC 50/60 Hz
• Weight: 1.87 kg
• Dimensions: 119 mm (Width) x 122 mm (Height) x 120 mm (Depth)
• Contact Configuration: 2 NO + 2 NC
• Certifications: CSA, UL, IEC
• Applications: Motor control; resistive load
