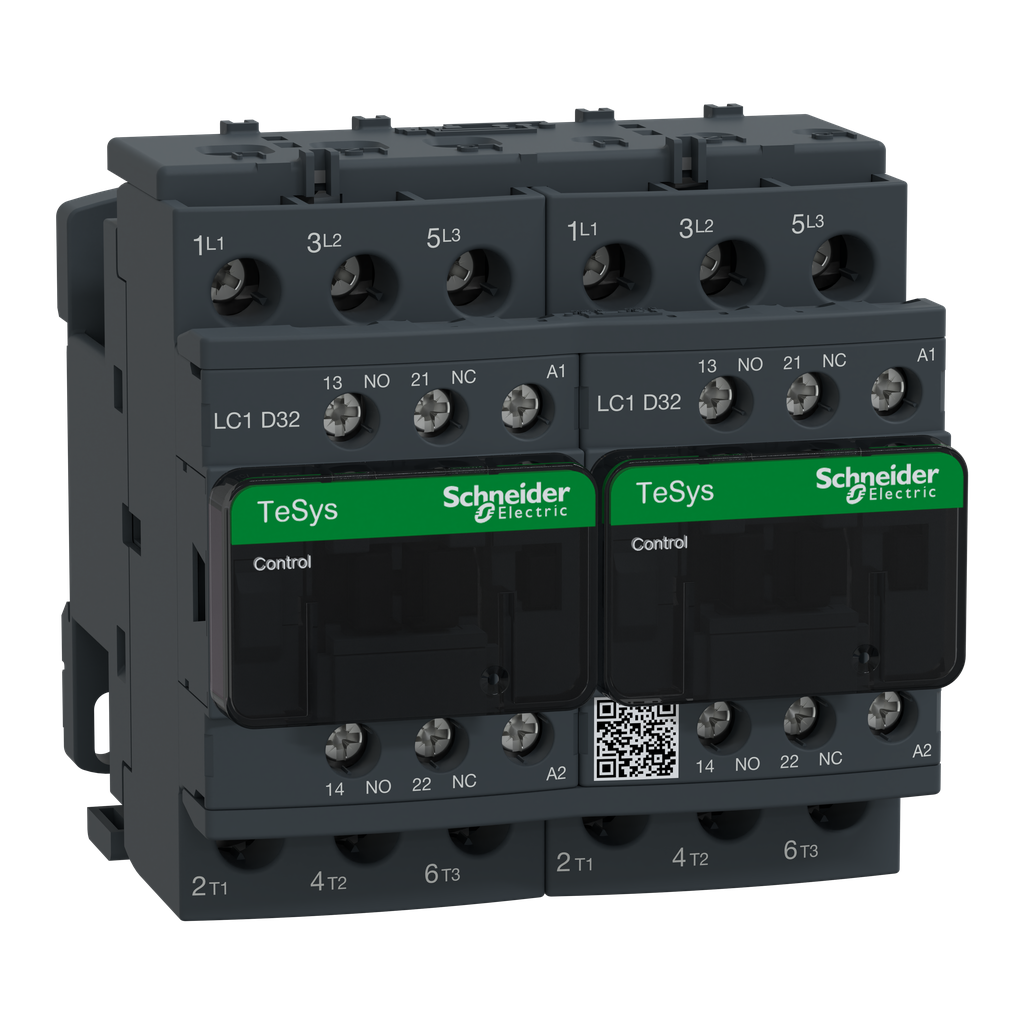

Schneider Electric LC2D32G7 Square D 575 VAC 32 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Reversing IEC Contactor

Product Description

The Schneider Electric LC2D32G7 is a full voltage reversing IEC contactor designed for effective integration in control systems. It is well-suited for creating motor starters for various applications. This contactor offers straightforward setup and compact dimensions. It is engineered for both horsepower and kilowatt ratings, ensuring international compliance and versatility. The extensive range of accessible accessories allows users to customize the contactor to meet diverse installation needs.

• Suitable for motor control and resistive loads.
• Rated for 32 Amp with a voltage of up to 575 VAC.
• Multi-standard certifications including UL, CSA, GOST, and RoHS compliance.

Product Highlights

This contactor supports various control circuits and is ideal for industrial applications, ensuring reliability and quality in motor control tasks.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC2D32G7

Technical Specifications

• Type: Reversing contactor
• Voltage Rating: 575 VAC
• Current Rating: 32 Amp
• Dimensions: 85 mm (height), 90 mm (width), 92 mm (depth)
• Weight: 1.76 lb (0.797 kg)
• Coil Voltage: 120 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Certifications: UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS
