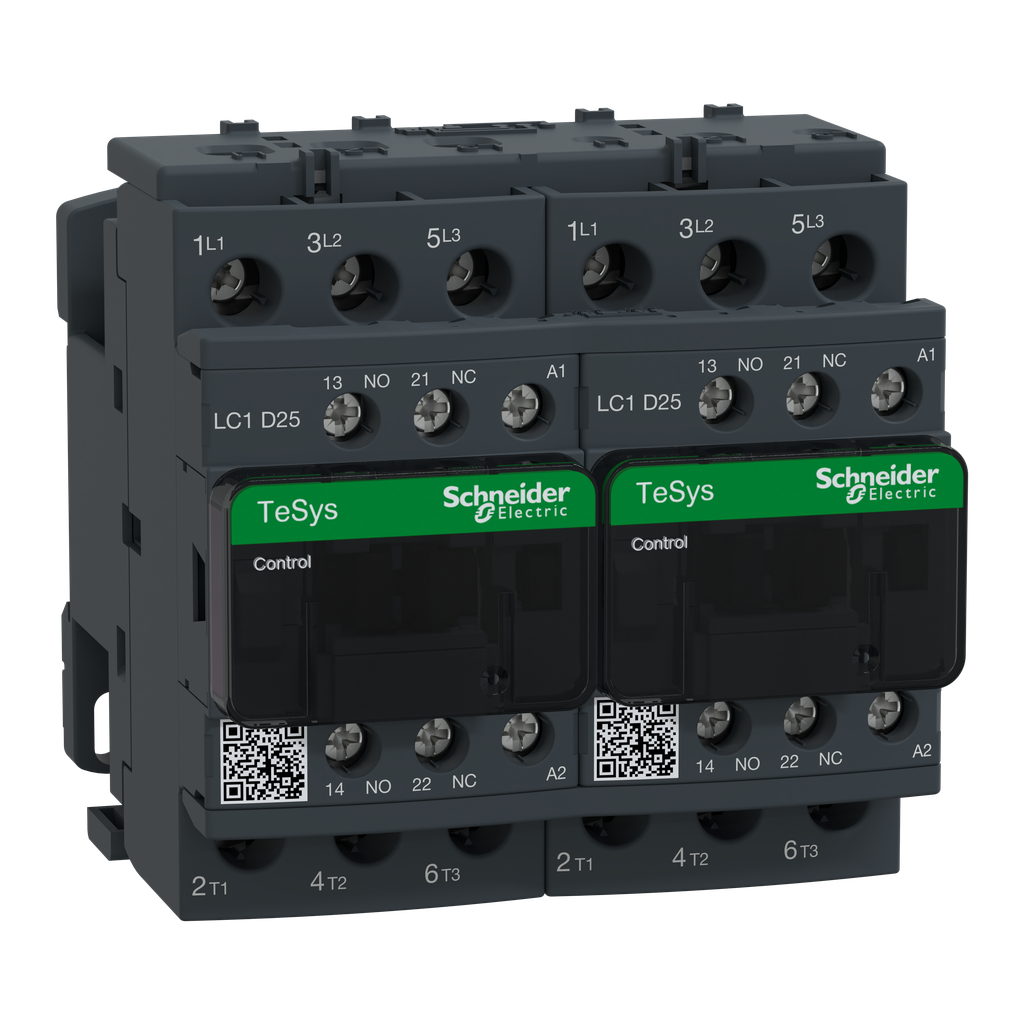

Schneider Electric LC2D25F7 Square D 575 VAC 25 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Reversing IEC Contactor

Product Description

The Schneider Electric LC2D25F7 is a three-pole TeSys D reversing contactor designed for motor applications. This contactor operates at a rating of twenty-five amps AC-3 up to eleven kilowatts at four hundred volts. It features a one hundred ten volt AC coil operating at fifty to sixty hertz and comes with two normally open and two normally closed auxiliary contacts, along with a mechanical interlock for safety. The device ensures long-lasting operation and reliability through its robust construction and advanced features.

• Rated for motor control applications up to eleven kilowatts.
• Includes a built-in mechanical interlock and pre-wired reversing circuit.
• Versatile for various mounting options including DIN rail and panel installation.

Product Highlights

This reversing contactor is engineered for high electrical durability and can handle up to two million cycles at a load of twenty-five amps AC-3 at four hundred forty volts. The design also ensures easy access to coil and auxiliary contacts, promoting straightforward installation and maintenance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2D25F7
• Voltage Rating: 575 VAC
• Current Rating: 25 Amp
• Coil Voltage: 110 V AC, 50/60 Hz
• Contact Configuration: 1 NO + 1 NC
• Weight: 1.74 lb
• Dimensions: 85 mm (height) x 90 mm (width) x 92 mm (depth)
• Country of Origin: Indonesia
