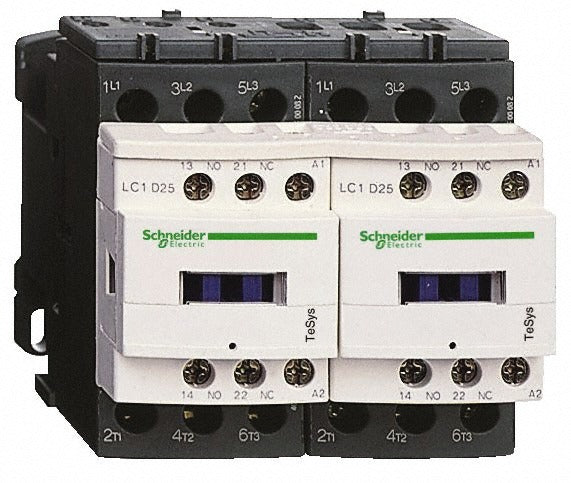

Schneider Electric LC2D18G7V Iec Contactor 3 Pole 18A 120V

Product Description

The SCHNEIDER ELECTRIC LC2D18G7V is a 3-pole IEC contactor rated for 18 amps at 440 volts AC, designed for reversible motor control applications. The coil operates on 120 volts AC at 50/60 Hz, making it compatible with standard North American control circuits. An integrated auxiliary contact block provides both a normally closed (NC) and normally open (NO) contact configuration for interlocking, signaling, or status feedback in the control circuit. Electricians and industrial controls technicians install this contactor in motor starters, reversing drive panels, and machine control enclosures where IEC-rated components are specified.

This contactor is suited for reversible three-phase motor control in light industrial and commercial applications. The reversible action allows forward and reverse motor operation through a single contactor assembly, reducing panel space and wiring complexity. It is a direct-fit IEC-style component for new builds and retrofit control panels where a 3-pole reversing contactor with auxiliary contacts is required. The 120-volt coil voltage is a common choice in North American industrial control wiring schemes.

Key Features

• 3-pole reversible contactor rated 18 amps at 440 volts AC
• Coil voltage: 120 volts AC at 50/60 Hz for compatibility with standard control circuits
• Integrated NC and NO auxiliary contact configuration for interlocking and status signaling
• Reversible action supports forward and reverse motor operation in a single unit
• Meets multiple agency standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, and RoHS Compliant
• Compact footprint: 3.7 inches height, 4.5 inches width, 5.5 inches depth

Compatibility

Designed as an IEC-style reversing contactor for use in 3-pole motor control and reversing starter assemblies requiring a 120-volt AC coil and integrated NC/NO auxiliary contacts.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements and local codes. Disconnect and lock out all power to the control panel before removing or installing the contactor. Verify coil voltage, pole rating, and auxiliary contact configuration match the existing circuit design before energizing. Do not exceed the published amperage rating for the application.
