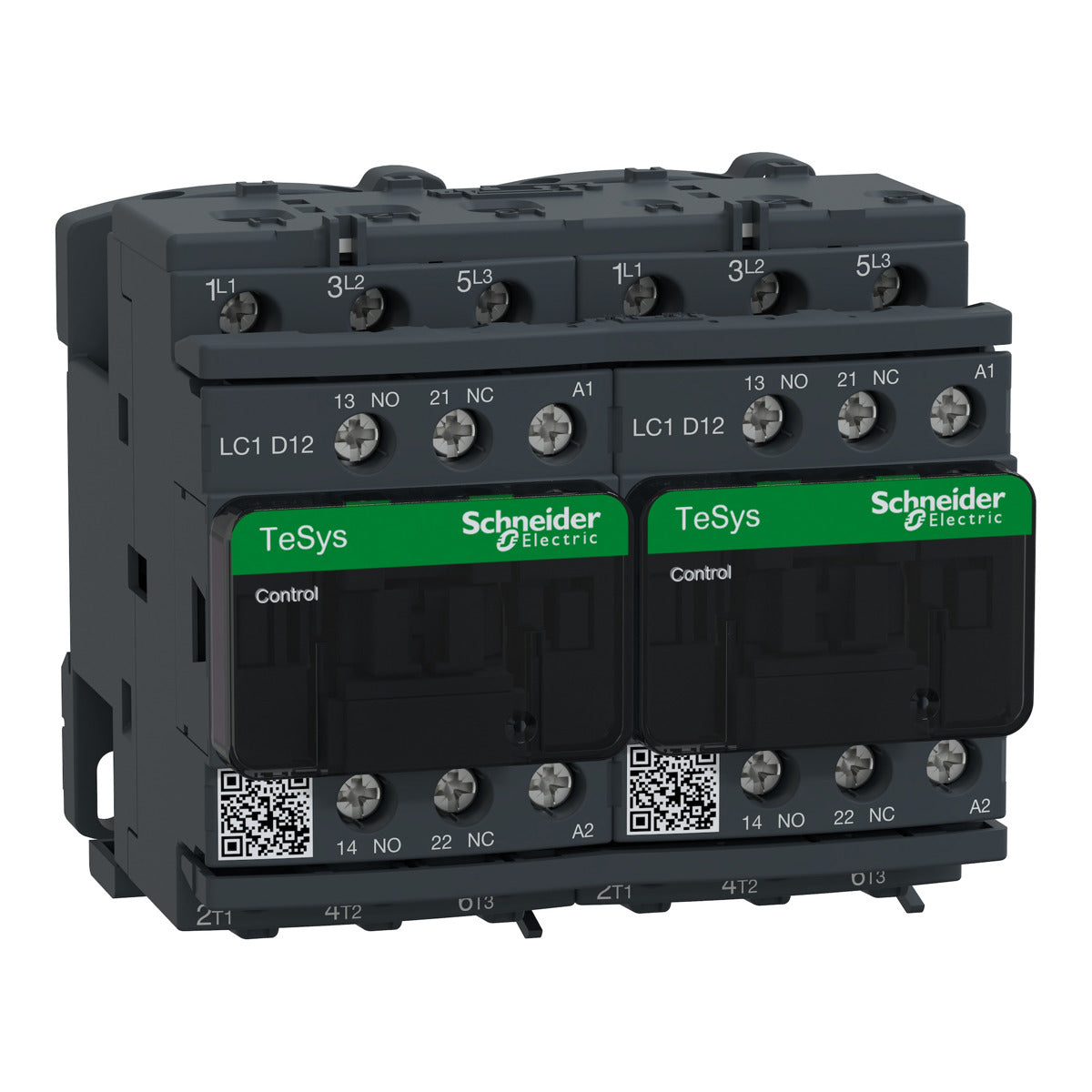

Schneider Electric LC2D12F7 TeSys Deca Reversing Contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V AC coil

Product Description

The Schneider Electric LC2D12F7 is a 3-pole TeSys D reversing contactor designed for motor control in various applications. It operates at a current rating of twelve amperes, suitable for AC-3 load with a maximum power of five point five kilowatts at four hundred volts. This model includes a coil voltage of one hundred ten volts at fifty or sixty hertz and features two normally open and two normally closed auxiliary contacts. The LC2D12F7 is built to provide reliability in industrial settings.

• Rated for 12A AC-3 with a maximum of 5.5kW at 400V
• Includes 110V AC coil and pre-wired reversing circuit
• Compact design, ideal for DIN-rail and panel mounting

Product Highlights

This reversing contactor is constructed to endure demanding motor switched applications with high electrical durability, rated for up to two million cycles. Its robust structure supports high making and breaking capacities for electrical connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LC2D12F7
• Country of Origin: Indonesia
• Application: Motor control and resistive load
• Coil Voltage: 110 V AC 50/60 Hz
• Contact Configuration: 2 NO + 2 NC
• Warranty Description: 18 months contractual warranty
• Standards Compliance: DNV; CSA; CCC; UL; GL; LROS; BV; RINA; GOST; UKCA
• GTIN: 03389110385786
