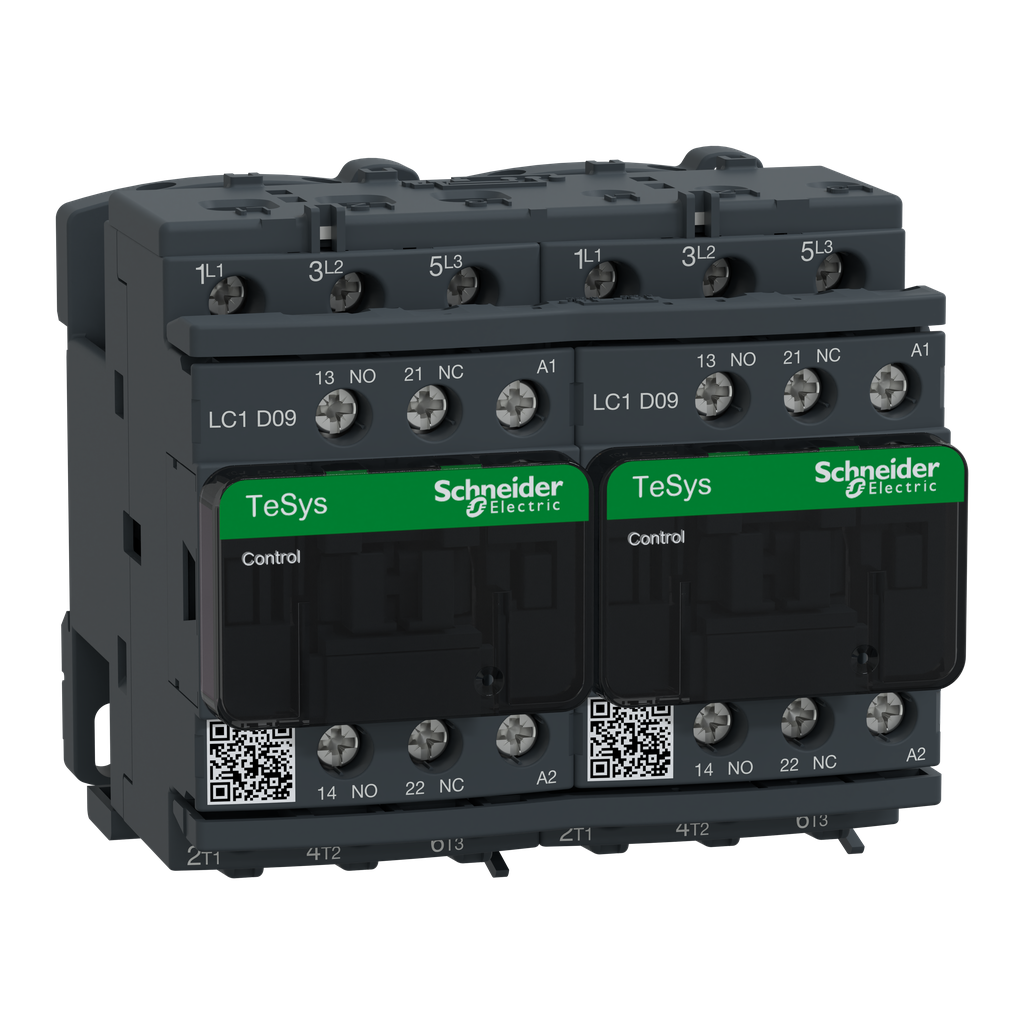

Schneider Electric LC2D09F7 Square D 575 VAC 9 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Reversing IEC Contactor

Product Description

The Schneider Electric LC2D09F7 is a three-pole reversing contactor designed for motor applications. It is rated for nine amperes at a voltage of five hundred seventy-five volts alternating current, meeting the demands of various industrial setups.

• Rated for motor applications up to four kilowatts at four hundred volts.
• Includes a one hundred ten volt alternating current coil suitable for fifty or sixty hertz.
• Designed with two normally open and two normally closed auxiliary contacts.

Product Highlights

The LC2D09F7 offers reliability and durability with features such as a mechanical interlock and pre-wired reversing circuit, ideal for seamless integration in control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2D09F7
• Voltage Rating: 575 VAC
• Current Rating: 9 Amp
• Coil Voltage: 110 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC
• Standards Compliance: IEC, UL, CSA, CCC, EAC, Marine
• Weight: 1.51 lb
• Dimensions: 90 mm width, 86 mm depth, 77 mm height
