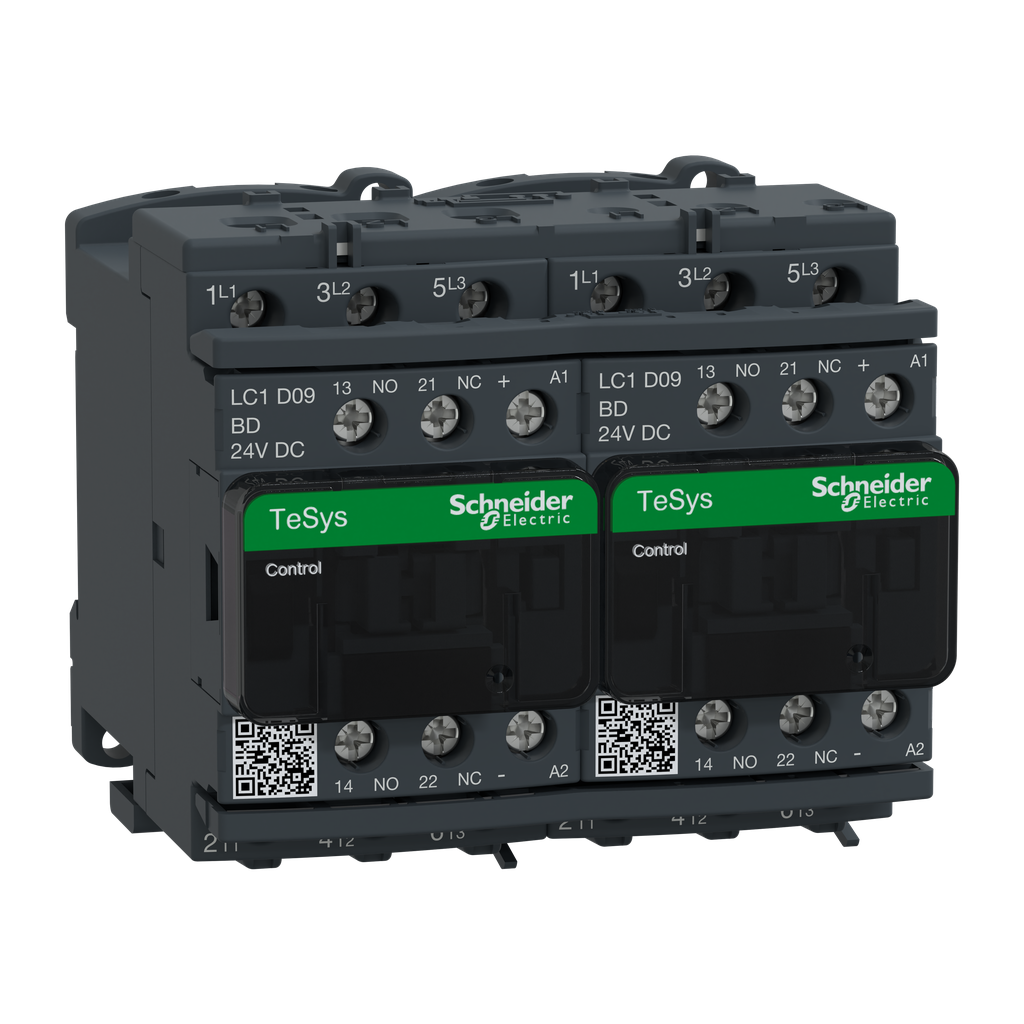

Schneider Electric LC2D09BD Square D 575 VAC 9 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Reversing IEC Contactor

Product Description

The Schneider Electric LC2D09BD is a 3-pole TeSys D reversing contactor. This contactor is suitable for motor applications and rated at 9A AC-3 4kW at 400V. It features a 24V DC coil and includes two normally open and two normally closed auxiliary contacts.

• 3-pole reversing contactor
• Compact design for DIN-rail mounting
• Includes a mechanical interlock for safety

Product Highlights

The LC2D09BD ensures reliable functioning in demanding conditions. Its compact size allows for easy integration into various control systems. The contactor is certified for multiple international standards, making it ideal for global use.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC2D09BD
• Voltage Rating: 575 VAC
• Coil Voltage: 24 V DC
• Dimensions: 90 mm width, 95 mm depth, 77 mm height
• Weight: 2.24 lb
• Operating Temperature: -20 to 60 degrees Celsius
• Electrical Durability: 2 million cycles at 9A AC-3 440V
• Application: Motor control for resistive load
