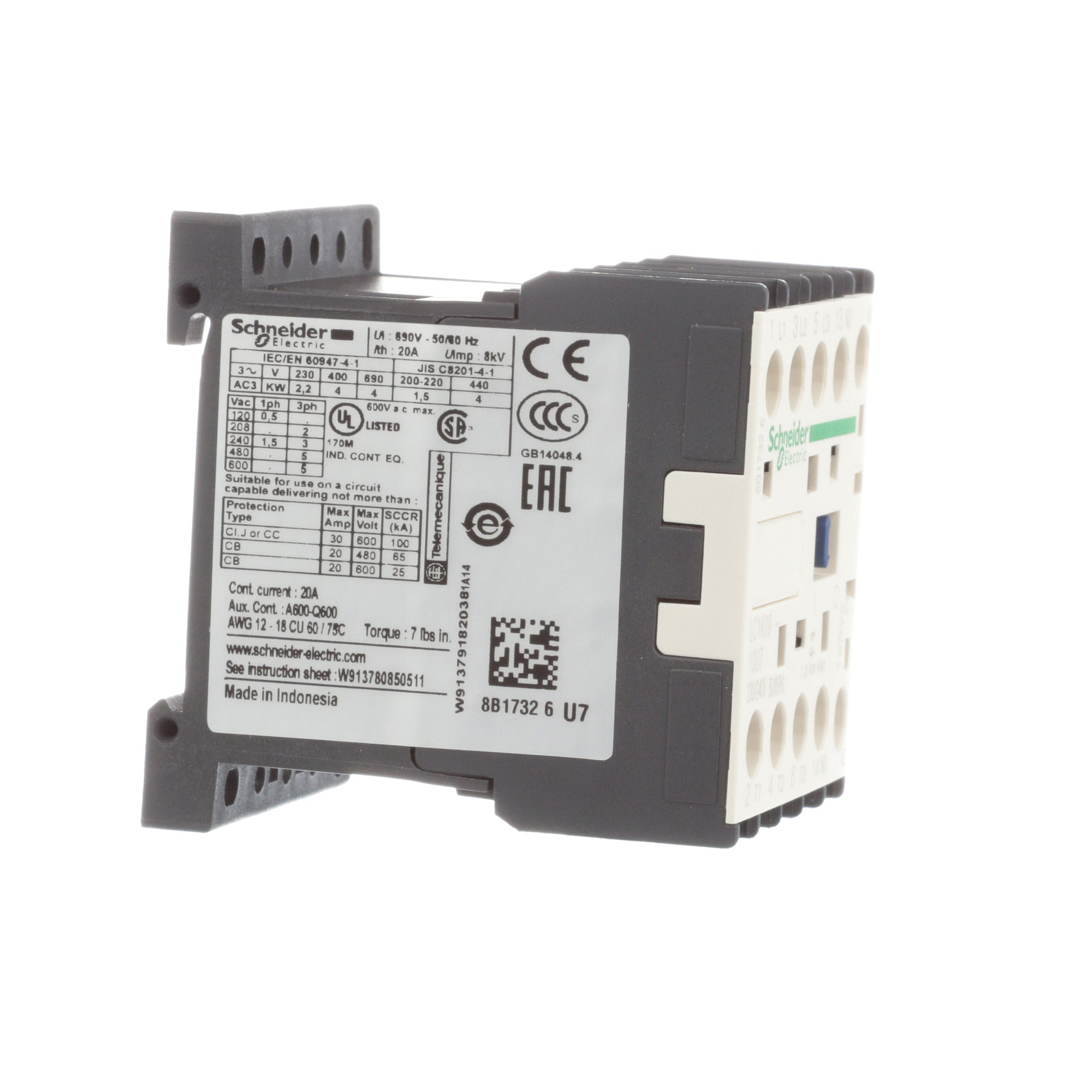

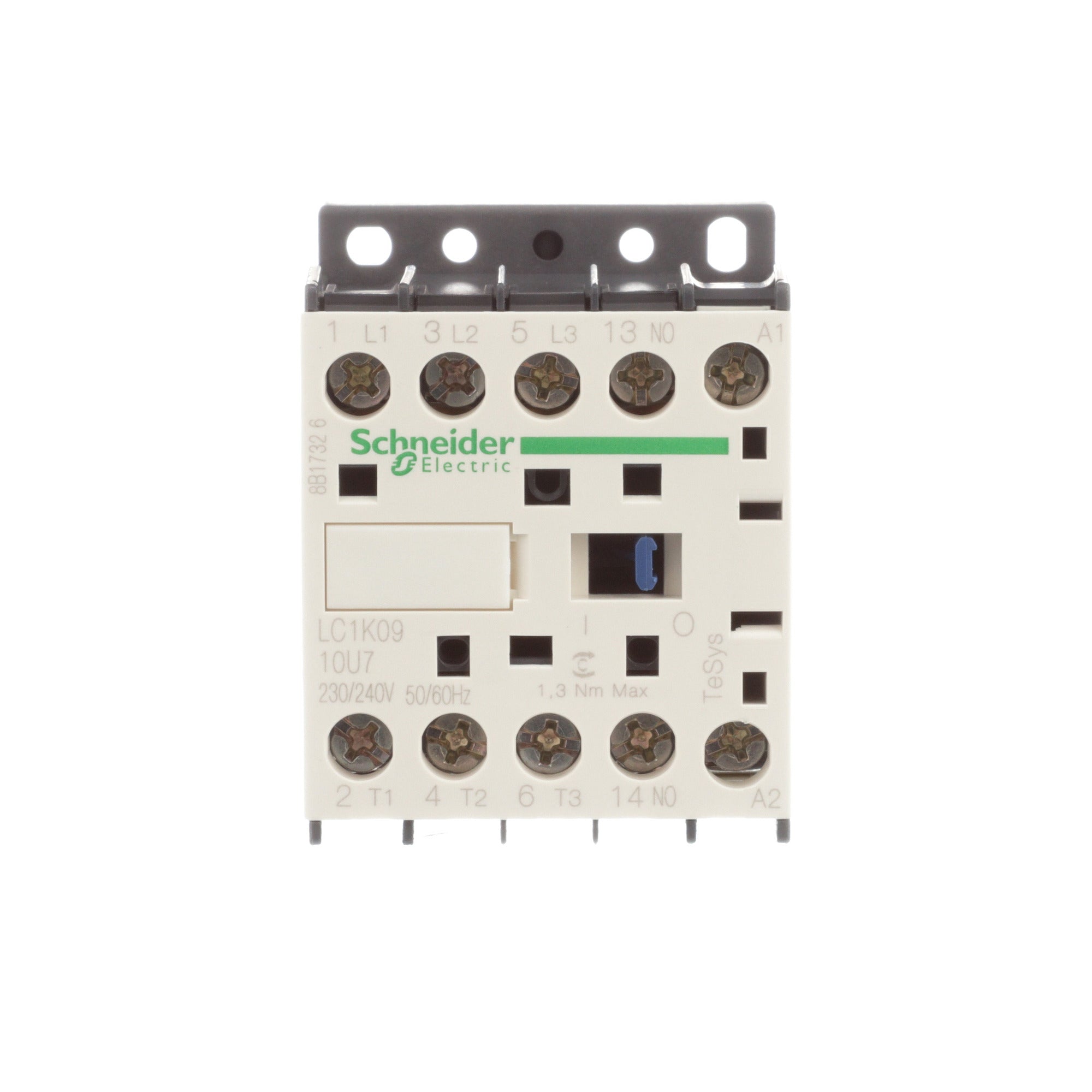

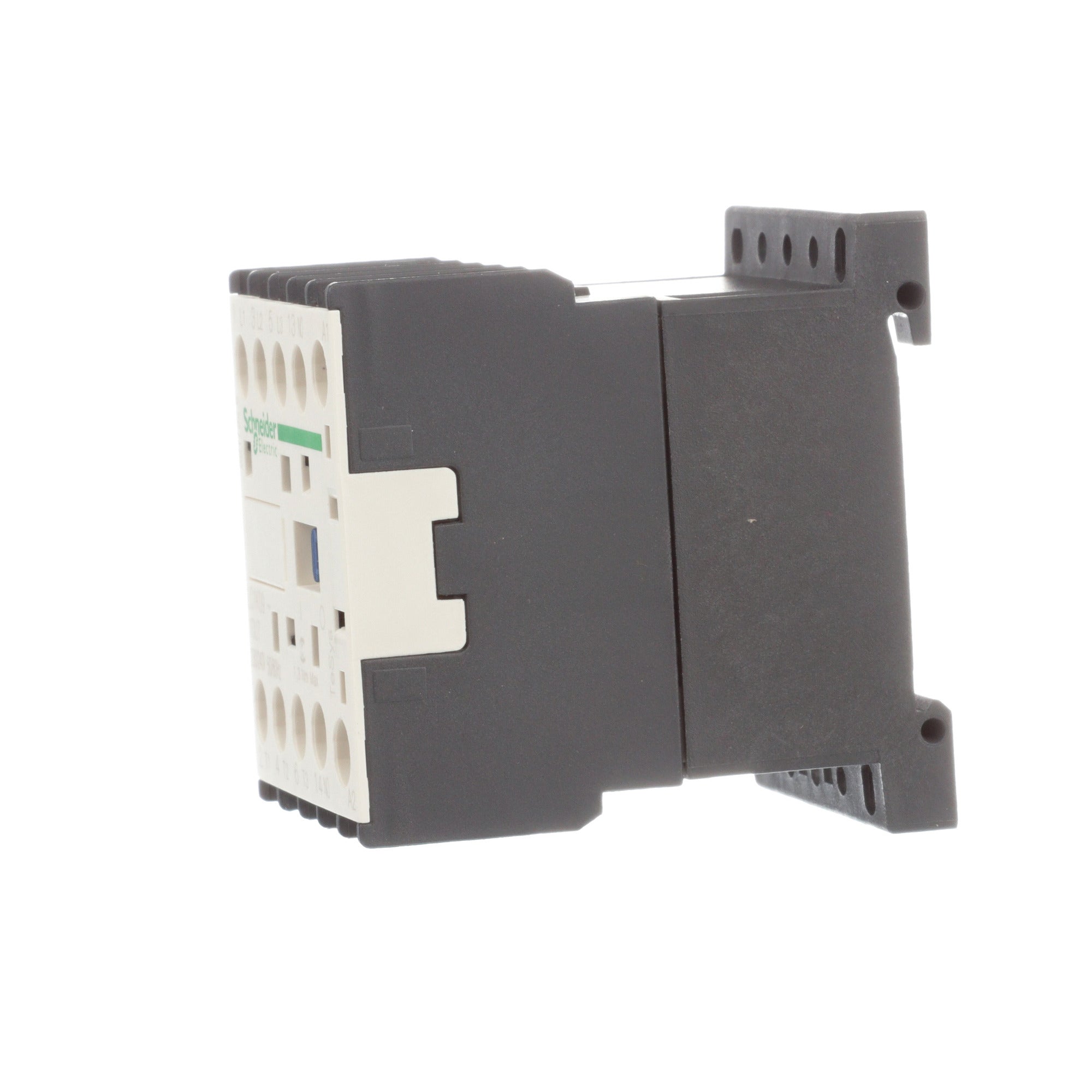

Schneider Electric LC1K0910U7 Square D 600 VAC 9 Amp 3-Pole 1NO Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1K0910U7 is a 3-pole IEC contactor designed for motor applications. This full voltage non-reversing contactor is rated for 9 Amps at 600 Volts AC. It is compatible with various standards including IEC and UL, ensuring reliable operation in industrial settings.

• Rated for up to 9 amps at 600 VAC
• Includes a 240V AC coil for effective motor control
• Compact design, suitable for DIN rail or panel mounting

Product Highlights

This contactor features a single normally open (1NO) auxiliary contact built in, making it ideal for straightforward motor applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: LC1K0910U7
• Coil Voltage: 230 to 240V AC at 50/60Hz
• Rated Current: 9A AC-3, 4kW at 400V
• Contact Configuration: 1 NO, 3 NO
• Width: 45 mm
• Depth: 57 mm
• Height: 58 mm
• Country of Origin: Indonesia
