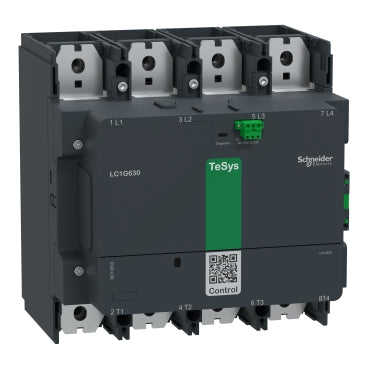

Schneider Electric LC1G6304EHEN Contactor High Power TeSys Giga 630 4 Pole NO AC-1 <=440V 1050A 48-130VAC/DC Coil

Product Description

The Schneider Electric LC1G6304EHEN is a high power contactor designed for AC-1 applications. It features four poles, suitable for operational capacities up to 1050 Amperes at 440 Volts. The contactor includes a wide-range electronic coil that operates within 48 to 130 Volts AC or DC, ensuring low consumption and high efficiency.

• Durable design with mechanical durability lasting 5 million cycles
• Can be maintained without disconnecting cables
• Supports temperatures from -25C to 60C

Product Highlights

This contactor is ideal for demanding applications that require reliability and longevity. It has a Local Contact Wear Diagnosis feature for continuous monitoring and alerts. The mounting options are flexible, allowing installation in any quadrant.

Product Information

Standard Information

• Brand: Schneider Electric
• Application: Power switching

Technical Specifications

• Catalog Number: LC1G6304EHEN
• Coil Voltage: 48...130 V AC 50/60 Hz; 48...130 V DC
• Connection: Various, including push-in terminals and busbars
• Contact Configuration: 1 NO + 1 NC; 4 NO
• Mounting: Mounting Plate
• Country of Origin: Singapore
• Standards Certified: CE, CCC, cULus, EAC, and more
• Special Features: Built-in bidirectional peak limiting
